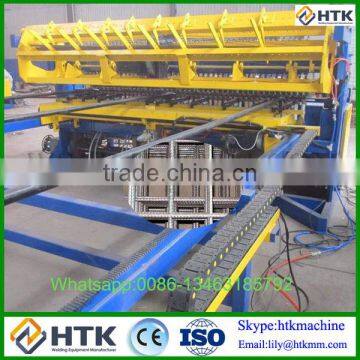

2017 Type Fully Automatic and Stable Roll Mesh Welding Wire Machine ( low price)
- 20 Set / Sets per Month
- Tianjin
- T/T L/C D/P D/A Credit Card PayPal
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- DOING supply photovoltaic solar panels recycling machine
- four-axis welding machine for commercial sink panel and bowl
- Double Platform Stainless Steel Kitchen Equipment Polishing Machine
- Photovoltaic solar panels recycling plant
- Solar panel recycling machine with high efficiency
Product Details
Place of Origin: | Hebei, China | Brand Name: | HTK | Model Number: | htk-2000 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Fully Automatic 2017 Type Fully Automatic and Stable Roll Mesh Welding Wire Machine ( low price)
1 . This line is used to produce mesh roll. The completed production line is composed by :
Technical Parameters
Type | DNW-1 | DNW-2 | DNW-3 |
Wire diameter | 2.5mm-5.0mm | 3.0-6.0mm | 2.0mm-5.0mm |
Aperture/pitch | 50mm-200mm | 50mm-200mm | 30mm-200mm |
Mesh width | Max.1.2m,1.5m, 2m | Max. 2m-3.0m | Max.1.2m,1.5m, 2m, 2.5m |
Motor | 5.5kw | 7.5kw | 5.5kw |
Welding speed | Max.75 rows/min | Max.80 rows/min | Max.80rows/min |
Transformer | 120kva*3 | 160kva*7 | 120kva*5 |
Weight | 2.6T | 4T | 3T |
2. Production Line Features :
a) For the Wire Mesh Welding Machine, the line wire feeding is from coil automaticly, and cross wire feeding is pre-cut wire.
b) Before line wire feeding into welding machine, it is feeding to line wire straightening system, which guarantee the line very straight .
c) That kinds of rolling mesh machine you sent to us is our old model. According our many trials, the Rolling Mesh Machine I offer you is the best . It is very easy to discharge the finished mesh roll. Many of this rolling mesh machine have been to many countries.
d) Our machine adopts PLC control system instead of circuit board , which reduces the fault.
Machine Description
1. Both of the longitude wire and cross wire are fed from wire coils automatically.
2. The raw material is suitable for black wire, galvanized wire or stainless steel wire.
3. The middle cutter and sider cutters can be adjusted randomly to make two mesh rolls at same time.
4. The mesh roll length can be set by counter switch on the control panel.
5. The welding transformers have 8 degrees and can be adjusted for different wire diameters.
6. The welding time and welding current can be adjusted on the control panel to guarantee welding solid.
7. It has advantages such as reasonable design, low noise, stable working, easier operation and electro-magnetism speed adjustment.
Guarantee time: 18 months.
Spare parts: If non-quick wear part is broken, we can change for free.Installation&training:
Complete installation instructions&circuit diagram.
Send best engineer to your fatory for installation&training.
After-sales:
24 hours support service.
