Home > Products > Wire Mesh Welding Machine > HTK welded wire mesh machine
HTK welded wire mesh machine
- 2 Set / Sets per Month
- Tianjin port
- T/T D/P D/A Credit Card
Product Details
Place of Origin: | Hebei, China | Brand Name: | CY | Model Number: | DNW-4 |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

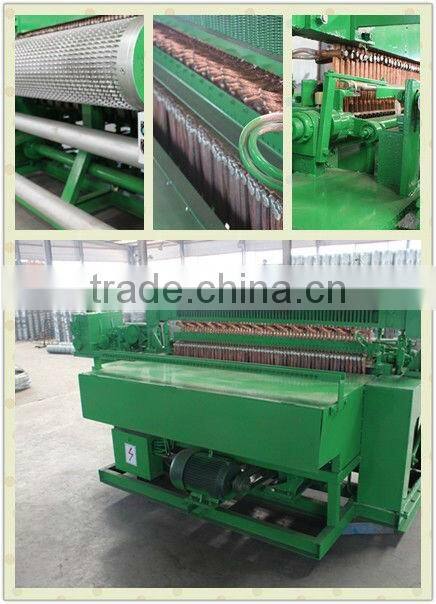

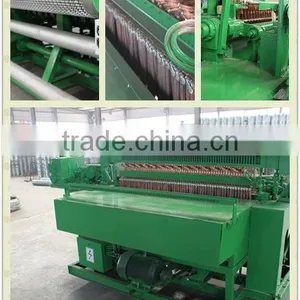

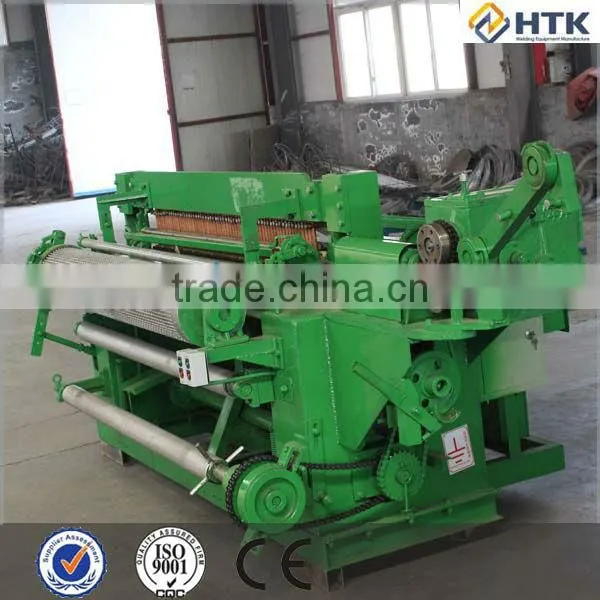

HTK welded wire mesh machine
Feature:Welded wire mesh machine adopts synchronous power electronic technology, Weft wire should be after straightening straightening cutting machine in the blanking mechanism, it adopts stepper motor control, material from the hopper automatically, and blanking uniformly and accurately by the wire pull out of the whirlwind, mesh edge tidy, no cutting edge
Feeding of line wire:Continuous
Technical Parameters:
| DNW-4 |
Welding Width | 48“ |
Hole Size | 1/2″-2″ |
Wire Diameters | 0.6-1.5mm |
Welding Speed | ≤90times/min |
Power | 65KVA×4 |
Rate Voltage | 380v 50HZ |
Overall Dimension | 3.45×1.6×1.3m |
Note:Special type can be made according to client′s requirement
Specificate:high efficiency,save electricity,low noise,safety
The product is follow:
Hebei HTK Welding Equipment Manufacturing CO.,LTD
*The company registered capital of 500million ,wite two senior engineers,10senior technicians,more than 100employeers.
Advantage of HTK factory:
u We have professional engineer supervision
u The price preferential benefit
u Product quality assurance
u High production efficiency
u With credibility and protection
u Can visit the factory in person
u Good after sales service
