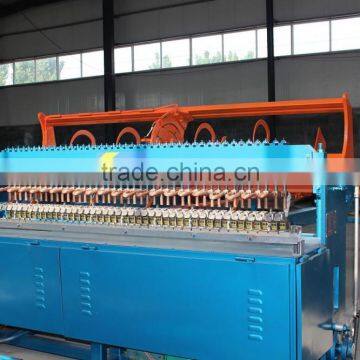

BV,ISO,SGS provide mesh welding machine price
Mesh welding machine price
Width:HTK-W1200mm
Wire dia:3.0-6.0mm
Power:120KVAx3
Warranty period:one years and best service
Feature:
1,Welded wire mesh machine is the most advanced wire welding machinery and electronics equipment
2,Welded wire mesh machine, welding smooth surface, diagonal error is small
3,Fence netting welded wire mesh machine is widely used in railway, highway guardrail nets, Bridges, high-rise buildings,such as welded mesh products.
Control System: Numerical control (touch screen)
Power System: Motor

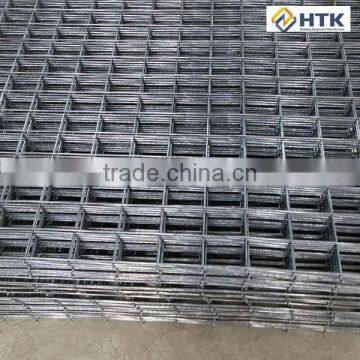

Application: Usually used in making coal mine supporting fence, mesh fence,high-rise building steel mesh, highway mesh fence, construction fence,and floor pouring fence.
Product Introduction:This equipment adopt synchronization control technique, The welding time and separate welding time are composed of PLC digital programming system with more intelligent. the welding current and time of every welding transformer can adjust. It has achieved autocomplete that the vertical wire by coil wire supply continuously and weft wire straightener and cutting and welding then place the order. Net systerm is controlled by servo motor,not only improve the precision of the mesh size,but also to ensure the distance adjustability between warp wire and weft wire.
Technical Parameter:
Type |
HTK-W1200mm |
Speed |
≤60row/min |
Voltage |
380V-50HZ |
Welding Wire Diameter |
3.0-6.0mm |
Power |
4.0KW |
Capacity |
120KVAx3 |
Warp wire spacing |
≥50mm |
Weft wire spacing |
≥50mm |
Warp form |
Precut wire |
Weft form |
Precut wire |
Hole size |
50mmx50mm can be adjusted |
PLC set |
Parameter setting/mesh specifications set/operation monitoring/welding control |
Wire straightener and cutting machine |
2 sets |
Total Power |
(120KVAx3+4.0)KW |
Auxiliary equipment |
Wire straightener and cutting machine |
Power consumption |
6 unit/hour |
Working life |
10years |
Welding material |
Galvanized wire/black wire/wire drawing |
Net system |
Cnc stepper motor control |
Welding point |
25 unit |
Rated Voltage |
120KVAx3 |
Welding electrode |
Picks chromium copper |
Machine color |
Orange and blue can be choose |
Weight |
1.5T |
Overall dimension |
2000(W)X1500(L)X1700(H)mm |
Packing and transportation:
1.Debugged in two parts for packaging machinery, plastic mold package with good conduct tray packaging. Including accessories, kit, pump, control cabinet (accessories and other details can contact me for more information).
2.We have our own freight forwarding companies and packaging company, you can also specify a freight forwarding company in accordance with the customer for shipping by our customs.
The best sales service:
1.After placing orders will be timely feedback to track the progress of related production, shipment, delivery and other production conditions.
2.In accordance with the stipulated time of shipment delivery, guaranteed delivery and supply capacity.
3.Encounter any quality problems can always contact us, we will promptly communicate timely replacement of the goods.
Our Factory introduction:
1.Hebei HTK Welding Equipment Manufacture Co., Ltd
2.We have 2 senior engineers,10 senior technicians,more than 100 employees
3.Our products: Field Fence and Field Fence Machine, Welded Wire Mesh Machine
4.Our certifications: ISO 9001:2000, BV ,SGS certification
5.Our Main Market:South Africa, Mongolia,Asia, Dubai
Contact Sales Manager:
Welcome to visit our factory.Pls inquiry me that you can lear more about our product.We have a direct factory is main on wire mesh and wire mesh machine.
Certificate:BV and ISO9001 profession certificate
