Home > Products > Welded Wire Mesh Panel Machine > Chicken cage mesh welding machine
Chicken cage mesh welding machine
- 2 Set / Sets per Month
- Xingang
- T/T L/C D/P D/A Credit Card PayPal
Product Details
| Place of Origin: | Hebei, China | Brand Name: | HTK | Model Number: | 004 |
| Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Chicken cage mesh welding machine
Performance characteristic:
This type design novel, structure reasonable, the operation simple is easy to study, the welding control section uses the advanced numeral to gather the integrated circuit. The control high efficiency part, control precision high, the welding reliably does not have burns side, the welding speed is quick also the side of latitude wire does not need to cut, the welding aperture may adjust in the certain scope.
Type use:
1.Structure purpose panels(3D panels, the geothermy mesh, flower room uses the net)
2.The railing, the building pours is of use the net.
The specifications of our products
DNW-1
Wire diameter | 1.4-2.3mm | Warp form | Wire coil |
Weft wire spacing | 50-200mm | Weft form | Wire coil |
Wrap spacing | 50-200mm | Rated voltage | 380V |
Welding width | 1200mm | Rated power | 50KVA x 2 |
Welding speed | 55times/min | Overall dimension | 2400 x 2400 x 1400mm |
Welding point | 25 | Weight | 2.2T |
DNW-2
Wire diameter | 2.8-4.5mm | Warp form | Wire coil |
Weft wire spacing | 50-200mm | Weft form | Wire coil |
Wrap spacing | 50-200mm | Rated voltage | 380V |
Welding width | 1200mm | Rated power | 120KVA x 2 |
Welding speed | 45times/min | Overall dimension | 2200 x 2400 x 1800mm |
Welding point | 33 | weight | 3.5T |
DNW-3
Wire diameter | 5.0-12mm | Wire diameter | 5.0-12mm |
Weft wire spacing | 25mm | Weft wire spacing | 25mm |
Warp spacing | 100-300mm | Warp spacing | 100-300mm |
Welding width | 2500mm | Welding width | 2500mm |
Welding speed | 25times/min | Welding speed | 25times/min |
Welding point | 26 | Welding point | 26 |
Warp form | Precut wire | Warp form | Precut wire |
Weft form | Precut wire | Precut wire | |
Rated voltage | 380V | Rated voltage | 380V |
Rated power | 180KVA x 13 | Rated power | 140KVA x 13 |
Overall dimension | 3200 x 6000 x 2650mm | Overall dimension | 2400x8000x2650mm |
Length | 11000mm | Length | 11000mm |

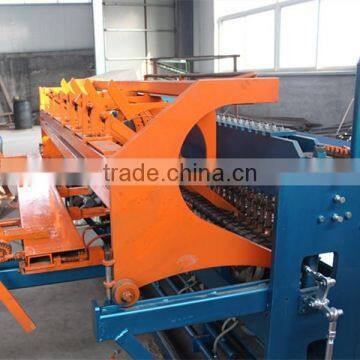

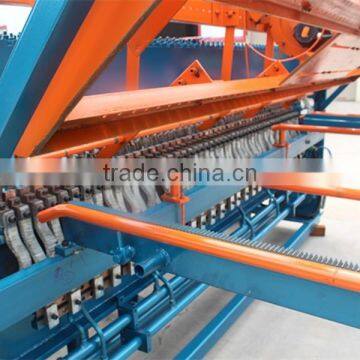

The more specific pictures of our machines
The profile of our factory
Contact Us
- Hebei HTK Welding Equipment Manufacture Co., Ltd.
- Contact nameMark Ma
- Phone86-0318-3552766
- AddressShijiazhuang City, Hebei Province, Ping'an Avenue, No. 158, zijing apartments, Block B, 19A06 Shijiazhuang,Hebei
-
