Control System: Numerical Control(touch screen)
Dynamic System: Electromotor
Usage of the machine: Can be used for highway guardrail net, fence net, construction net, high-rise building network, the production of coal mine supporting network, and other products.

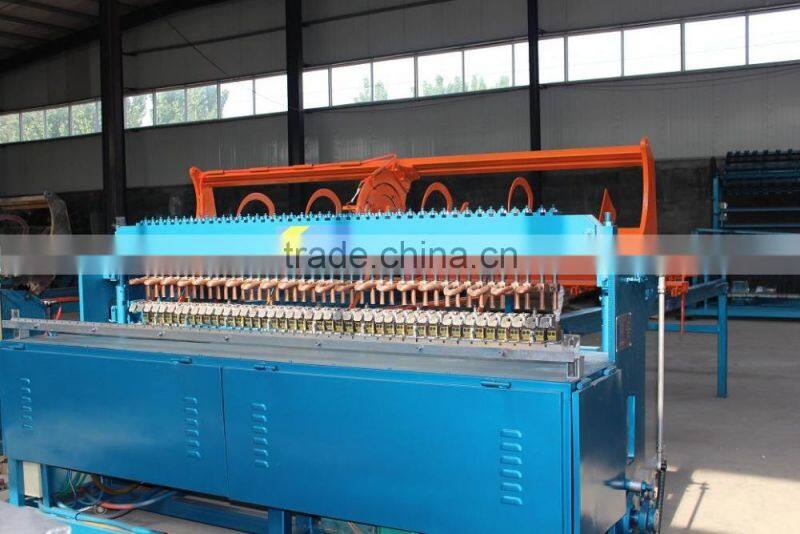

The Brief introduction of the machine:
New CNC automatic welding machine with nc synchronous control technique, welding time and control welding time of digital programming system by PLC, touch screen or keyboard input panel for two, more intelligent operation, rationalization. Fence welding machine using a pressure, welding points in time, the control of the biggest advantage is: can appear on the same net between warp and weft more than 30 different mesh size. Welding using new efficient water-cooling welding transformer, and expand the scope of welding wire diameter. Easy operation, high flexibility, production is several times of artificial single spot welding machine.
Performance characteristics:
1.the welding net machine each group of transformer is controlled by a single microcomputer, a pressure welding for many times, the control of the biggest advantage is: can the same net piece between weft and weft on more than 30 different size of holes.
2,.the wire welding machine welding electrode head made of high-quality chrome picks copper material long service life, reduce the production cost.
3.the welding net machine weft way: step motor automatic blanking sending weft, blanking position accurately.
Technical Parameters:
Wire diameter | 2.5-5.0mm | Welding point | 48 |
Weft wire spacing | ≥24mm | Weft form | Precut wire |
Wrap spacing | ≥50mm | Warp form | Precut wire |
Welding width | 2500mm | Rated power | You can choose |
Welding speed | 70times/min | Rated voltage | You can choose |
Packing
1. Debugged in two parts for packaging machinery, plastic mold package with good conduct tray packaging. Including accessories, kit, pump, control cabinet (accessories and other details can contact me for more information).
2. We have our own freight forwarding companies and packaging company, you can also specify a freight forwarding company in accordance with the customer for shipping by our customs.
After sale service:
- Engineer can install,test and adjust the machine for you
- 24 hours online after-sale service
- We will train worekers for you
Our Factory:
Hebei HTK Welding Equipment Manufacture Co., Ltd
- We have 2 senior engineers,10 senior technicians,more than 100 employees
- Our products: Field Fence and Field Fence Machine, Welded Wire Mesh Machine
- Our certifications: ISO 9001:2000, BV certification
- Our Main Market:South Africa, Mongolia,Asia, Dubai
