Brief Introduction on Pipe End Forming Machine

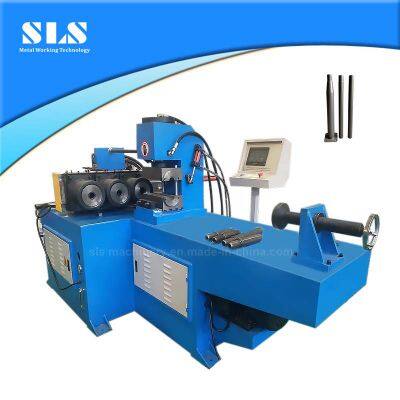

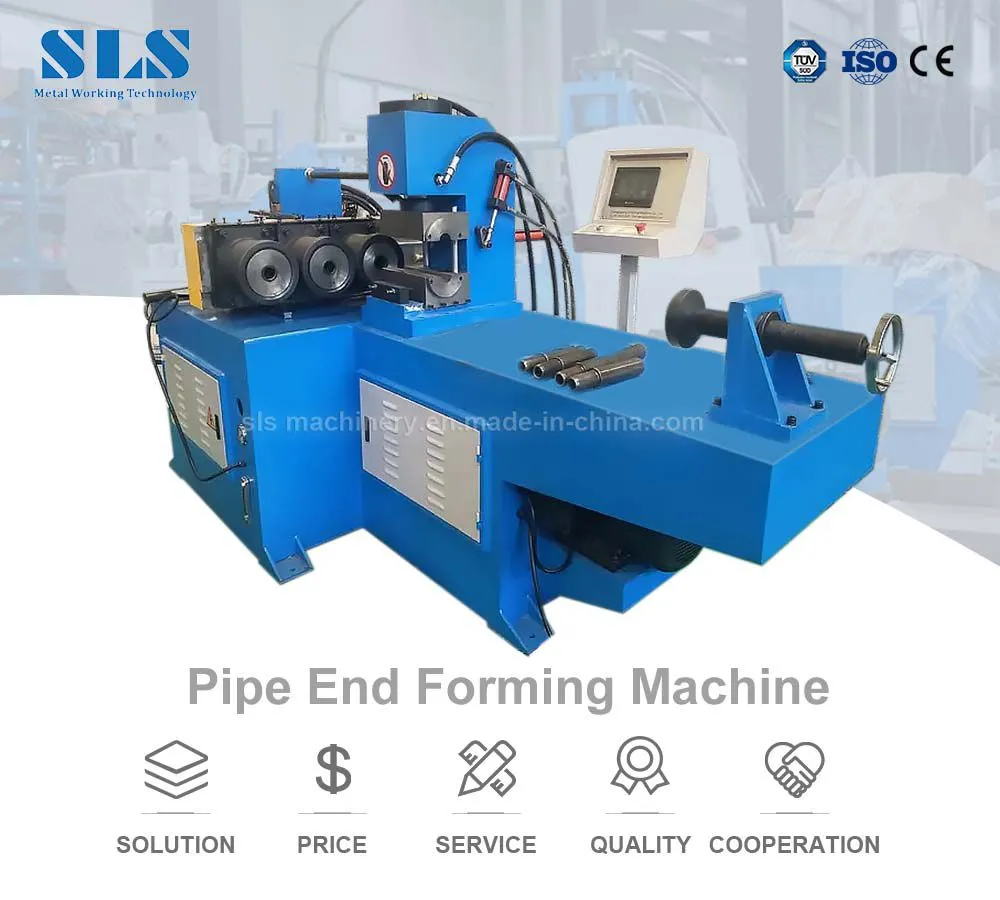

SLS TM-80CNC Type  Pipe end forming machine is a kind of high efficiency,automatic machine. It can be do different types of end forming as reduction, expansion, beads, flare and thickening.Each of these categories has special requirements and is used in a variety of applications. It is controlled by hydraulic and electricity at the same time.It combines easy-to-use operation with high end forming accuracy and cost effectiveness.

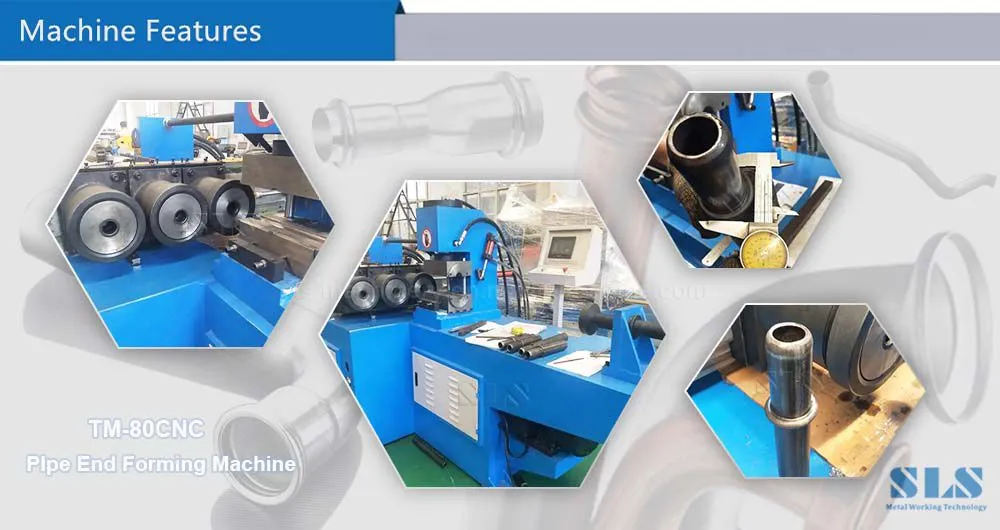

Features on Pipe End Forming Machine

●Easy Access to Auto and Manual Operating Modes.

●All the parts are made under very strict quality control, so the quality of machine is in high level and the specification is standardized.

●Equipped with emergency stop device. Both manual and automatic operations are available.

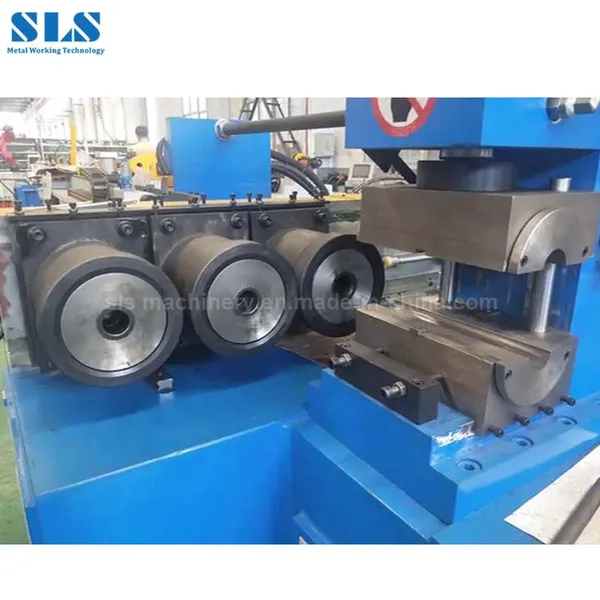

●Tube clamping and end forming driven by hydraulic.

●Suitable for The Shrinking for Various Metal Pipes with Different Material and Different Shape.

●The design of the tooling help customer easy to change.

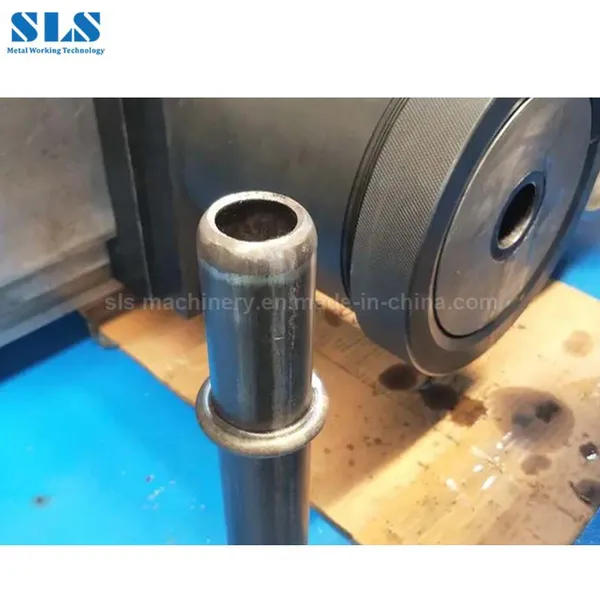

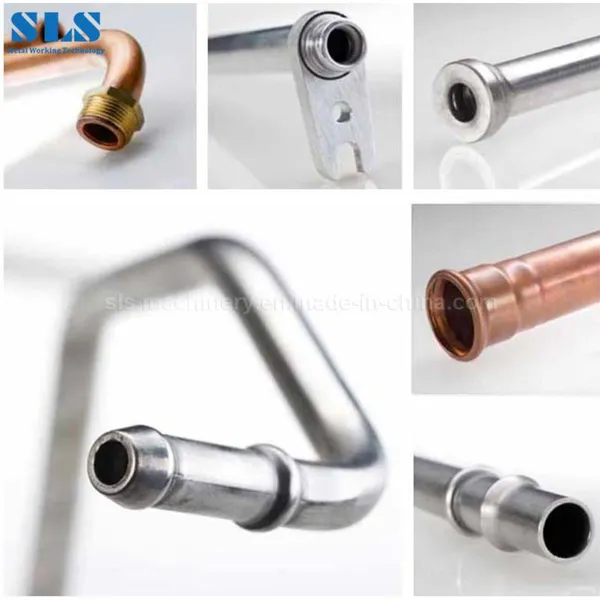

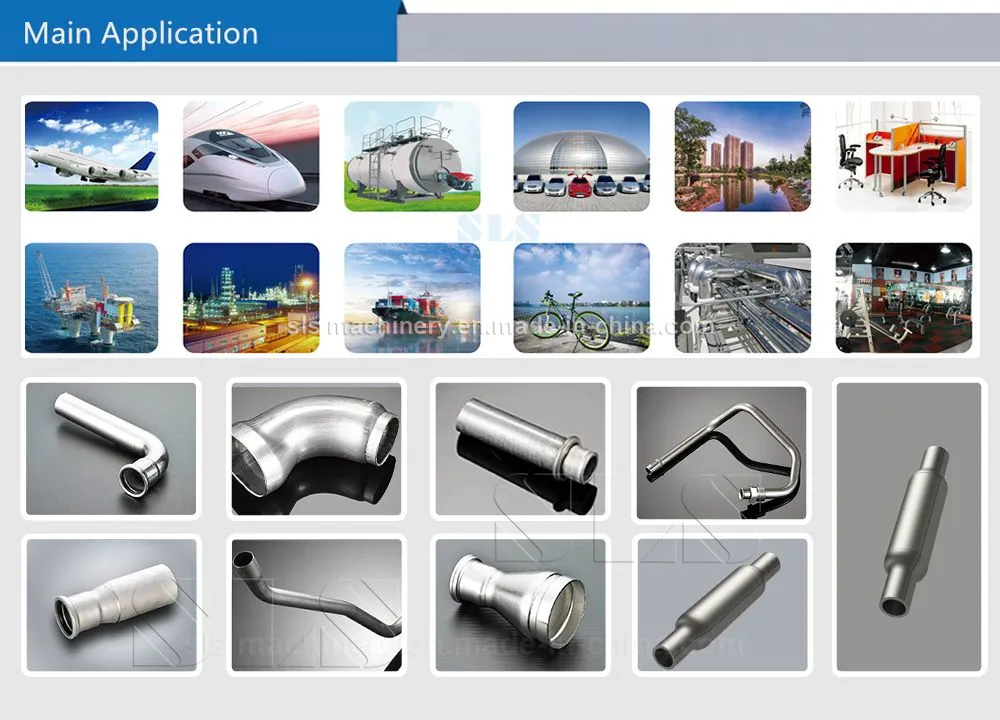

●Forming Shapes Can Be Convex, Concave, Sectional, Long & Flat, Square, V-Shape, Open Elbow, Flat Elbow...Etc.

●Foot Pedal Cycle Start.

●Water cooling system ensures the equipment long-time work stably under the high temperature.

●Optional:An Additional Feeding System Can Be Added to The Machine. The Operating Security Is Greatly Increased.
●Because The Operators Just Do The Unloading & Collecting Job of Finished Pipes.

●Optional:Multi Station Can Be Added to The Machine Based on Detailed Forming Requirement.

●Optional: Multi Station Shifting Can Be Chosen As Servo(Electrical) or Hydraulic Control.

●Optional: Double Head Can Be Added to The Machine Based on Detailed Forming Requiremen.

●CE&ISO 9001:2000.
