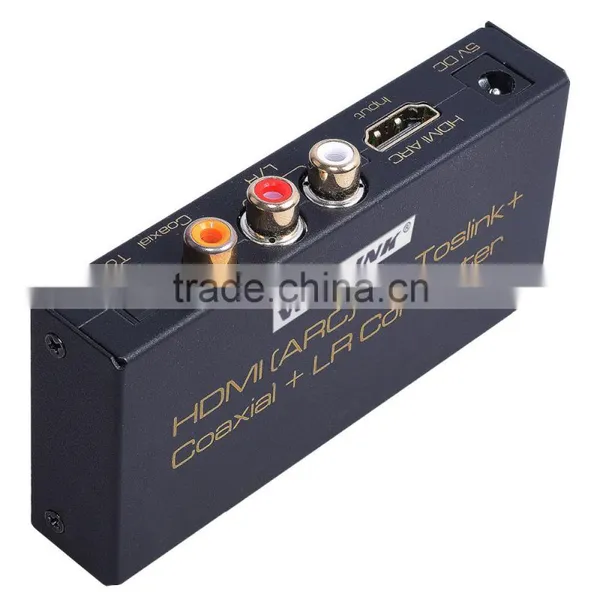

Voxlink 1080p HDMI ARC To Toslink + Coaxial + L/R audio Converter
Dear customer
Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.
Our series of converters, switchers, extenders, matrixes and splitters are designed to make your A/V device use more convenient, more comfortable, more productive and more cost-efficient.
HDMI ARC adapter enables display that supported ARC (Audio Return Channel) to be connected with the old AV receiver that do not support ARC. It can let old AV Receiver equipment to support ARC also. (Note: When you need to use the ARC function, please confirm the CEC function of the Display enabled and please use the standard HDMI 1.4 cable)
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
INTRODUCITON
Feature:
l One HDMI ARC Audio signal input, One Toslink , One Coaxial, One analog L/R Audio output
l Digital Audio port (Toslink & Coaxial) can support 192Khz Sampling Rate(LPCM2.0 Audio Format)
l The analog audio (L/R Channel) supports max 1V RMS analog audio output.
l The device has ARC switch and indicator light to let you know if ARC is disabled or enabled.
l Installs in minutes
Accessories Content:
1,DC5V TO USB Power Cable
2,Manual
Physical Connect Port:

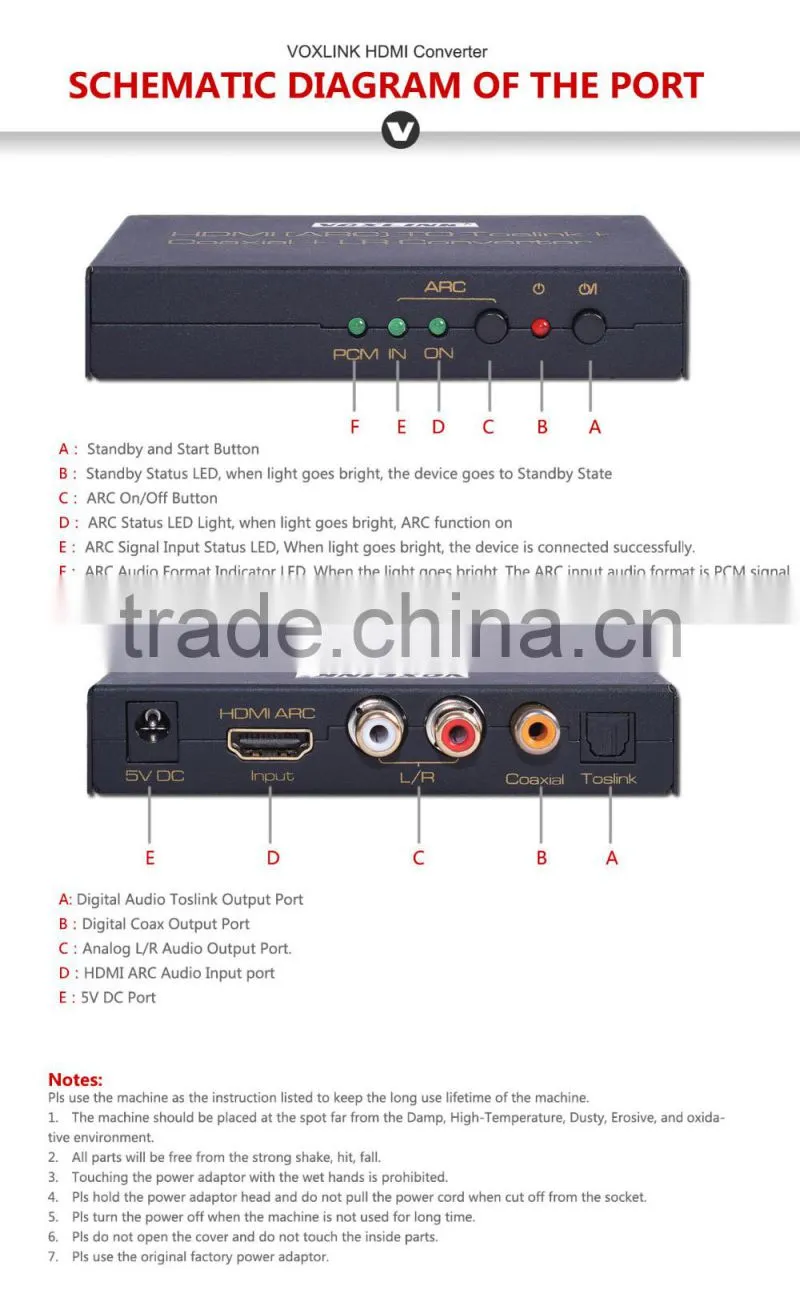

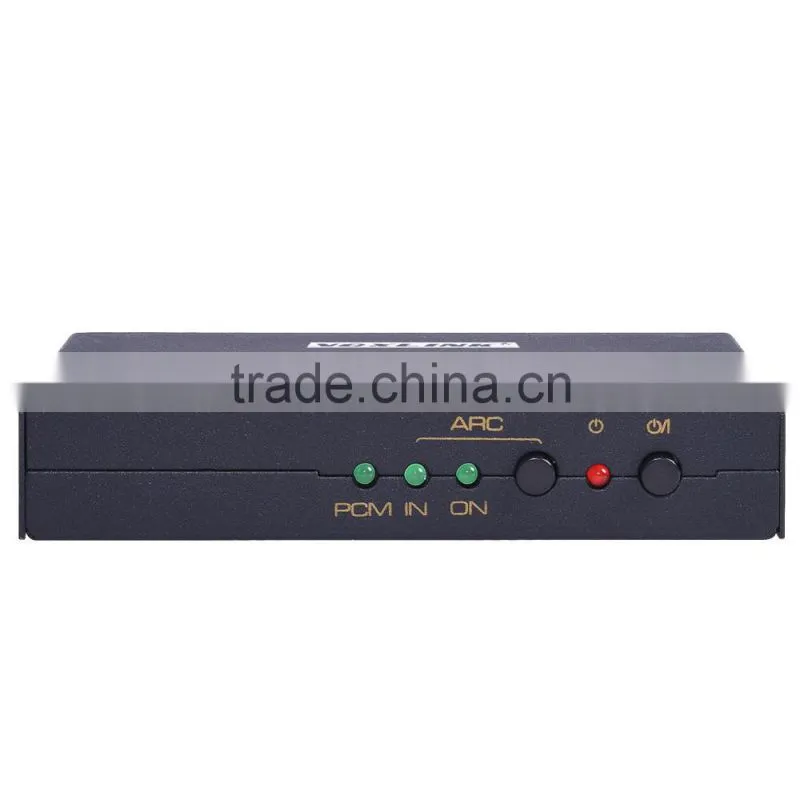

Picture 1.0 Front Panel Showing
A: Standby and Start Button
B: Standby Status LED, when light goes bright, the device goes to Standby State
C: ARC On/Off Button
D: ARC Status LED Light, when light goes bright, ARC function on
E: ARC Signal Input Status LED, When light goes bright, the device is connected successfully.
F: ARC Audio Format Indicator LED, When the light goes bright, The ARC input audio format is PCM signal.

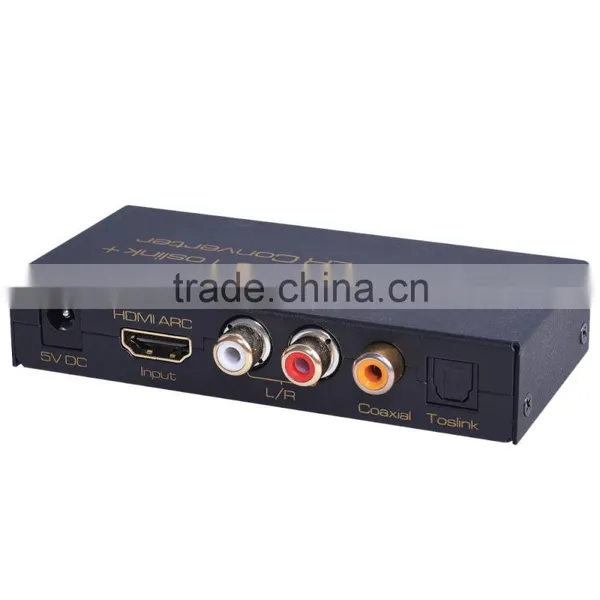

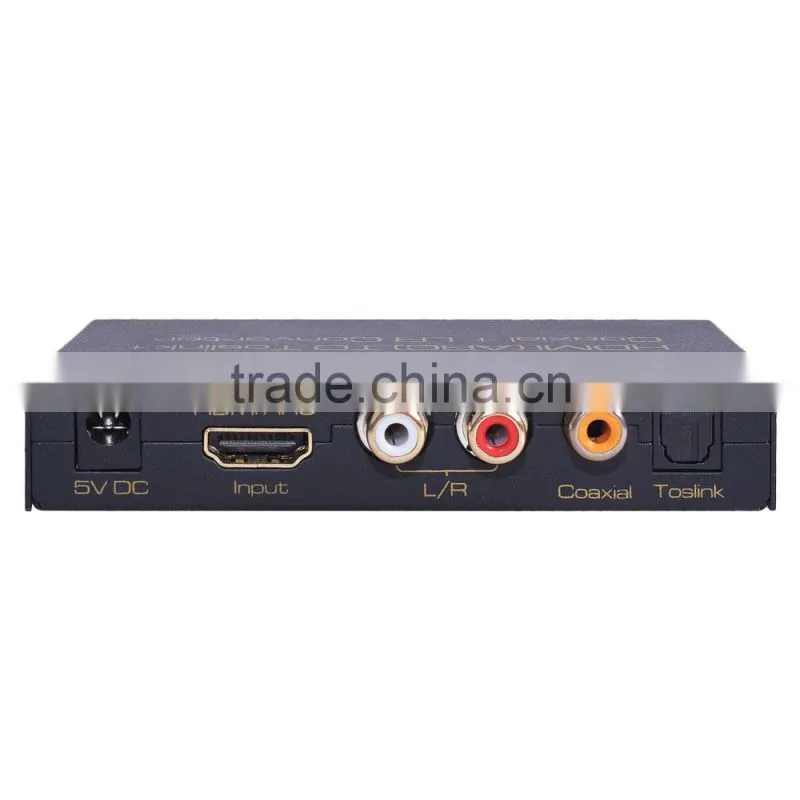

Picture 1.1 Rear Panel Showing
A: Digital Audio Toslink Output Port
B:Digital Coax Output Port
C:Analog L/R Audio Output Port.
D:HDMI ARC Audio Input port
E:5V DC Port
Connection and Operation:
To use one HDMI Cable to connect the Display (TV or Project) that supported ARC with the HDMI output port , and the other end is connected to device ARC input port.
To use optical cable or coax cable to connect the Toslink output port or coax port with the AV Receiver
To use the analog av cable to connect the L/R port of the device with the Active speaker.
Connect DC 5.5mm cable to device DC 5V input port. And connect the USB port to Display Device USB(Type A) interface.
When the device in standby status, To press button “
MCAP0002
1.we offer various options including DHL,TNT ,UPS,EMS,FEDEX etc,and it would be beneficial for large orders by sea.
2.If you have a shipping account or shipping forward,it could be better,but if you don't have,then we can help you to choose the best way to ship the goods.
OEM/ODM:
· Your Brand--OEM logo and custom Packing (4 color printing box, blister) will be no problem
· Your pantone color --no problem, MOQ 1000pcs
· Usually MOQ--500pcs, please ask us if we have order of other client, MOQ can be less, like 100,200pcs
Warranty & After-sale service:
· all of our products give 1 year warranty
· man-made destroy will be exception
· After the warrantee time, if we still in cooperation, we will give cost repairrment if still can repair.
· for reducing the cost of our customers, we can supply the materials or tech support to them, help them fix the problems in their hands
How could I get samples?
We can provide samples if you have?a Fedex or DHL account or other courier freight collectable account and agree?to pay the courier freight.or,you send us the samples charge together with the courier cost by T/T.
How much the courier freight will be for the samples?
Courier freight depends on the quantity, weight and carton size and your area.
How can I get your price list?
Please send us your email or fax for our price list and order information.
Can we have our logo or company name to be printed on your products or the package?
Yes, you can. We can print your Logo and company name etc in our products by silk screen printing according to your artwork design, and the minimum quantity for silk screen printing is 2000 units per logo. You can send us the artwork by email in JPG, TIF, AI, EPS, TIFF or CorelDraw formats.
What's your usual payment term for orders?
We accept terms of T/T in advance or L/C at sight, and T/T preferable under US$20,000.
