Voxlink 50m 3D 1080P HDMI 1.4V Extender over cat5 cat6 with loop-outover/IR/EDID
FEATURES
l Support HDMI 1.4a
l Support 3D
l Support highest video resolution 1080p/60Hz
l Support Bi-directional IR Control
l Support 1.49Gbps data rate and tmds clock up to 148.5MHz
l Support 8 bit deep color
l The transmitter support HDMI loop-out function.
l The transmitter support EDID management.
l Support AWG26 HDMI standard cable, HDMI input up to 10 metres, HDMI output up to 10 metres
l Double legged transmission: By using single cat-5e or cat-6(recommended) cable to connect the transmitter and receiver, it can extend the distance up to 50 meters between TX and RX, the quality of the cable will influence the transmission distance.
l Need DC5V/1A power supply

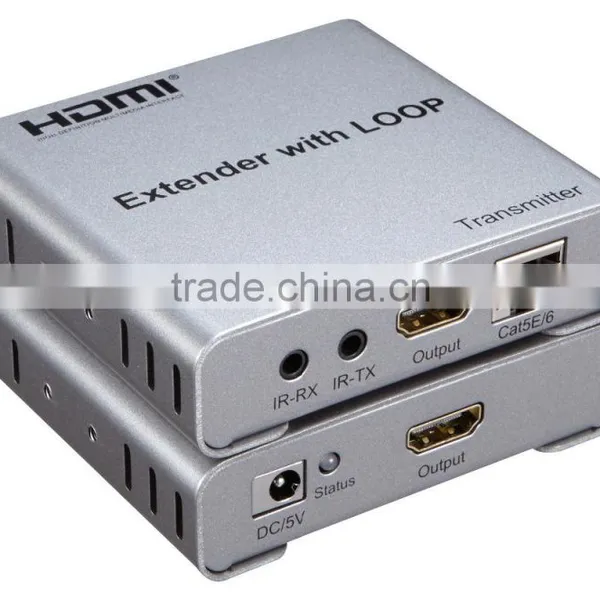

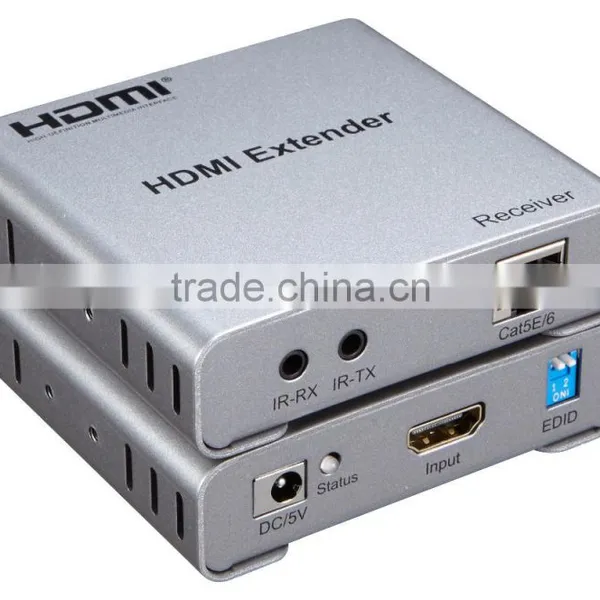

Product Picture:
Physical Connection Showing Picture:
Operating and Connecting:
1. Connect one HDMI cable between source device and TX Extender, the max cable distance is 10 meters
2. Connect one HDMI cable between display device and RX Extender, the max cable distance is 10 meters
3. Connect single cat-5e or cat-6(recommended) cables between TX and RX Extender, the max cable distance is 50 meters
4. The 2 pairs of IR RX and IR TX cable connect the 3.5mm IR RX and IR TX port of the receiver and transmitter respectively.
5. Connect 5V power supply to the TX and RX.
6. LED indicator light
TX LED indicator light: When there is no signal input, it turns blue; When there is signal input, it turns red.
RX LED indicator light: When there is no signal input, it turns blue; When there is signal input, it turns red.
Specification
Length of CAT-6/CAT-5E cable between Rx and TX…………….............…..Up to 50 meters
HDMI Input…..…………………...………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format.……………………………………………………………DTS/Dolby/PCM
Support audio input..……............................…DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
HDMI Output…..…………….…...………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Max transmission bandwidth………………............................………………………148.5MHz
Max baud rate……………….…….………………….………….……………………………1.49Gbps
Input video signal ………….……………………..………………………….…… 0.5~1.5Volts p-p
Output DDC signal …………………………………………...……………………… 5Volts p-p (TTL)
Input HDMI cable distance………….…………............…..≤10m AWG26 HDMI standard cable
Output HDMI cable distance............................................ ≤10m AWG26 HDMI standard cable
TX Max working current………………………………………...………….………………...650mA
RX Max working current…………………………………………...………………………...300mA
Power adapter format………...………Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range……..…………….………………………………… (-15 to +55℃)
Operating Humidity range………………………….….……….5 to 90%RH (No Condensation)
Dimension (L x W x H) ……………………………….……………………81x87.5x23.5 (mm)
TX Weight…..……………………………………………..………………………........………210g
RX Weight........................................................................................................................200g
The Package includes:
1. TX Extender :1pc RX Extender:1 pc
2. IR RX Cable: 2 pcs IR TX Cable: 2pc
3. 5V DC Power adapter
4. User Manual
