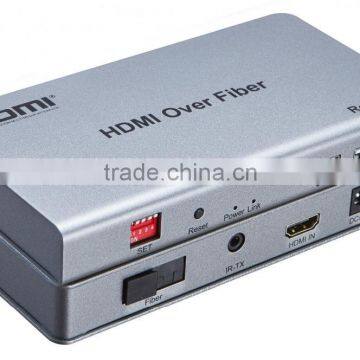

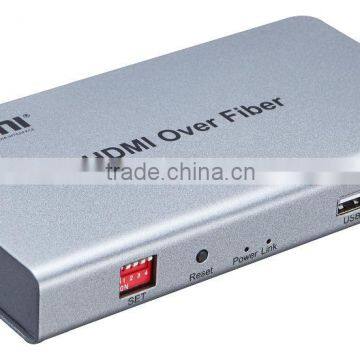

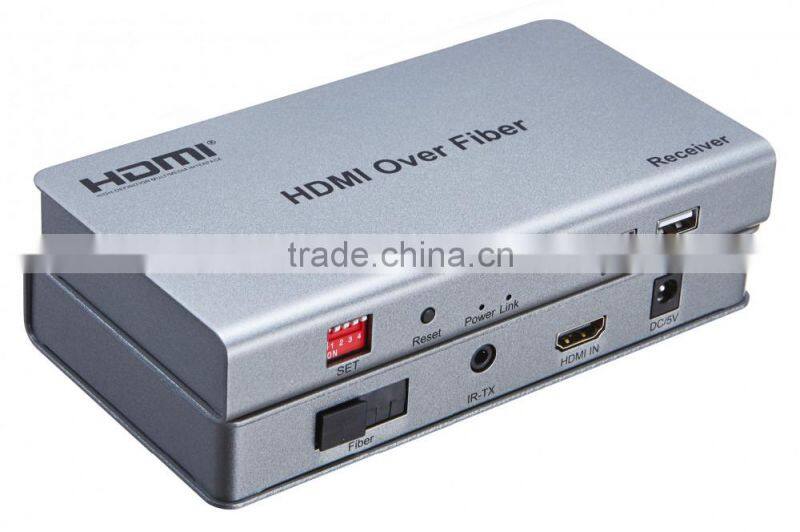

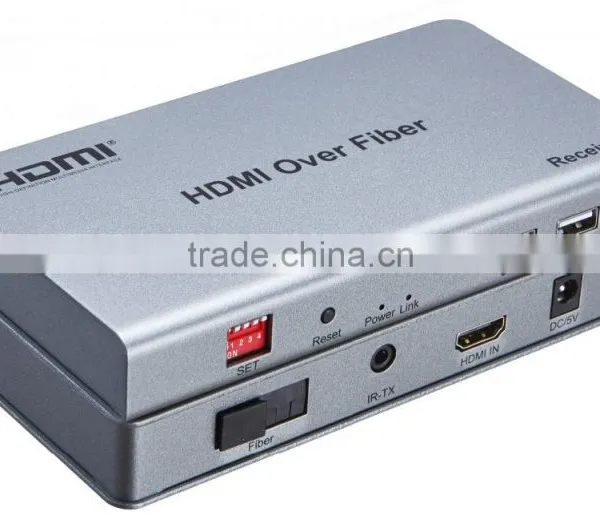

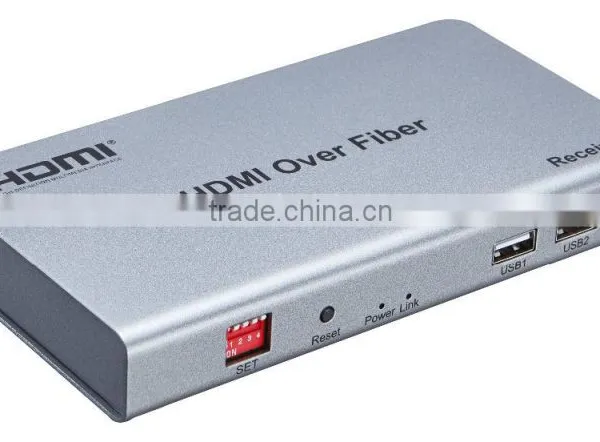

Voxlink NEW 1080P 20Km HDMI 1.3V Extender over fiber
1.Introduction
HDMI extender over fiber is a device transmitting HD audio and video signal via Single Mode or Multi Mode Fiber Cable. It transmits your HD display with the high resolutions up to 20km away from your HDMI or DVD source by using one fiber cable. At the same time, it’s also convenient to transmit HDMI audio and video signal by point-to-point mode.
2.Features &Specifications
| upport HDMI1.3/HDCP1.1&1.2 |
Ø Support point-to-point mode, multipoint-to-multipoint mode and cascade connection mode.
Ø Support signal mode fiber and multi mode fiber transmit
Ø Support one way IR extension.
Ø Pure hardware design, plug and play, do not need to install additional software
Video Resolutions |
480p,720p,1080p |
Audio |
Sample rate:32kHz,44.1kHz,48kHz |
IR remote control |
38kHz;NEC |
HDMI |
HDMI 1.3 |
HDCP |
HDCP 1.2 |
Power adapter |
DC5V/1A |
Power consumption |
HDMI Sender:3W HDMI receiver:3W |
Size(L-W-H) |
163*86*24mm |
Weight |
250g x 2 |
Operating Temperature/Humidity |
0℃-70℃/10%-80%RH(no condensation) |
Storage Temperature/Humidity |
-10℃-80℃/5%-90%RH(no condensation) |
3. Package Contents
Before attempting to use this unit, please check the package and make sure the
following items are contained in the shipping carton:
1) one piece of HDMI fiber extender transmitter
2) one piece of HDMI fiber extender receiver
3) Two pieces of DC 5V power supply
4) One pair of IR transmitter and receiver
5) User’s Manual
4.Physical interface diagram

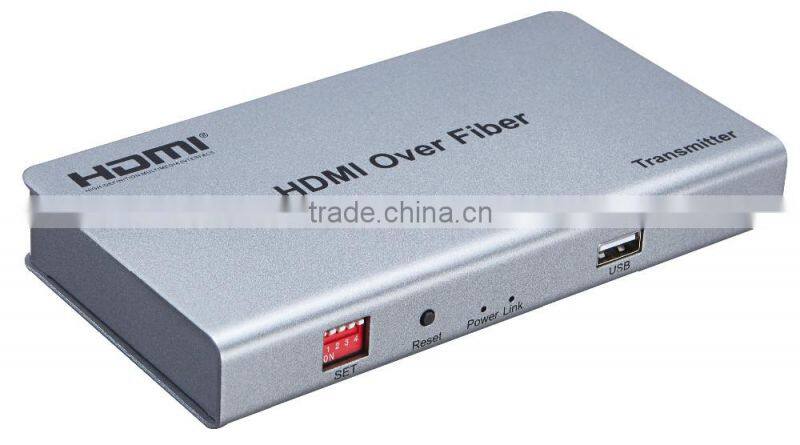

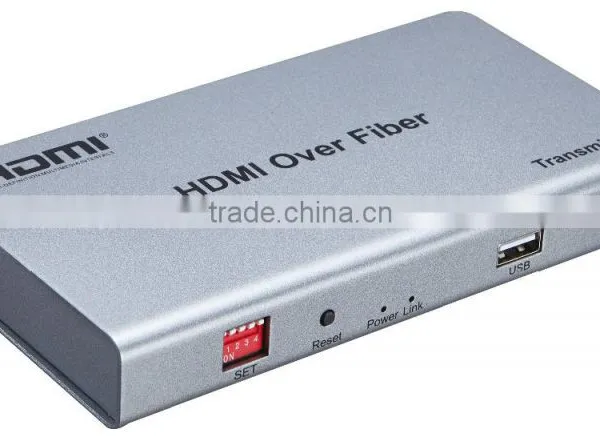

HDMI Transmitter
MCAP0002
1.we offer various options including DHL,TNT ,UPS,EMS,FEDEX etc,and it would be beneficial for large orders by sea.
2.If you have a shipping account or shipping forward,it could be better,but if you don't have,then we can help you to choose the best way to ship the goods.
OEM/ODM:
· Your Brand--OEM logo and custom Packing (4 color printing box, blister) will be no problem
· Your pantone color --no problem, MOQ 1000pcs
· Usually MOQ--500pcs, please ask us if we have order of other client, MOQ can be less, like 100,200pcs
Warranty & After-sale service:
· all of our products give 1 year warranty
· man-made destroy will be exception
· After the warrantee time, if we still in cooperation, we will give cost repairrment if still can repair.
· for reducing the cost of our customers, we can supply the materials or tech support to them, help them fix the problems in their hands
How could I get samples?
We can provide samples if you have?a Fedex or DHL account or other courier freight collectable account and agree?to pay the courier freight.or,you send us the samples charge together with the courier cost by T/T.
How much the courier freight will be for the samples?
Courier freight depends on the quantity, weight and carton size and your area.
How can I get your price list?
Please send us your email or fax for our price list and order information.
Can we have our logo or company name to be printed on your products or the package?
Yes, you can. We can print your Logo and company name etc in our products by silk screen printing according to your artwork design, and the minimum quantity for silk screen printing is 2000 units per logo. You can send us the artwork by email in JPG, TIF, AI, EPS, TIFF or CorelDraw formats.
What's your usual payment term for orders?
We accept terms of T/T in advance or L/C at sight, and T/T preferable under US$20,000.
