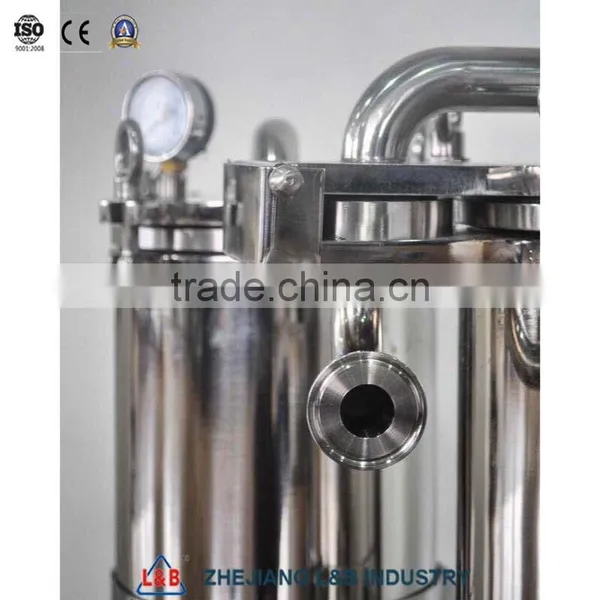

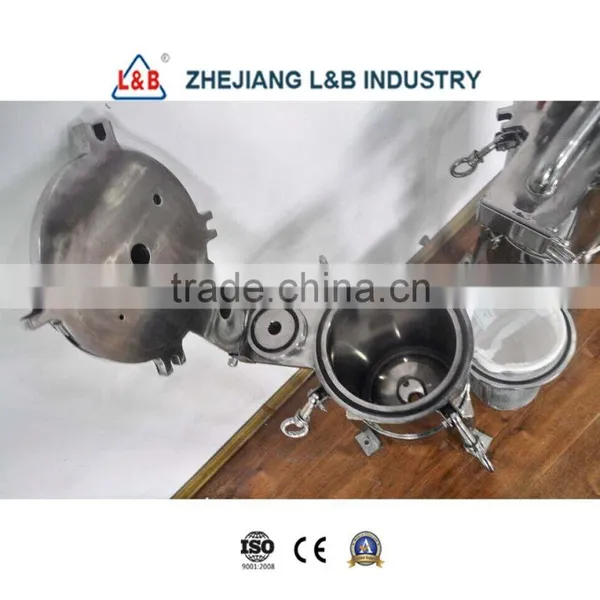

Help CenterStainless Steel Single Bag Filter Housing
Related Products
-
Sanitary Stainless Steel Pharmaceutical Single Bag Filter Bag Filter HousingUS$ 500 - 1,500MOQ: 1 Set -
Hygienic Stainless Steel Chmical Single Bag Filter Liquid Bag FilterUS$ 500 - 1,500MOQ: 1 Set
-
Sanitary Stainless Steel Movable Filter Bag Filter CartUS$ 500 - 1,500MOQ: 1 Set
-
Stainless Steel Industrial Movable Filter Food Grade Single Bag FilterUS$ 500 - 1,500MOQ: 1 Set
-
Filter Press for Wisky|Filter Press for Soya Sauce|Filter Press for WineUS$ 650 - 3,000MOQ: 1 Set
Bag Filter Housing
We Flowtam Light Industry company are the manufacturer of Bag
Filter, Cartridge filter and strainer with more than
20 years of filtration application knowledge to help
you to solve all of your liquid filtration problems
facing in selecting the right type of filter bag, right
micron rating of filter cartridge and right size of
strainer.
We offer multi bag filter housing from1 bag to
12 bags with clamp cover Closure design and quick
closure design.
Feature
-Selectivity : from 1 bag- 12 bags
-Individual Bag Locking to ensure
-Prefect sealing
-Custom Made order
-SS304/SS316/SS316L Material Available
-Thread / flange connection optional
Technical Data
¢ Operation pressure:100PSI-300PSI
¢ Operation temperature:5°C-80°C(or customized with certain temperature)
¢ Filtration precision:1μm-200μm
¢ Number of filter bag :1-12 pcs
¢ Length of filter bag :410mm & 810mm
¢ Capacity of each filter :0.1 m3/h -500 m3/h
Functional features
¢ High filtration efficiency, average pore size on filter bag
¢ Low resistance, high capacity, high Sewage interception,capability, long service life.
¢ High cleanness of filter bag and no pollution of filtering media
¢ Anti acid-base
¢ High strength, high temperature resistant, no deformation.
¢ Low purchasing cost and operation cost, easy to clean and replace filter cartridge.
¢ Easy operating & maintenance
| Spec | 0.25 | 0.35 |
| Capacity(T/H) | 5 | 10 |
| Outsize(mm) | 1300x500x1100 | 1520x550x1200 |
| Filter net spec.(Micro) | 80-320 | 80-320 |
| Please contact our After-sales service department in time within 30days after you received the cargo. | |
| Tel: 0086-021-54938956-808 Time: 8:00 a.m.- 6:00 p.m. (Beijing time) | |
| Process | Please provide the copy of Sales Contract and describe the problems appeared. |
| Problems confrimation: | |
| Slight problem: | Please send the proof to our After-Sales Department, we will reply within two days. |
| Serious problem: | |
| a | We will dispatch our Quality and Problems Appraisers to make a confirmation. |
| b | Have a negotiation of the compensation and sign agreements |
| c | Our After-Sales Department will perform the duties as the agreements |
Custom-made is avaiable
Supply Mixing tank,Reactor tank,fermentation tank,Inline homogenizer,High shear emulsifier mixer,Colloid mill,Jacket cooking kettle,Rotor pump,screw pump,emulsion pump,transfer pump etc.
Wenzhou L&B Fluid Equipment co., Ltd have special technology to design and exploit by CAD software and computer and is a outstanding leader among valve fields. We have advanced CNC lathes imported from Japan. We can manufacture the valves and fitting according to ISO, DIN, IDF, SMS, 3A, while we can produce the products per as the requirement from the clients(non-standard). Our products can get to the international standard and meet the requiement of GMP, so they are widely used in many fields, such as dairy, beer, food, pharmacy, beverage, cosmetic etc.,exported to America, Europe, the Middle East.
