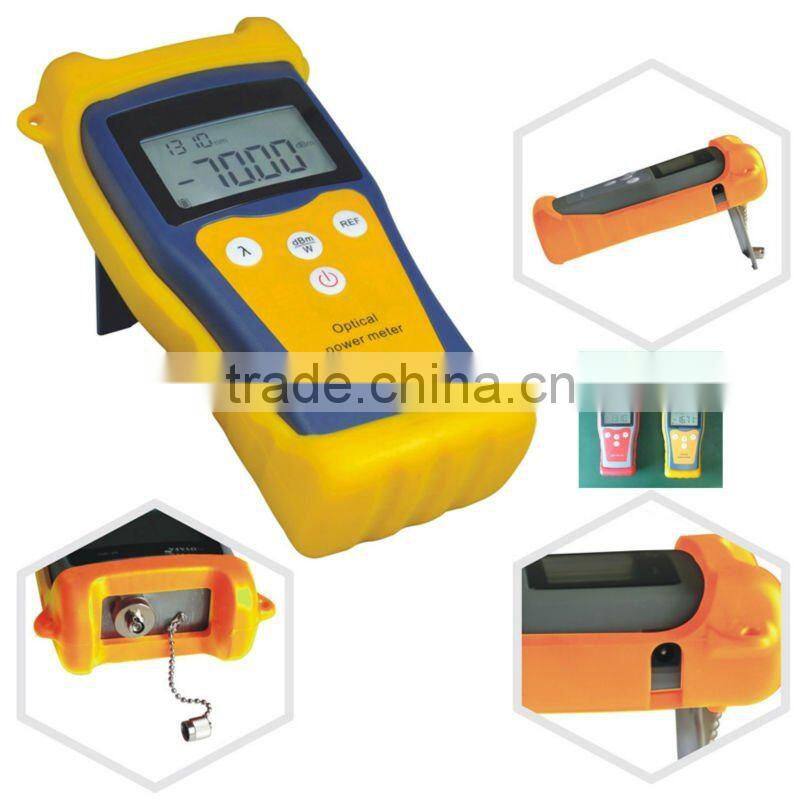

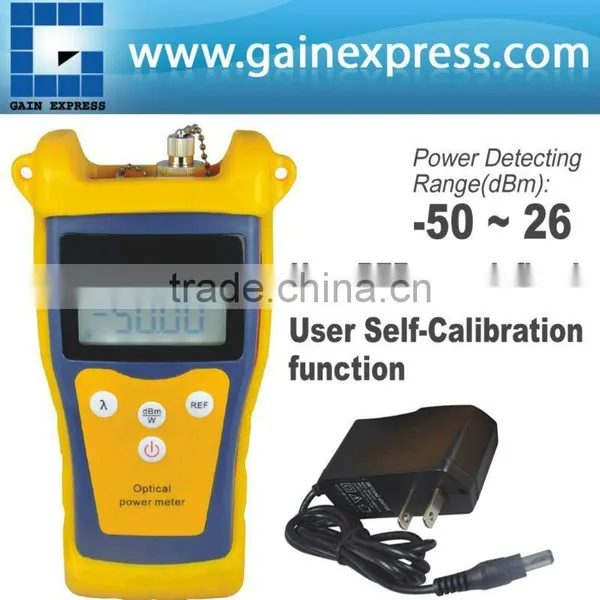

Fiber Optical Handheld Power Meter With -50~26 Power Detecting Range

Specifications

A portable optical power meter equipped with1.0mm large-area detector so that the stability and reliability can be enhanced effectively. A kind of portable tester used for the installation debugging and maintenance of fibre network.

It's features include light-handed body,optional backlight  display, automatic shutdown, wider test range and high precision.

It has a brand-new design of  user-defined and general-purpose interface. This tester has been widely used in various fields, such as cable construction and maintenance, optical fiber transmission, optical fibre communication, fibre optical sensor CATV, and etc.

Features:

• Power detecting range(dBm): -50~26

• Use self-calibration function.
• Measurement of the power of optical sender (dBm and W)
• Loss test of optical fiber link
• Insertion loss test of optical device
• Installation and maintenance of fiber fibre link
• New REF user-defined.
• With extra-long service life, a common 9V laminated
• Battery which can serve as long as 200hrs continuous operatin
• With FC/SC/ST general-purpose interfaces,free from any complicated transform
• Optional auto-off function and backlight switch


Specifications:

• Power detecting range(dBm): -50~26
• Wave-length(nm):  800~1700
• Probe: InGaAs
• Detection limit: f1.0mm
• Uncertainty degree: ±5%
• Standard wavelength(nm): 850,1300,1310,1490,1550,1625
• Display resolution:  0.01dBm
• Workingtemp(°C): -20~+70
• Storagetemp(°C): -30~+80
• Automatic shutdown time(min: 15
• Battery serving time(h):  200
• Overall dimension(mm): 185×105×50
• Power supply: 9V battery, AC adapter
• Weight(g): 350

Set includes:

• 1 X Main body
• 1 X sheath
• 1 X cotton swab
• 1 X user manual
• 1 X AC adapter 9V
• 1 X toolkit bag
• 1 X box
