Ultrasonic Digital Coating Thickness Meter Gauge Tester 0~1200
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Model Number:
8042
Power:
Other, 3 x 1.5V AAA Battery
Usage:
Other, paint, spray-plastic, rubber, enamel, chrome plate, copper, Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Digital Conductivity Temperature TDS Salinity Meter w/ ATC Memory Clock Calendar IrDA Port, Optional CD & CableNegotiableMOQ: 1 Piece -
Digital EC Conductivity Meter Tester Water 0-1999 Us/cm With ATC & ElectrodeNegotiableMOQ: 1
-
Digital Sound Noise Level Meter 30-130 dBNegotiableMOQ: 1 Piece
-
MITECH MT150 Ultrasonic Thickness Gauges With 4.5 Digits LCD With EL Back Light 0.75~300mmNegotiableMOQ: 1 Piece
-
RJ11 and RJ45 Remote Network Lan Cable TesterNegotiableMOQ: 1 Piece
Model Number
8042
Power
Other, 3 x 1.5V AAA Battery
Usage
Other, paint, spray-plastic, rubber, enamel, chrome plate, copper, Aluminum

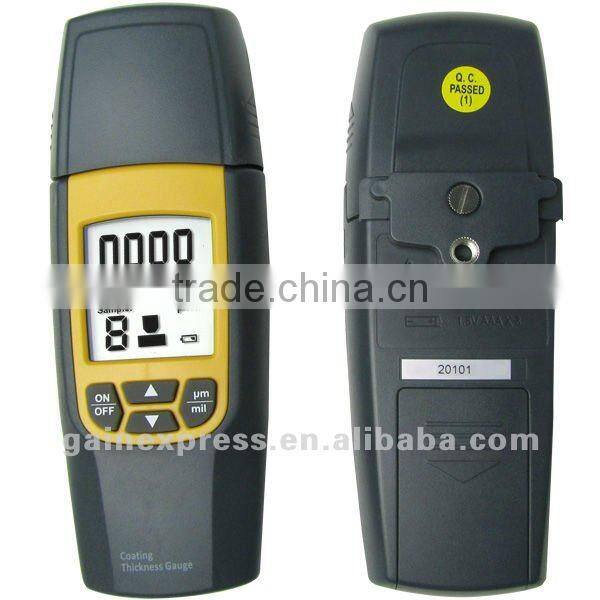

This device provides quick and precise measurement of coating thickness on the magnetic metallic matrix. Due to its compact design and small size, this instrument is very much ideal for manufacturing, metal machining, chemical industry, commodity inspection. Made according to European Union's CE safety norms as well as to JJG 889-1995 Standards and EC directive: 89/339/EEC.
With its electromagnectic method, the meter can measure the coating thickness non-destructively, including paint, spray-plastic, rubber, enamel, or chrome plate, copperizing, aluminum plating on steel, iron, non-austenitic stainless steel.
Features:

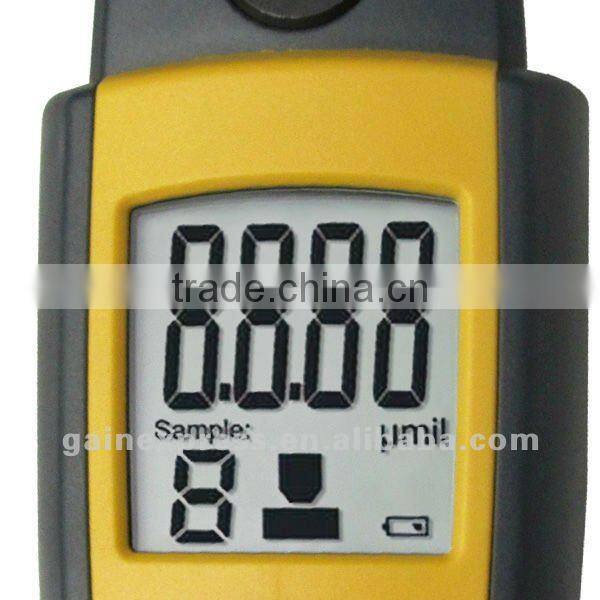

- Four digit LCD display, differentiating up to µm
- System calibrating by user-self
- Pocket shell, convenient for local engineering
- Selectable "µm"or "mil" thickness unit
- Coupling state display
- Micro-controller controls, high accuracy
- Auto and Manual shutdown
- low battery voltage indication
- Uses electromagnetic method to measure
- Designed according to EC directive: 89/336/EEC, European Union : CE, and JJG 889-1995 standard
Specifications:
- Digital display: 4 digits
- Measurement range: 0~1200µm
- Resolution: 1µm
- Accuracy: ±(3%H+2µm)
- Measurement rate: 0.8 seconds
- Display units: µm or mil
- Critical thickness of metallic base: 1mm
- Minimum thickness of metallic base: 0.2mm
- Minimum curvature radius: protruding 1.5mm, concave 6mm
- Probe diameter: 13mm
- Power supply: 3 x 1.5V AAA Battery
- Operating environment without strong magnetic field
- Temperature: 0~40°C
- Humidity: 20%~80%
- Storage Temperature: -40~70°C
- Dimensions: 165mm x 60mm x 30mm
- Weight (main unit): 140g (battery excluded)

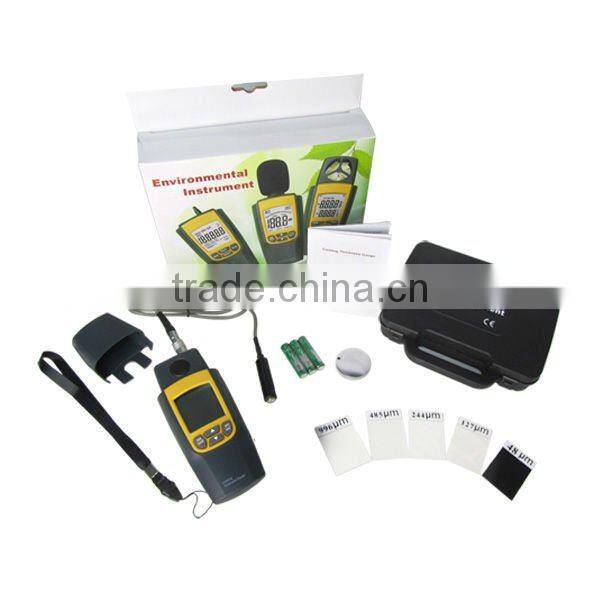

Set Includes:

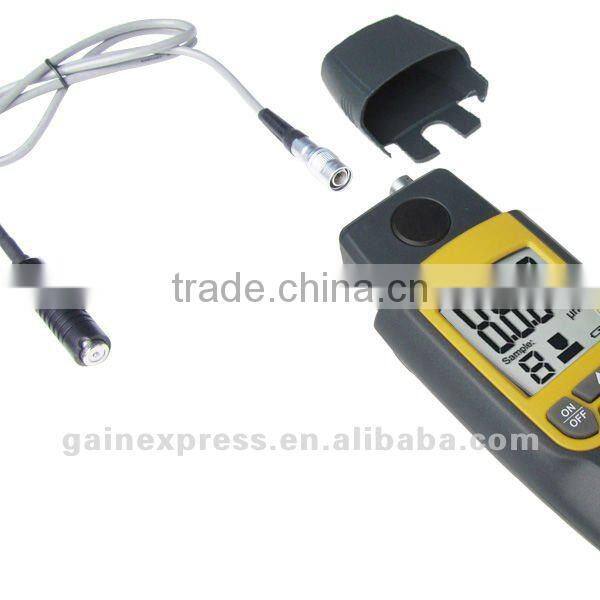

- 1 x Probe (head 13mm diameter)
- 5 x Standard thickness piece
- 1 x Martensite stainless steel block
- 1 x English Operating manual
- 3 x Batteries 1.5V AAA Batteries
- 1 x Shock Absorbent Hard Carrying Case
- 1 x Lace
- 1 x standard packaging
