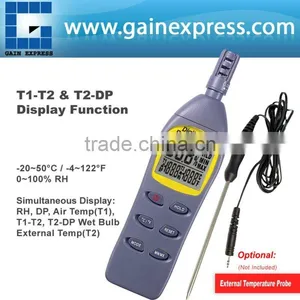

RH, DB, DP, WB and External Temp C/F With Temp Differential Pocket Hygro-thermometer

RH, DB, DP, WB and External Temp C/F With Temp Differential Pocket Hygro-thermometer thumbnail-1
RH, DB, DP, WB and External Temp C/F With Temp Differential Pocket Hygro-thermometer photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Model Number:
A018716
Accuracy:
.6 degree C(temp); +/-3%( RH)
Contact Supplier Request Quote Chat Now
Gain Express Holdings Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number A018716
Accuracy .6 degree C(temp); +/-3%( RH)

Specifications

Instantly calculate DP( dew point) and WB (wet bulb) temp
Easy to read T1 , T 2 , T1 - T2
Rotronic Humidity Sensor-Capacitance

Pocket size, battery operated meterfor RH (humidity), DB (Dry Bulb), DP (Dew Point), WB (Wet Bulb), EX (External Temperature) and Temperature Differential measurement. The sensor is specially protected by tunable cap.



It is a microprocessor based design. A must device for HVAC engineers' use. No need to whirl themeter or refer to the chart. Easy to get WB/DB and DP temperature quickly!





Features:

  • Features Temperature Differ Display
  • T1-T2 & T2-DP function
  • Dew Point Range: -78.7 ~ 50.0°C
  • Wet Bulb Range: -21.6 ~ 50.0°C
  • Dew Point calculated in seconds.
  • Wet Bulb calculated in seconds.
  • Dew point and Wet BUlb Temperature display. No chart reference is needed.
  • Accurate to get stable reading for the difference for surface ( T2 )and dewpoint to the enviornments of protective coating / painting field.
  • Tunable cap to protect sensor.
  • External Temperature probe. (not included in the set)
  • Simultaneous LCD digital display Temp., RH, External Temperature.
  • Data Hold to capture readings.
  • Pocket size.
  • Low battery indication.
  • Fast response.
  • Accurate reading.
  • Maximum / Minimum and reset function.
  • Mcroprocessor circuitry for reliability.
  • Auto power off time frame selectable.
  • Disable power off.
  • Design with Capacitance type RH Sensor to get accurate and quick reading
  • External Probe for checking Quality and HVAC/R applications (not included in the set)
  • Temperature Unit °C /°F selectable
  • Hold Function to freeze current reading
  • Sleep mode can be disabled



Specifications:

  • Range :
    • Temp. : -20~50°C
    • RH : 0%~100%
  • Resolution :
    • Temp. : 0.1°C/0.1°F
    • RH :  0.1%
  • Accuracy :
    • Temp : ±0.6°C
    • RH : ±3%
  • Response time : 60 seconds typical
  • Dew Point Range : -78.7 ~ 50.0°C
  • Wet Bulb Range : -21.6 ~ 50.0°C
  • External Temp. Range :  -20~70°C
  • External Temp. Accuracy : ±0.6°C(-20~50°C)
  • Storage Temp : -20~50°C
  • Storage RH :  Humidity <90%
  • LCD size : 28(H) x 33(W)mm
  • Dimension : 48.4 x 178.5 x 24.7 mm
  • Weight : ~100g
  • Battery : AAA x 2pcs



Set Includes:

  • 1 x Hygro-thermometer
  • 2 x AAA Battery
  • 1 x Operation Manual
  • 1 x Paper box



  • Optional Items (not included in set):
    Please inform us if you want any of the following optional items to be included in your order.
    • External Temperature Probe
    • Calibration Kits : 33% and 75% salt bottles
