Home > Instruments & Meters > Meter for Electricity > Energy Meter & Power Meter > Digital High Quality Fiber Optical Handheld Power Meter With -70~10 Power Detecting Range

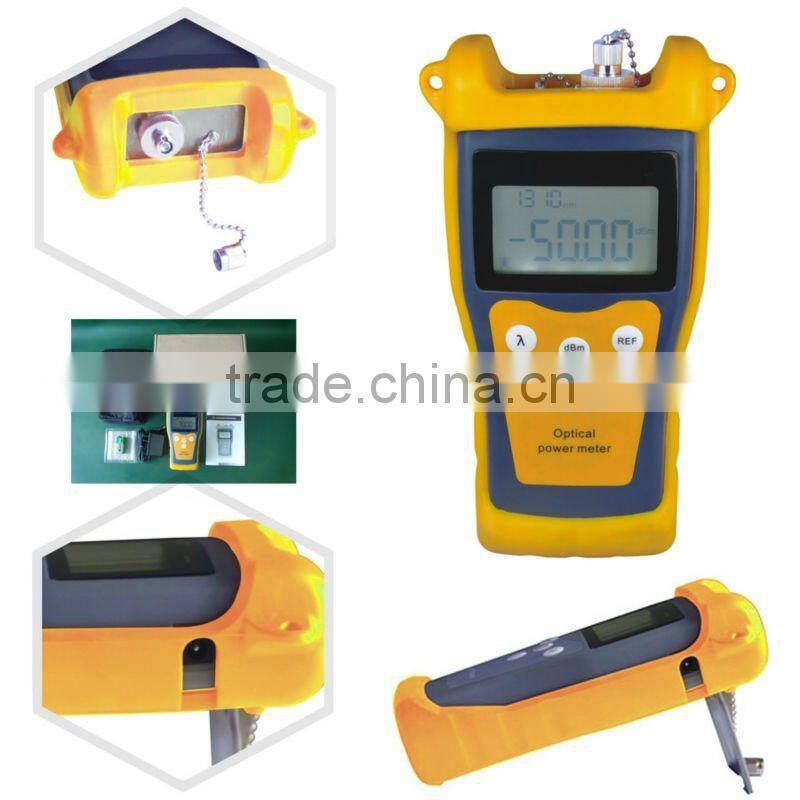

Digital High Quality Fiber Optical Handheld Power Meter With -70~10 Power Detecting Range
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Model Number:
N03NF-906A
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Digital Hygro-thermometer for RH, DB and External Temp C/FNegotiableMOQ: 1 Piece -
Portable Hygro-thermometer for RH, DB, DP, WB and External Temp C/FNegotiableMOQ: 1 Piece
-
Handheld Hygro-thermometer for RH, DB, DP, WB and External Temp C/F With Temp Differential, Memory and ClockNegotiableMOQ: 1 Piece
-
Digital Single Axis RF Radiation Field Strength Power EMF Microwave Meter 3.5GHz Ultrasound MachineNegotiableMOQ: 1 Piece
-
Portable 25kg/55lb Round Digital LCD Hanging Fish Weighing Scale, ozNegotiableMOQ: 1 Piece
Model Number
N03NF-906A
Specifications
New REF user-definedWith FC/SC/ST general-purpose interfaces
Use self-calibration function
Power detecting range dBm -70~10
A portable optical power meter equipped with1.0mm large-area detector so that the stability and reliability can be enhanced effectively. A kind of portable tester used for the installation debugging and maintenance of fibre network.
It's features include light-handed body,optional backlight display, automatic shutdown, wider test range and high precision.
It has a brand-new design of user-defined and general-purpose interface. This tester has been widely used in various fields, such as cable construction and maintenance, optical fiber transmission, optical fibre communication, fibre optical sensor CATV, and etc.
Features:
- Power detecting range(dBm): -70~10
- Use self-calibration function.
- Measurement of the power of optical sender (dBm and W)
- Loss test of optical fiber link
- Insertion loss test of optical device
- Installation and maintenance of fiber fibre link
- New REF user-defined.
- With extra-long service life, a common 9V laminated
- Battery which can serve as long as 200hrs continuous operatin
- With FC/SC/ST general-purpose interfaces,free from any complicated transform
- Optional auto-off function and backlight switch
Specifications:
- Power detecting range(dBm): -70~10
- Wave-length(nm): 800~1700
- Probe: InGaAs
- Detection limit: f1.0mm
- Uncertainty degree: ±5%
- Standard wavelength(nm): 850,1300,1310,1490,1550,1625
- Display resolution: 0.01dBm
- Workingtemp(°C): -20~+70
- Storagetemp(°C): -30~+80
- Automatic shutdown time(min: 15
- Battery serving time(h): 200
- Overall dimension(mm): 185×105×50
- Power supply: 9V battery, AC adapter
- Weight(g): 350
Set includes:
- 1 X Main body
- 1 X sheath
- 1 X cotton swab
- 1 X user manual
- 1 X AC adapter 9V
- 1 X toolkit
- 1 X box
