Home > Instruments & Meters > Meter for Electricity > Energy Meter & Power Meter > Digital Single Axis RF Radiation Field Strength Power EMF Microwave Meter 3.5GHz Ultrasound Machine
Digital Single Axis RF Radiation Field Strength Power EMF Microwave Meter 3.5GHz Ultrasound Machine
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Model Number:
T94
Display Type:
Digital Only
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Portable 25kg/55lb Round Digital LCD Hanging Fish Weighing Scale, ozNegotiableMOQ: 1 Piece -
Aluminum Hexagonal Wet Film Comb Coating Thickness Gauge 3000um (120mils)NegotiableMOQ: 1 Piece
-
Handheld Digital Hardness Meter Tester Shore F DurometerNegotiableMOQ: 1 Piece
-
Digital Handheld Waterproof Digital TDS Meter 0 - 1999PPmNegotiableMOQ: 1 Piece
-
Digital LCD Display Function Signal Generator 0.2Hz-2MHz With 7 Frequency RangeNegotiableMOQ: 1 Piece
Place of Origin
Taiwan, China
Model Number
T94
Display Type
Digital Only
Specifications

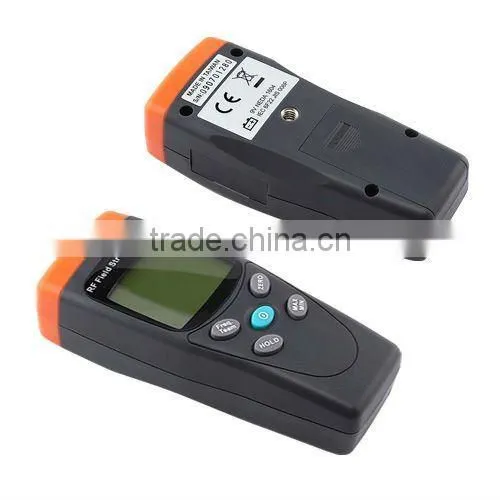

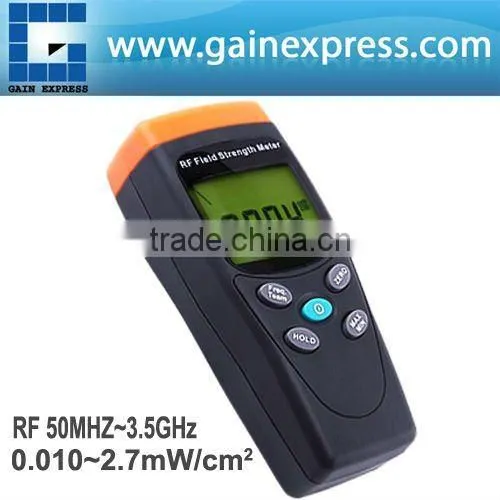

Single Axis with 0.010~2.7mW/cm2 measuring range Digital RF Field Strength Meter 50MHz to 3.5GHzThis RF Field Strength Meter is designed to measure and monitor microwave and high frequency (RF) electromagnetic wave field strength from 50MHz to 3.5GHz including power level measurement for personal safety. Calibrated precisely on 2.45GHz frequency value. Its a single axis meter with 0.010~2.7mW/cm2 measuring range that can measure the electromagnetic field radiation intensity that is produced: at 2.45GHz, strength produced from antenna tower field strength evaluation, Radio transmitter power output meter.
This field strength meter has been designed to use in a pollution degree 2 environment. Plus, all parts are made and manufactured in Taiwan.
Application:
- High-voltage towers
- Microwave
- Ultrasound machine
- Radar
Features
- Single axis
- Measurement range of RF power density: 0.010~2.7mW/cm2
- Selectable 2.45GHz (microwave frequency) or 50MHZ~3.5GHz (normal)
- Audible alarm when measured value is more than 1mW/cm2
- Radio transmitter power output meter
- Overload indication
- Quick 2.5 times/sec reading result
- High accuracy with 0.001mW/cm2 resolution
- MADE IN TAIWAN
- Automatic power off (if idle for 30min)
- Low battery indicator
- Best use in High-voltage towers, Microwave, Ultrasound machine and Radar
Specifications
- Frequency response: 50MHZ~3.5GHz
- Measurement range of RF power density: 0.010~2.7mW/cm2

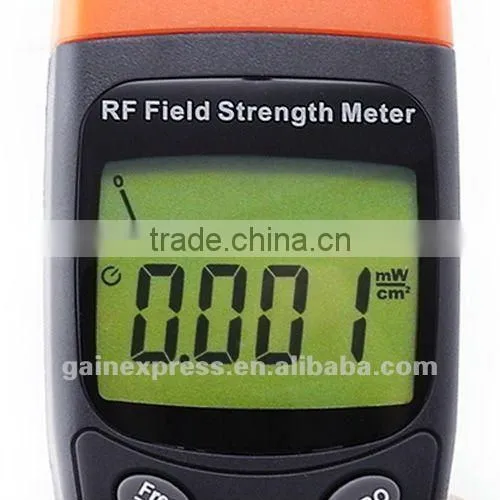

- 3 3/4 LCD Max Reading 3999
- Resolution: 0.001mW/cm2
- Sensor: Single Axis
- Accuracy: ±2dB at 2.45GHz ±50MHz
- Sample rate: 2.5 times per sec
- Functions: Maximum Hold, Minimum Hold,Data Hold, Zero and Freq Team
-
Operating
- Temperature: 5~40°C
- Humidity: <80%RH
-
Storage

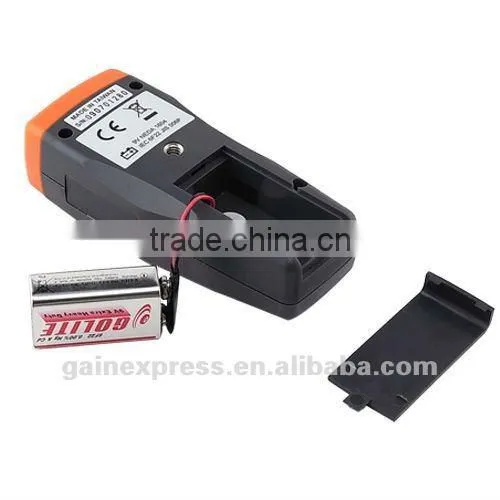

Battery: 9V Battery- Temperature: -10~60°C
- Humidity: <70%RH
- Battery life: approx. 100hrs
- Size: 130 x 56 x 38mm
- Weight: approx. 170g

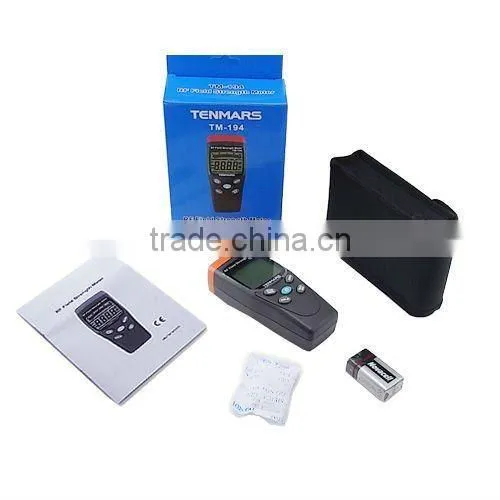

Set Includes
- 1 x RF Field Strength Meter
- 1 x Protective carrying bag
- 1 x 9V Battery
- 1 x Moisture absorbent bag
- 1 x Instruction Manual
