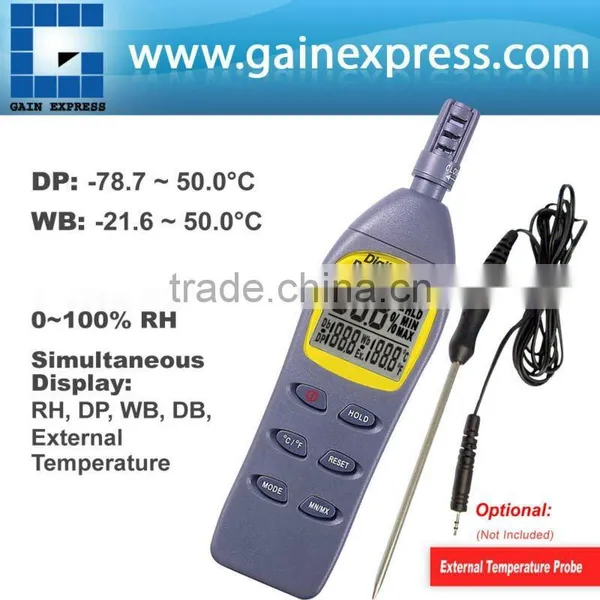

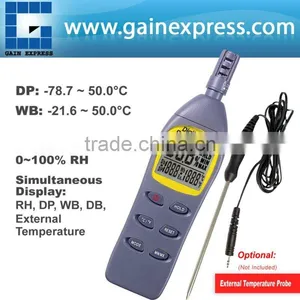

Portable Hygro-thermometer for RH, DB, DP, WB and External Temp C/F

Portable Hygro-thermometer for RH, DB, DP, WB and External Temp C/F thumbnail-1
Portable Hygro-thermometer for RH, DB, DP, WB and External Temp C/F photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Model Number:
A018706
Accuracy:
±0.6°C(temp); ±3%( RH)
Contact Supplier Request Quote Chat Now
Gain Express Holdings Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number A018706
Accuracy ±0.6°C(temp); ±3%( RH)

Specifications

Simultaneous Display WB(Wet Bulb), DP(Dew Point), and Temp
Quick to get DP & WB covering on application to HVAC&R industry

Pocket size, battery operated meterfor RH (humidity), DB (Dry Bulb), DP (Dew Point), WB (Wet Bulb), EX (External Temperature). The sensor is specially protected by tunable cap.



It is a microprocessor based design. A must device for HVAC engineers' use. No needto whirl themeter or refer to the chart. Easy to get WB/DB and DP temperature quickly!





Features:

  • Dew Point Range: -78.7 ~ 50.0°C
  • Wet Bulb Range: -21.6 ~ 50.0°C
  • Dew Point calculated in seconds.
  • Wet Bulb calculated in seconds.
  • Dew point and Wet BUlb Temperature display. No chart reference is needed.
  • Tunable cap to protect sensor.
  • External Temperature probe. (not included in the set)
  • Simultaneous LCD digital display Temp., RH, External Temperature, DP, WB.
  • Data Hold to capture readings.
  • Pocket size.
  • Low battery indication.
  • Fast response.
  • Accurate reading.
  • Maximum / Minimum and reset function.
  • Mcroprocessor circuitry for reliability.
  • Auto power off time frame selectable.
  • Disable power off.
  • Design with Capacitance type RH Sensor to get accurate and quick reading
  • External Probe for checking Quality and HVAC/R applications (not included in the set)
  • Temperature Unit °C /°F selectable
  • Hold Function to freeze current reading
  • Sleep mode can be disabled





Specifications:

  • Range:
    • Temp.: -20~50°C
    • RH: 0%~100%
  • Resolution:
    • Temp. : 0.1°C/0.1°F
    • RH:  0.1%
  • Accuracy:
    • Temp: ±0.6°C
    • RH: ±3%
  • Response time: 60seconds typical
  • Dew Point Range: -78.7 ~ 50.0°C
  • Wet Bulb Range: -21.6 ~ 50.0°C
  • External Temp. Range:  -20~70°C
  • External Temp. Accuracy: ±0.6°C(-20~50°C)
  • Storage Temp: -20~50°C
  • Storage RH:  Humidity <90%
  • LCD size: 28(H) x 33(W)mm
  • Dimension: 48.4 x 178.5 x 24.7 mm
  • Weight: ~100g
  • Battery: AAA x 2pcs



Set Includes:

  • 1 x main meter
  • 2 x AAA Battery
  • 1 x Operation Manual
  • 1 x Paper box



  • Optional Items (not included in set):
    Please inform us if you want any of the following optional items to be included in your order.
    • External Temperature Probe
    • Calibration Kits : 33% and 75% salt bottles
