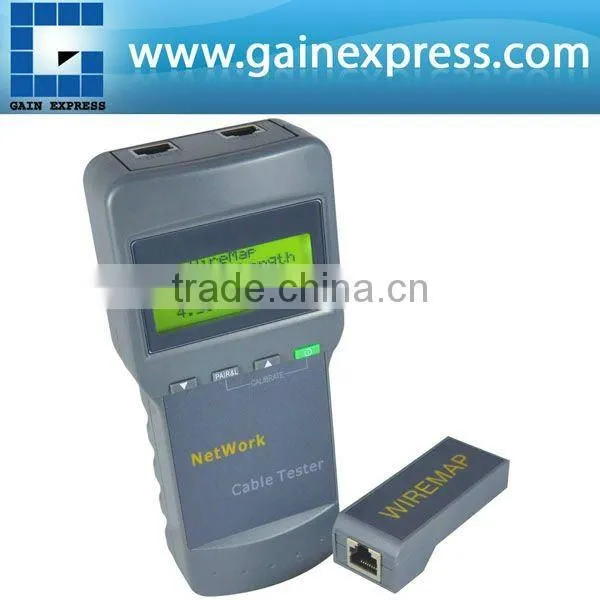

Digital Network Cable 5E, 6E, Coaxial Telephone Line Wire Length Tester w/ Backlight
Network Cable Tester is a powerful special tool to prevent and solve cable installation problem with the advantage of LCD Backlight. Network cable tester is the best choice to verify any speech and data cable installation procedure. The tester is capable to have a number of tests such as cable connection sequence,length ,user jumper and cable connection continuity and determine any open circuit, short circuit, jumper or cross-talk interference. It is a useful tool to reduce cable installation cost and save cable installation time.
Features:
- One person enough to complete cable continuity check.
- Backlight LCD disply
- Checks wiring error in 5E, 6E,coaxial and telephone line,Such as open circuit,short circuit,jumper wire, reverse connection or cross-talk interference
- Locates the wiring or connection error
- Measures cable length and determines the distance of open circuit and short circuit
- Dynamically calibrates cable length and makes length measurement as accurate as 97%
- Simple and easy use, big screen to display test clear
- Portable unit with long battery life (wait-case 50 hours)
- Automatically time-delay shut off
- Measures length and pair with or without far-end recognizer
- Locates cable and there are 8 far-end passive test jacks (ID no.: ID1 - ID 8)
- Far-end recognize with prompting voice
- Self-checking function and automatically compensates any change in battery capacity or ambient temperature.
- Single board computer software watchdog design and reliable operating
(NOTE: only1 Far-jack is included in set)
Specifications:
- Overall Dimension: 180 x 80 x 40mm

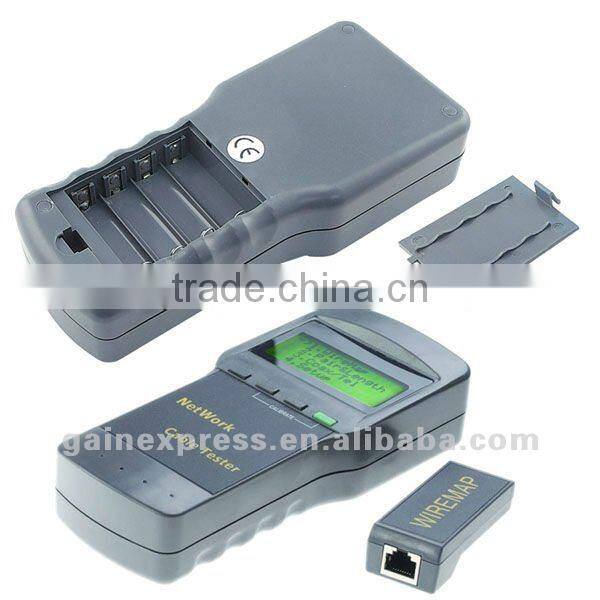

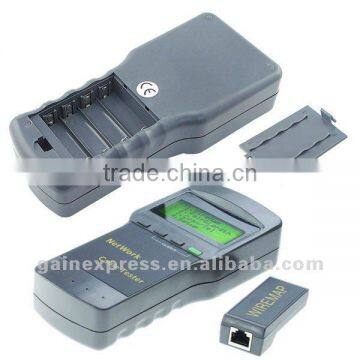

- Power Supply: 4 x 1.5V Size AA batteries w/ 16mA power consumption
- Display: Special 4 x 16 character big screen LCD lattice (valid visual field 61.6 x 25.5mm) with Backlight
-
Cable Tested
- STP/UTP twin twisted cable
- Ccoaxial cable
- Telephone line
- Working Ambient Temperature: -10~60°C
-
Tester Port
- Tester RJ45 master port(M)
- Tester LOOPBACK RJ45 port(L)
- Far-end recognizer RJ45 port(R)
The extra BNC and RJ11 converters are used to measure & check the continuity of coaxial cable and telephone line
- Length Measurement of Twin Twisted Cable
- Scope: 1350M(31,200ft)
- Calibration accuracy: 3%(±0.5M or ±.5ft)(calibrating cable≥5M)
- Shipment accuracy: 5%(±0.5M or ±1.5ft).(AMP,AT& T Class 5 cable)
- Display: M or ft.
- Length Calibration: User can set calibration factor by himself with a given length cable. The length of calibrating cable is more than 5M
- Wire Sequence and Locating Cable Error
- Automatic Time-delay Shut Off Time when idle in 30 minutes
Set includes:
- 1 x Main Unit
- 1 x Remote Identifier (ID1 ≥ ID8)
- English User Manual
- Colored Packaging Box
