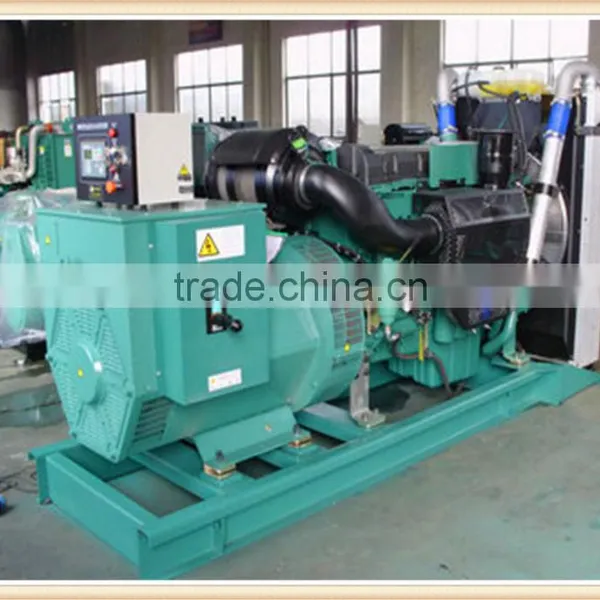

AC 120kw Water Cooled Volvo Penta Generator Set 150kva With TAD731GE Engine

Specifications

Volvo Penta Generator Set 150kva
1) OEM Volvo & Stamford
2) Low Fuel Consumption
3) One Year Warranty
4) CE & ISO 9001

AC 120kw Water Cooled Volvo Penta Generator Set 150kva With TAD731GE Engine



 volvo have been widely used in large and small automobiles, heavy-duty trucks, engineering machineries and ships. Moreover, they are the ideal drive force of power generation sets. Volvo engines have high load capability as well as fast and reliable cold start performance



Technical parameters of diesel generator sets:
Technical data
Genset Model	GNRV150
Prime Power	150kva
Rated Voltage	400/220V
Frequency	50Hz
Power Factor	0.8(lagging)
Dimension (L×W×H) (mm)	2400*870*1450
Genset weight (kg)	1560
Diesel Engine
Brand	VOLVO SERIES
Model	TAD731GE
Number of Cylinders	6
Total displacement(L)	7.15
Bore (mm)×Stroke(mm)	108/130
Fuel oil consumption rate g/kw.h	215
lubricating oil specification and grade	API-CD class above
Fuel oil specification and grade	China 0#(Light diesel oil)
Lubricating system	force and splash lubricating
Speed adjustment mode	Electron
Radiator	Introducing advanced technology for high-low water temperature radiator
Alternator
Brand	Stamford
Alternator Type	UCI274E
Power factor	0.8(Lagging)
Class of insulation	H
Degree of protection	IP23
Voltage regulation	Automatic voltage regulation(AVR)
Sustained Overexcite Time(s)	≥5
Telephone disturbance	THF less than 2% TIF less than 50
Machine winding	2/3 pitch
Winding temperature rise	H class





Control System
Manual/Automatic start & stop controller
Various Monitor Meter and Optional Switch
Remote control interface and Remote monitor/Remote Sense/Remote Meter (Optional)
MCCB for Short circuit & Overload (optional)
High water temperature alarm, Low oil pressure alarm, over speed alarm and other kind of alarm
