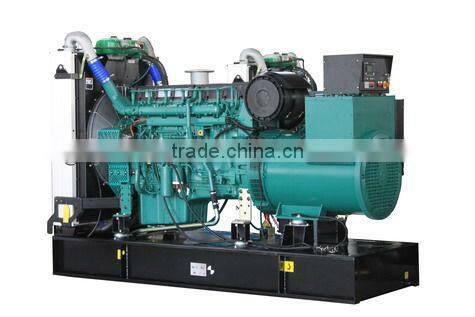

Volvo Penta 100kva 3 Pahase Generator

Specifications

Volvo Penta 100kva 3 Pahase Generator
1.Volvo Penta Engine& Stamford
2.four hours factory test
3.Warranty:12 months
4.CE

              Volvo Penta 100kva 3 Pahase Generator

 volvo Penta diesel engine have been widely used in large and small automobiles, heavy-duty trucks, engineering machineries and ships. Moreover, they are the ideal drive force of electric generator. Volvo engines have high load capability as well as fast and reliable cold start performance.





Volvo Penata 100kva  3 phase Generator



Technical data
Genset Model	GNRV100
Genset Output Power	100KVA/80KW
Rated Voltage	400V/230V
Frequency	50Hz
Power Factor(COS)	0.8(lagging)
Dimension (L×W×H)	2050*960*1450mm
Net weight	1150kg
Diesel Engine
Brand	Volvo
Model	TAD531GE
Engine Structure	4cylinder in line, 4 stroke, turbocharged
Rotating Speed	1500r/min
Engine Cooling Method	40OC Radiator, water cooling
Governor System	Precise Mechanical governor system
Starting Method	24V DC, with Silicon commutating charging motor
Engine Filter System	Dry type air filter, fuel filter, oil filter
Displacement	4.76L
Compression Ratio	18.0:1
Bore×Stroke	108*130mm
100% load fuel consumption	218g/kwh
Alternator
Brand	Marathon, stamford, Engga, etc
Excite Type	Brushless ,Self-exciting, AVR automatic voltage regulating
Connecting Type	3 Phase , 4 Wires
Steady Frequency Change	0~5%
No load voltage	≥95%~105%
Steady voltage	≤±1%
Insulation grade	H
Enclosure degree	IP21-IP23

















Control system for diesel generator set
a) Automatic alarm system: the unit hasunit has the acousto-optics alarm system and arreand arrestor for anr for any situation as the start defeat, the water is over tempeer temperature, the oil pulls down, over speed, over load and over current
b) Operation display:
i) Unit voltage, tri-phase load current and frequency display
ii) Water temperature, oil pressure display
iii) Fuel level, fuel temperature display
iv) Audible Audible and visual alarm lamps and buzzers

11) Starting system: DC battery is used to start engine
12) Filter system: oil, fuel and air filterr filter
13) Accessories: exhaust elbow, bellow, muffler

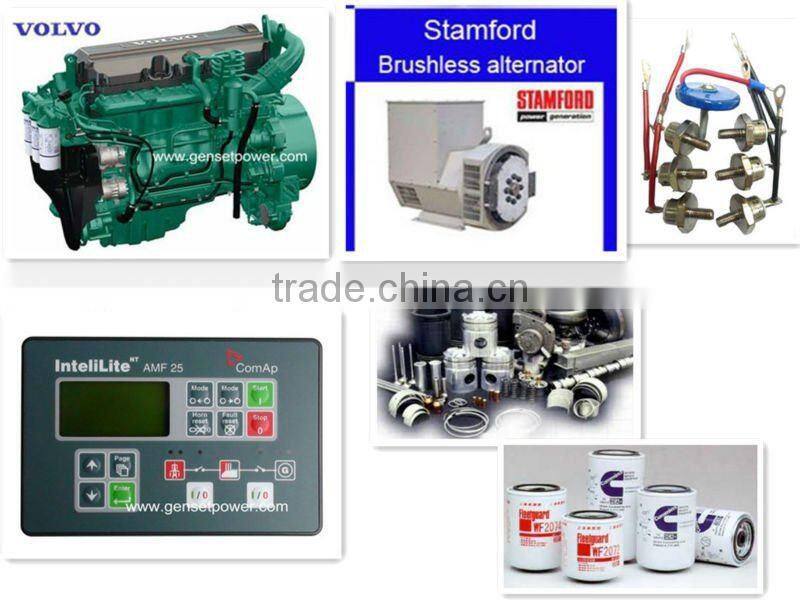

 Supply standard collocation:
a) Diesel engine with all accessories, 3 filter, electric systems
b) Alternator
c) Steel structure
d) Fan and water tank(Fan and water tank cooling system)
e) Flange connector
f) 12 / 24V starting motor and charge engine
g) Air cleaner, fuel cleaner, oil cleaner
h) On-board control panel
i) MCCB air conservation switch
j) 12 / 24V starting accumulator and Battery line
k) Set shock absorber
l) High-efficient silencer
