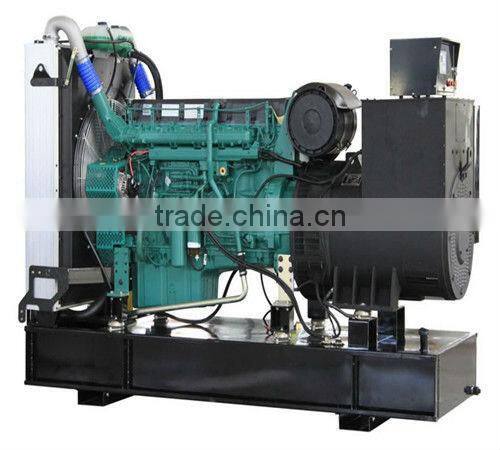

200kw Volvo Water Cooled Diesel Generator With CE Approved

200kw Volvo water cooled Diesel Generator with CE Approved

Prime diesel generator:Volvo engine(TAD734GE)+Marathon(MP-221-4A)/Stamford(UCDI274J14)/Verypower(EG280L-180N)+Auto-start controller:

  Be up to the GB2820.3 & ISO8525 G3 class standard, YD/T502- Technical Requirement.
Voltage Regulation(%): Steady state≤±1  Transient state-15~ +20
Frequency Regulation(%):Steady state≤±1  Transient state-7~ +10
Voltage Fluctuation ratio(%): ≤0.5
Frequency Fluctuation ratio(%): ≤0.5
Voltage stabilization time (When the load changes suddenly): ≤1S
Frequency stabilization time (When the load changes suddenly): ≤3S
Waveform Distortion(%): ≤5
Radio interference Suppression: Be accordant with the standard of VDE0875-N Class & GB2820
To meet the customer need, we can also provide 50Hz generator set which is accordant with the International regulation.

Diesel Engine:
Stroke: 4

Combustion system:  Electronic spray;
Start: DC start;
Cooling: Coolant radiator with fan.

AC Alternator:
Structure Characteristics: Single bearing, automatic voltage regulation(AVR);
Excitation: Brushless & self-excited;
Insulation: H grade;
Level of protection: IP 21 or IP 23.

Control Box:
Manual/Automatic start & stop controller;
Various Monitor Meter and Optional Switch;
Remote control interface and Remote monitor/Remote Sense/Remote Meter (Optional);
MCCB for Short circuit & Overload (optional);
High water temperature alarm, Low oil pressure alarm, Over speed alarm and other kind of alarm.


Standard scope of supply:
Diesel engine(with all standard accessories, filters and electric system);
Radiator (with water tank and fan);
Alternator;
Control panel;
Steel base frame;
All above parts are assembled into a whole.

Other standard parts
Effective muffle;
Exhaust elbow;
Belows;
Storage battery and connection wires;
Shock absorber;
Technical documents.
