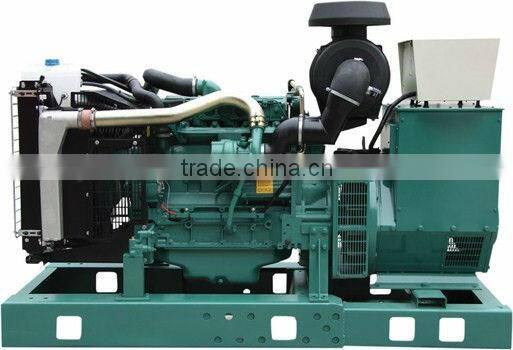

Volvo Penta Generator 400kw
volvo Penta have been widely used in large and small automobiles, heavy-duty trucks, engineering machineries and ships. Moreover, they are the ideal drive force of power generation sets. Volvo penta engines have high load capability as well as fast and reliable cold start performance
| Technical parameters of diesel generator sets: | |
| Technical data | |
| Genset Model | GNRV400 |
| Prime Power | 400KW |
| Rated Voltage | 400/220V |
| Frequency | 50Hz |
| Power Factor | 0.8(lagging) |
| Dimension (L×W×H) (mm) | 3300*1160*2000 |
| Genset weight (kg) | 3800 |
| Diesel Engine | |
| Brand | VOLVO Penta |
| Model | TAD1641GE |
| Number of Cylinders | 6 |
| Total displacement(L) | 16.12 |
| Bore (mm)×Stroke(mm) | 144/165 |
| Fuel oil consumption rate g/kw.h | 200 |
| lubricating oil specification and grade | API-CD class above |
| Fuel oil specification and grade | China 0#(Light diesel oil) |
| Lubricating system | force and splash lubricating |
| Speed adjustment mode | Electron |
| Radiator | Introducing advanced technology for high-low water temperature radiator |
| Alternator | |
| Manufacturer | MARATHON Electric Manufacturing Corporation |
| Brand | MARATHON |
| Alternator Type | |
| Power factor | 0.8(Lagging) |
| Class of insulation | H |
| Degree of protection | IP23 |
| Voltage regulation | Automatic voltage regulation(AVR) |
| Sustained Overexcite Time(s) | ≥5 |
| Telephone disturbance | THF less than 2% TIF less than 50 |
| Machine winding | 2/3 pitch |
| Winding temperature rise | H class |
Control system:
1) Automatic alarm system: the unit hasunit has the acousto-optics alarm system and arreand arrestor for anr for any situation as the start defeat, the water is over tempeer temperature, the oil pulls down, over speed, over load and over current
2) Operation display:
i) Unit voltage, tri-phase load current and frequency display
ii) Water temperature, oil pressure display
iii) Fuel level, fuel temperature display
iv) Audible Audible and visual alarm lamps and buzzers
optional:
1)Auto-remove Monitor Panel
2)Auto Transfer System(ATS)
3)Auto-combine Cabinet
4)Sound proof canopy
5)Intelligent controlling system
