Specifications
Sweden Original Volvo Penta Diesel Generator-OEM Volvo
-Stamford alternator
-Deepsea controller
-Stable Performance

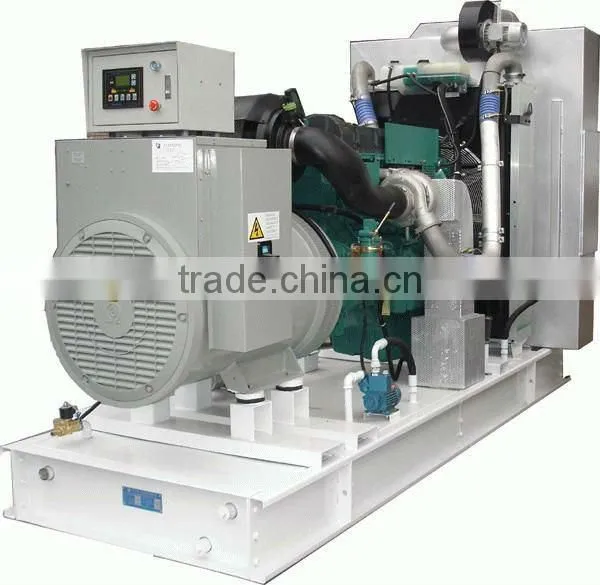

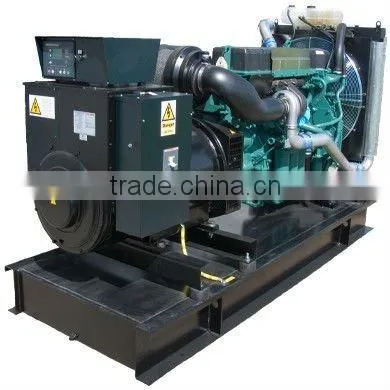

Sweden Original Volvo Penta Diesel Generator
volvo have been widely used in large and small automobiles, heavy-duty trucks, engineering machineries and ships. Moreover, they are the ideal drive force of power generation sets. Volvo engines have high load capability as well as fast and reliable cold start performance
| Genset Model | Prime Power | Standby Power | Engine | Fuel Consumption | Cylinder No. | Displacement | Bore X Stroke | ||
| KW | KVA | KW | KVA | (g/kwh) | (L ) | (mm) | |||
| GNRV95 | 68 | 85 | 76 | 95 | TD520GE | ≤213 | 4 | 4.67 | 108*130 |
| GNRV110 | 80 | 100 | 88 | 110 | TAD531GE | ≤211 | 4 | 4.67 | 108*130 |
| GNRV137 | 100 | 125 | 110 | 137 | TAD532GE | ≤204 | 4 | 4.67 | 108*130 |
| GNRV165 | 120 | 150 | 132 | 165 | TAD731GE | ≤204 | 6 | 6.51 | 108*130 |
| GNRV200 | 144 | 180 | 160 | 200 | TAD732GE | ≤204 | 6 | 6.73 | 108*130 |
| GNRV225 | 160 | 200 | 180 | 225 | TAD733GE | ≤204 | 6 | 7.28 | 108*130 |
| GNRV275 | 200 | 250 | 220 | 275 | TAD734GE | ≤200 | 6 | 7.28 | 108*135 |
| GNRV350 | 250 | 312 | 280 | 350 | TAD941GE | ≤198 | 6 | 9.36 | 131*150 |
| GNRV413 | 300 | 375 | 330 | 413 | TAD1241GE | ≤198 | 6 | 12.3 | 131*150 |
| GNRV450 | 320 | 400 | 360 | 450 | TAD1242GE | ≤198 | 6 | 12.3 | 131*150 |
| GNRV500 | 360 | 450 | 400 | 500 | TAD1640GE | ≤198 | 6 | 16.12 | 144*165 |
| GNRV560 | 400 | 500 | 450 | 560 | TAD1641GE | ≤198 | 6 | 16.12 | 144*165 |
| GNRV625 | 450 | 563 | 500 | 625 | TAD1642GE | ≤198 | 6 | 16.12 | 144*165 |
| GNRV688 | 500 | 625 | 550 | 688 | TAD1643GE | ≤198 | 6 | 16.12 | 144*165 |
The specification of engine:
1) Genuine Sweden volvo industrial diesel engine
2) Multi-cylinder in-line or veer engine, 4-stroke, direct injection
3)Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4)Machinery or electronic governing
5) Fuel injection pump
6) Electric motor starting system
7) Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder line
8)Low discharge, and low fuel consumption
9) Installed conveniently and maintain easily
The specification of alternator:
1)alternator model: stamford, Leroy, Marathon.Engga
2)regulator: AVR automatic voltage regulating
3)insulation degree: H degree
4)power factor:3 phase 4 wire
5)Motor: bronze brushless
6) IP21-23 enclosure
Control system:
1) Automatic alarm system: the unit hasunit has the acousto-optics alarm system and arreand arrestor for anr for any situation as the start defeat, the water is over tempeer temperature, the oil pulls down, over speed, over load and over current
2) Operation display:
i) Unit voltage, tri-phase load current and frequency display
ii) Water temperature, oil pressure display
iii) Fuel level, fuel temperature display
iv) Audible Audible and visual alarm lamps and buzzers
optional:
1)Auto-remove Monitor Panel
2)Auto Transfer System(ATS)
3)Auto-combine Cabinet
4)Sound proof canopy
5)Intelligent controlling system
