Home > Products > VOLVO generator set > Industrial Heavy Duty 400kw Volvo Diesel Generator with Stamford Alternator

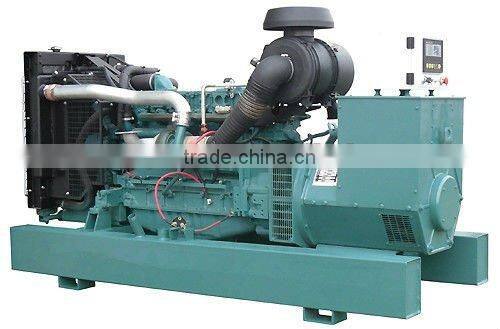

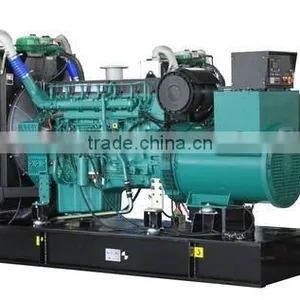

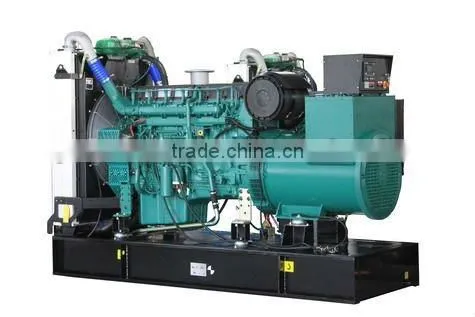

Industrial Heavy Duty 400kw Volvo Diesel Generator with Stamford Alternator
- 200 Set / Sets per Month
- Shenzhen
- T/T
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Volvo | Model Number: | GNRV |
Output Type: | AC Three Phase | Speed: | 1500rpm or 1800rpm | Frequency: | 50Hz or 60Hz |
Rated Power: | 500KVA | Rated Voltage: | 220V/380V, 230V/400V, 240V/415V | Rated Current: | 720A |
Product Description
Industrial Heavy Duty 400kw Volvo Diesel Generator with Stamford Alternator
volvo have been widely used in large and small automobiles, heavy-duty trucks, engineering machineries and ships. Moreover, they are the ideal drive force of power generation sets. Volvo engines have high load capability as well as fast and reliable cold start performance
Technical parameters of diesel generator sets: | |
Technical data | |
Genset Model | GNRV400 |
Prime Power | 400KW |
Rated Voltage | 400/220V |
Frequency | 50Hz |
Power Factor | 0.8(lagging) |
Dimension (L×W×H) (mm) | 3300*1160*2000 |
Genset weight (kg) | 3800 |
Diesel Engine | |
Brand | VOLVO SERIES |
Model | TAD1641GE |
Number of Cylinders | 6 |
Total displacement(L) | 16.12 |
Bore (mm)×Stroke(mm) | 144/165 |
Fuel oil consumption rate g/kw.h | 200 |
lubricating oil specification and grade | API-CD class above |
Fuel oil specification and grade | China 0#(Light diesel oil) |
Lubricating system | force and splash lubricating |
Speed adjustment mode | Electron |
Radiator | Introducing advanced technology for high-low water temperature radiator |
Alternator | |
Manufacturer | MARATHON Electric Manufacturing Corporation |
Brand | MARATHON |
Alternator Type | |
Power factor | 0.8(Lagging) |
Class of insulation | H |
Degree of protection | IP23 |
Voltage regulation | Automatic voltage regulation(AVR) |
Sustained Overexcite Time(s) | ≥5 |
Telephone disturbance | THF less than 2% TIF less than 50 |
Machine winding | 2/3 pitch |
Winding temperature rise | H class |
Control system:
1) Automatic alarm system: the unit hasunit has the acousto-optics alarm system and arreand arrestor for anr for any situation as the start defeat, the water is over tempeer temperature, the oil pulls down, over speed, over load and over current
2) Operation display:
i) Unit voltage, tri-phase load current and frequency display
ii) Water temperature, oil pressure display
iii) Fuel level, fuel temperature display
iv) Audible Audible and visual alarm lamps and buzzers
optional:
1)Auto-remove Monitor Panel
2)Auto Transfer System(ATS)
3)Auto-combine Cabinet
4)Sound proof canopy
5)Intelligent controlling system
