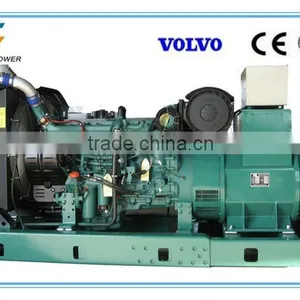

Help CenterHot Sale 100KVA Volvo Diesel Electric Generator With Competitive Price
Related Products
-
250kva Volvo Diesel Generator Power PlantNegotiableMOQ: 1 Set -
Electric Start Diesel Generator 200kva With Volvo EngineUS$ 12,625 - 26,985MOQ: 1 Set
-
68kw to 500kw Electric Generator VolvoUS$ 5,000 - 99,999MOQ: 1 Set
-
Volvo 150kva Diesel Generator SetUS$ 5,000 - 99,999MOQ: 1 Set
-
Original Sweden 200kw Volvo Diesel Power Generator SetUS$ 24,595 - 27,489MOQ: 1 Set
Specifications
Volvo diesel electric generator1.OEM top quality
2.four hours factory test
3.Warranty:12 months
4.ISO9001:2000,CE
volvo diesel engine have been widely used in large and small automobiles, heavy-duty trucks, engineering machineries and ships. Moreover, they are the ideal drive force of electric generator. Volvo engines have high load capability as well as fast and reliable cold start performance.
Volvo diesel electric generator
| Genset Model | Prime Power | Standby Power | Engine | Fuel Consumption | Cylinder No. | Displacement | Bore X Stroke | ||
| KW | KVA | KW | KVA | (g/kwh) | (L ) | (mm) | |||
| GNRV95 | 68 | 85 | 76 | 95 | TD520GE | ≤213 | 4 | 4.67 | 108*130 |
| GNRV110 | 80 | 100 | 88 | 110 | TAD531GE | ≤211 | 4 | 4.67 | 108*130 |
| GNRV137 | 100 | 125 | 110 | 137 | TAD532GE | ≤204 | 4 | 4.67 | 108*130 |
| GNRV165 | 120 | 150 | 132 | 165 | TAD731GE | ≤204 | 6 | 6.51 | 108*130 |
| GNRV200 | 144 | 180 | 160 | 200 | TAD732GE | ≤204 | 6 | 6.73 | 108*130 |
| GNRV225 | 160 | 200 | 180 | 225 | TAD733GE | ≤204 | 6 | 7.28 | 108*130 |
| GNRV275 | 200 | 250 | 220 | 275 | TAD734GE | ≤200 | 6 | 7.28 | 108*135 |
| GNRV350 | 250 | 312 | 280 | 350 | TAD941GE | ≤198 | 6 | 9.36 | 131*150 |
| GNRV413 | 300 | 375 | 330 | 413 | TAD1241GE | ≤198 | 6 | 12.3 | 131*150 |
| GNRV450 | 320 | 400 | 360 | 450 | TAD1242GE | ≤198 | 6 | 12.3 | 131*150 |
| GNRV500 | 360 | 450 | 400 | 500 | TAD1640GE | ≤198 | 6 | 16.12 | 144*165 |
| GNRV560 | 400 | 500 | 450 | 560 | TAD1641GE | ≤198 | 6 | 16.12 | 144*165 |
| GNRV625 | 450 | 563 | 500 | 625 | TAD1642GE | ≤198 | 6 | 16.12 | 144*165 |
| GNRV688 | 500 | 625 | 550 | 688 | TAD1643GE | ≤198 | 6 | 16.12 | 144*165 |
Volvo Diesel Electric Generator
Specifications of electric generator
1) Output range: from 68KW (85kVA) up to 500kW (625kVA)
2) Diesel engine: Volvo series diesel engine
3) Alternator: Stamford, Marathon, Leroy Somer and Chinese brand with brushless
and "H" Class Insulation.
4) Forced curcuit Water-cooled
5) 8hrs operation base tank
6) Key start/auto startto start
7) Soundproof/weatherprooc, weatherproof canopy optional
8) 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wires alternating current
9) Standard configuration of electric generator
a) Engine: Volvo series diesel engine
b) Engine type: water-cooled, in line four-stoke, direct injection
c) Alternatolternator: brushless alterna alternator
10)Control system for electric generator:
a) Automatic alarm system: the unit hasunit has the acousto-optics alarm system and arreand arrestor for anr for any situation as the start defeat, the water is over tempeer temperature, the oil pulls down, over speed, over load and over current
b) Operation display:
i) Unit voltage, tri-phase load current and frequency display
ii) Water temperature, oil pressure display
iii) Fuel level, fuel temperature display
iv) Audible Audible and visual alarm lamps and buzzers
11) Starting system: DC battery is used to start engine
12) Filter system: oil, fuel and air filterr filter
13) Accessories: exhaust elbow, bellow, muffler
14) Supply standard collocation:
a) Diesel engine with all accessories, 3 filter, electric systems
b) Alternator
c) Steel structure
d) Fan and water tank(Fan and water tank cooling system)
e) Flange connector
f) 12 / 24V starting motor and charge engine
g) Air cleaner, fuel cleaner, oil cleaner
h) On-board control panel
i) MCCB air conservation switch
j) 12 / 24V starting accumulator and Battery line
k) Set shock absorber
l) High-efficient silencer
15) Warranty
1 year or 1000 hours
Promise is promise.
We make the promise that we offer life-time and free technological support and problem solutions
Genor Power will also provide spare parts and technology for free in warranty, which for troubles caused by the shortness and defect of design and manufacture of electric generator.
Even some failures happen because of failure operation or after applicable expiration date, we also try our best to offer service.
