Specifications
Generator 30kv1.UK Engine & Stamford Alternator
2.Low Fuel Consumption
3.Globally Servic
4.CE Certificate

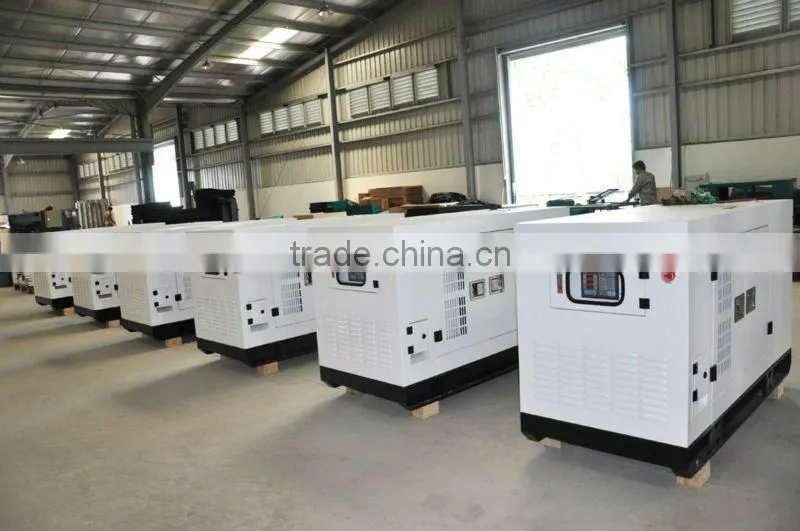

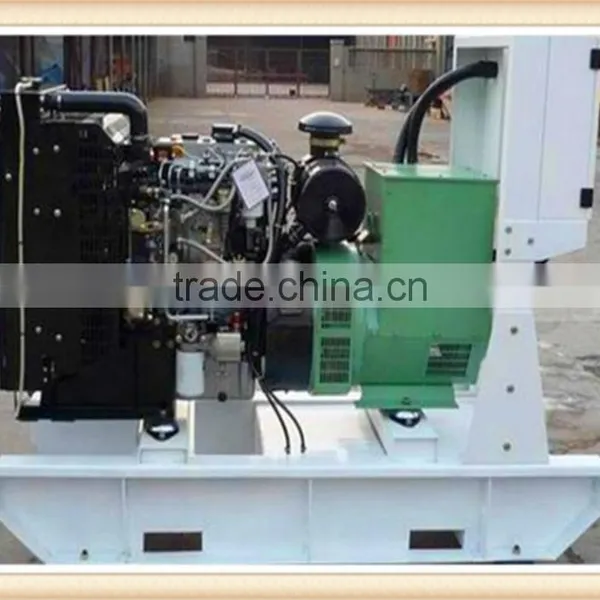

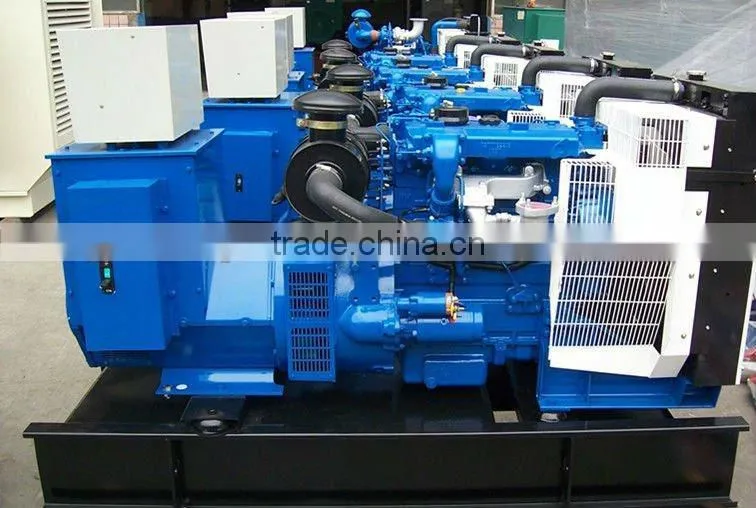

Diesel Generator 30kv
MODEL :GNRP30
Output Power:30kva
General Features:
- Engine( 404D-22TG )
- Radiator 40 C max, fans are driven by belt, with safety guard
- 24V charge alternator
- Alternator: single bearing alternator IP23, insulation class H/H
- Absorber
- Dry type air filter, fuel filter, oil filter
- Main line circuit breaker
- Standard control panel
- Two12V batteries, rack and cable
- Ripple flex exhaust pipe, exhaust siphon, flange, muffler
- User manual
Engine Data
Model: 404D-22TG,4-cycle
Air Intake System:turbo
Fuel Injection System:Direct Injection
Cylinder Arrangement:4 in line
Displacement:2.216L
Bore and Stroke:84×100(mm)
Compression Ratio:23.3:1
Rated RPM:1500rpm
Max. Standby Power at Rated RPM:27.1KW/37.1HP
Governor Type:Mechanica
Exhaust System
Exhaust Gas Flow(after turbo):3.94m3/min
Exhaust Temperature:505°C
Max Back Pressure:10.2kPa
Air Intake System
Max Intake Restriction:6.4kPa
Consumption:1.45m3/min
Air Flow:40.2m3/min
Fuel System
100%( Prime Power) Load:243g/KWh
75%(Prime Power) Load:243g/KWh
50%(Prime Power) Load:265g/KWh
Oil System
Total Engine Oil Capacity:10.6L
Engine Oil Tank Capacity:10L
Min Oil Pressure at Rated RPM:352-448kPa
Cooling System
Total Coolant Capacity:7L
Alternator Data
Number of Phase:3
Connecting Type:3 Phase and 4 Wires, “Y” type connecting
Number of Bearing:1
Power Factor:0.8
Protection Grade:IP21-23
Altitude:≤1000m
Exciter Type:Brushless, self-exciting
Insulation Class, Temperature Rise:H/H
Telephone Influence Factor (TIF):<50
THF:<2%
Voltage Regulation, Steady State:≤±1%
Alternator Capacity:30KVA
Auto Module Control Panel
the configuration for nobody on duty controlling Perkins Silent Generator 30kva . This kind of panel adopts auto module control system, with large LCD display to show the menu.
