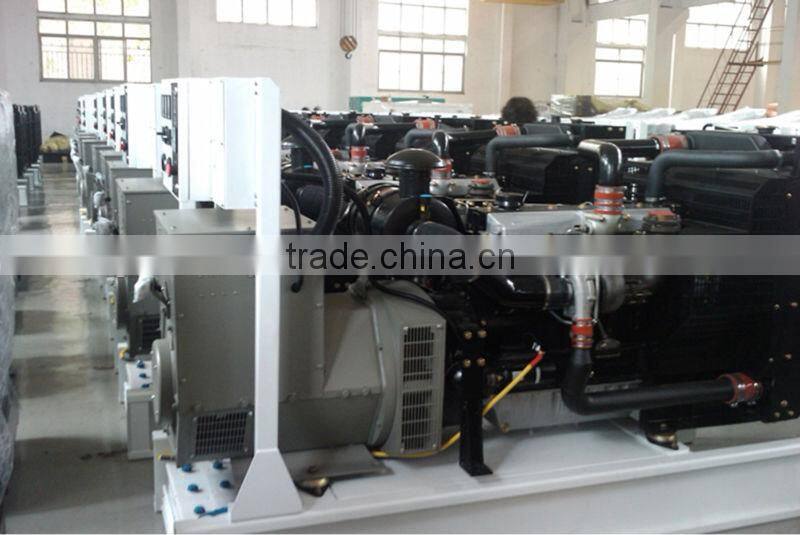

Industiral power 120kw Silent Diesel Genset with Perkins Engine
3-PH, 50Hz@1500RPM, 400/230V
1.Composed of UK imported diesel engine and Stamford or Leroy Somer alternator
2.12V DC start motor and storage battery
3.Brushless, Self-excited, IP23, insulation class H alternator
4.40°C radiator as standard, 50°C is optional
5.Key start panel control system as standard, digital auto-start panel is optional
6.8-hour operation base tank
7.All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load, 110% load and all protection function (overspeed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)
Prime Power |
120KW/150KVA | Standby Power |
132KW/165KVA |
Rated Speed |
1500RPM |
Output Frequency |
50HZ |
Phase |
3 |
Rated Voltage |
400V |
Engine Model |
1006TAG2 |
Alternator Model |
UCI274F |
Fuel Consumption of 100% load |
41L/H |
Fuel Consumption of 75% load |
31L/H |
Voltage Regulation Rate |
≤±1% |
Random Voltage Rate |
≤±1% |
Frequency Regulation Rate |
≤±5% |
Random Frequency Variation |
≤±0.5% |
Dimension (open type) |
2000×750×1250(mm) | Weight (open type) |
1270kg |
Dimension(silent type) |
2680×900×1550(mm) | Weight (silent type) |
1530kg |
Diesel Engine
Engine Model |
1006TAG2 |
Number of Cylinder |
6 |
Cylinder arrangement |
Vertical in-line |
Cycle |
Four Stroke |
Aspiration |
Turbocharged |
Bore×Stroke (mm×mm) |
100×127 |
Displacement (L) |
5.99L |
Compression Ratio |
17.0:1 |
Prime Power/Speed(KW/rpm) |
143/1500 |
Standby Power/Speed(KW/rpm) |
178.8/1500 |
Speed Governor |
Mechanical |
Cooling System |
Water-cooled, 4°C Radiator As Standard, 50°C Is Optional |
Speed Stability(%) |
≤5% |
Total Lubrication System Capacity (L) |
19.0 |
Coolant Capacity(without radiator) (L) |
41.0 |
Fuel Consumption at 100% Load(g/kwh) |
41(at 1500RPM) |
Starter Motor |
DC12V |
Alternator |
AC12V |
Alternator Specifications
Alternator Model |
UCI274F |
Alternator Brand |
Stamford |
Exciter Type |
Brushless, Self-excited |
Rated Output |
160kva |
Rated Speed |
1500RPM |
Rated Frequency |
50HZ |
Phase |
Three |
Rated Voltage |
400V (Available with customer requirements) |
Power Factor |
0.8 |
Voltage Adjust Range |
≥5% |
Voltage Regulation NL-FL |
≤±1% |
Insulation Grade |
H |
Protection Grade |
IP21-23 |
Standard Genset Controller
Our standard genset controller provides functions as follows:
1.Start/Stop controller
2.Ampere meter
3.Voltmeter and selector switch
4.Frequency meter/ Water temperature gauge/ Oil pressure gauge/ Hour counter/ Battery voltage meter
5.Emergency stop pushbutton
6.Alarm System: Over speed, High Engine Temperature, Low Oil Pressure, Charge Fail
7.Protection System: Over speed, High Engine Temperature, Low Oil Pressure, Emergency Stop, and the other protection function pre-setting
