Specifications

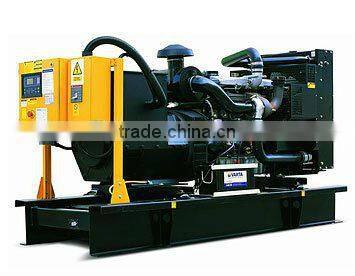

17 KVA Generator- Diesel Engine
-Prime Power:17 kva
-10 hrs Fuel Base Tank
-ISO9001 &CE
Super Silent ! 17 KVA Generator
The structure is small and exquisite and light ,with beautiful sound insulation covered, put and dismantle simple and easily, reduce the noise effectively, it is easy to operate. Use the famous-brand electrical machinery , the high-standard generator (design the style according to your need), totally enclosed automatic voltage regulator, superior performance, and reliable to operate.
Genset feature
1) Composed of diesel engine and alternator
2) Genset output: 17KVA /13.6KW
Rated current: 24.54A
Rated speed: 1,500Rpm /1800Rpm
Rated frequency: 50Hz(60 also available)
Rated voltage: 400 / 230V
Silent level: <68dB
Use:can be used for the open type and the soundproof type,automatic type,trailer type and etc
Engine specification:
| Model | 404D-22G |
| Prime power | 16.2KW / 20.3KVA |
| Standby power | 17.8KW /22.3KVA |
| Number of cylinder | 4 |
| Cylinder arrangement | Vertical-in-line |
| Cycle | 4 stroke |
| Aspiration | Naturally aspirated |
| Combusion system | Indirect injection |
| Compression ratio | 23.3:1 |
| Bore x Stroke | 84 x 100 mm |
| Displacement | 2.216 L |
| Diredtion of ratation | Anti-clockwise viewed on flywheel |
| Cooling system | Water cooled |
| Total coolant capacity | 7.0 Liters |
| Total Lubrication | 10.6 Liters |
| Fuel consumption(Prime) | 6.2 L/H |
Alternator sepecification:
| Brand | Stamford |
| Model | PI144D |
| Rated output | 17KVA / 13.6KW |
| Phase/Connect |
3phase 4wire ,Y type connection |
| Excition Model |
Self-excite,automatic voltage regulation,Insulation: H,Bruhless, Enclosure:IP23 |
| Power Factor | 0.8 |
| The regulating rate of instantaneous voltage: | -15%~ +20% |
| The time of steady voltage: | ≤1.5sec |
| The waving rate of voltage: | ≤1.0% |
| The regulating rate of steady frequency: | ≤5% |
| regulating rate of instantaneous frequency: | ≤±10% |
| The time of steady frequency: | 3sec |
| The waving rate of frequency: | ≤1% |
Control system:
1 a) Automatic alarm system: the unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current
b) Operation display:
i) Unit voltage, tri-phase load current and frequency display
ii) Water temperature, oil pressure display
iii) Fuel level, fuel temperature display
iv) Audible and visual alarm lamps and buzzers
2 Starting system: DC alternator is used to start engine
3 Short circuit protection: MCCB air switch
4 Cooling system: combined cooling water tank fitted to meet the requirement of radiation at ambient temperature 40°C.

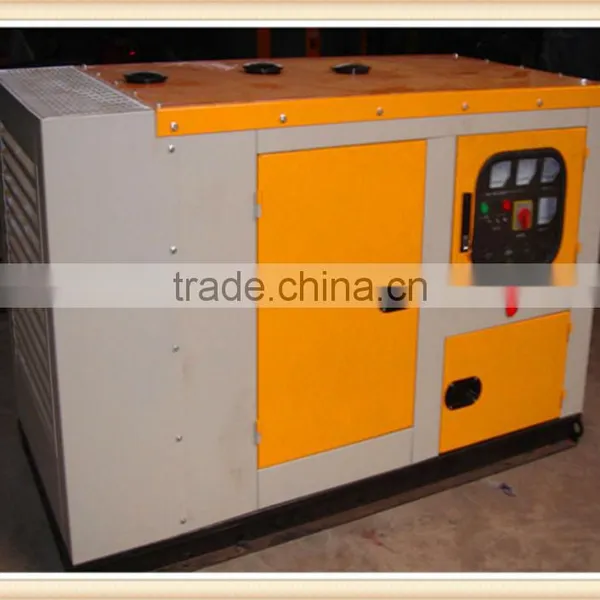

Sound proof canopy:
1)With steel sheet
2)Stainless steel locks
3)Control panel viewing window for monitoring the status of the generator set
4)Good ventilation system and anti-heat radiation construction
5)Effective anti-vibration devices to ensure the generator set run steadily
6)Super silent materials inside to ensure the noise lower than 70 dB 7 meters away
7)Emergency stop button mounted outside
8)Side lockable door easy for maintenance and installation
9)Lube oil and cooling water drains piped to exterior of the canopy
Standard configuration of pekins:
1. Starting system: DC alternator is used to start engine
2. Short circuit protection: MCCB air switch
3. Cooling system: combined cooling water tank fitted to meet the requirement of radiation at ambient temperature 40°C
4. Filter system: oil, fuel and air filte
5. Accessories: exhaust elbow, bellow, muffler
