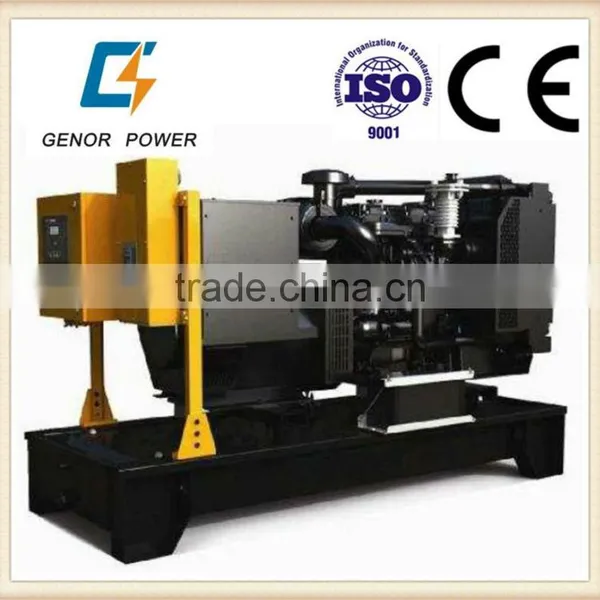

With Perkins Diesel Engine 60kva backup Generators
power generator have earned a reputation for ease of service along with low costs of maintenance and repair and all Power part products carry an unequivocal 12-months warranty from date of purchase.
Generator Model |
GNRP60 |
|
Prime |
Standby |
|
Generator power(KVA) |
60 |
66 |
Generator power(KW) |
48 |
52.8 |
Engine power(KW) |
Rated power:66KW |
|
Rated current (A) |
87 |
|
Frequency (Hz) |
50/60 |
|
Engine manufacture |
UK Imported |
|
Engine model |
1004TG |
|
Engine type |
water-cooled, in line, 4-stroke, direct injection |
|
Intake type |
Turbocharged |
|
No. of cylinder |
4.L |
|
Bore x stroke |
100x127mm |
|
Compression ratio |
16.0:1 |
|
Governing method |
Electric governor less 1% |
|
Mechanical Governor Rate |
Mechanical governor less 5% |
|
Starting method |
DC24V Electrical |
|
Noise level (dBA) |
less 95 |
|
Rated Fuel Consumption(L/h) |
13.5 |
|
Lubal oil capacity(L) |
8.1 |
|
Alternator model |
Stamford UCI 224E |
|
Voltage regulation |
AVR less±1 |
|
Exciting method |
Brushless |
|
Rated power factor |
0.8 LAG |
|
Connect method |
three-phrase four-wire |
|
Insulation class |
H |
|
Protection class |
IP23 |
|
Dimensions(L* W*H)(mm) |
2200x845x1650 |
|
Gross weight(kg) |
1000 |
|
Control Panel
1. Key switch (manual type) control panel
Shock resist is fitted between control panel and generator set. Loose sheet is also fitted. The equipments of control panel are Meters with Voltmeter,Ammeter,Frequency list,Water thermometer,Oil pressure gauge,Hour meter.
2. Control parts
Start/stop key switch, start button, emergency stop button, voltage regulation
resistance, speed regulation resistance. Voltage phase switch ,Electric current phase selecting switch.
3. Protection setting for engine
For emergency shut down, overfeed, high water temperature, low oil pressure. ATS switch is optional components when some accidents appear, The digital Protector can shut dow
Automatic alarm system: the unit has the acousto-optics alarm system and
arrestor for any situation as the start defeat, the water is over temperature, the oil
pulls down, over speed, over load and over current.
Cooling system: combined cooling water tank fitted to meet the requirement
of radiation at ambient temperature 40°C
Filter system: oil, fuel and air filter
Accessories: exhaust elbow, bellow, muffler
