2mw Turbo Generator Set

2mw Turbo Generator Set thumbnail-1
2mw Turbo Generator Set photo-1
US$ 3,000 - 110,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
UK
Model Number:
GNRP
Contact Supplier Request Quote Chat Now
Shenzhen Genor Power Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name UK
Model Number GNRP
Output Type AC Three Phase
Speed 1500rpm or 1800rpm
Frequency 50Hz or 60 Hz
Rated Power 15KVA to 1000KVA
Rated Voltage 220V/380V, 230V/400V, 240V/415V
Rated Current 20A to 1400A

Specifications

turbo generator set
1. Engine 2806A-E18TAG2
2. 380V Stamford brushless alternator
3. Smartgen contorller
4.1 year warranty

           turbo generator set

2mw turbo generator set











Specification of  10KVA to1000KVA  turbo generator set



Genset Model Prime Power Standby Power Engine Fuel Consumption Cylinder No. Displacement Bore X Stroke
KW KVA KW KVA (g/kwh)  (L ) (mm)
GNRP10 7.3 9.1 8 10 403D-11 252 3 1.131 77*81
GNRP15 10.6 13.25 12 15 403D-15 264 3 1.496 84*94
GNRP23 16 20 18 23 404D-22 243 4 2.216 84*100
GNRP33 24 30 26 33 1103A-33G 210 3 3.3 105*127
GNRP50 36 45 40 50 1103A-33TG1 212 3 3.3 105*127
GNRP65 48 60 52 65 1103A-33TG2 211 3 3.3 105*127
GNRP73 52 65 58 73 1104A-44TG1 207 4 4.4 105*127
GNRP88 64 80 70 88 1104A-44TG2 213 4 4.4 105*127
GNRP103 75 94 82 103 1006TG1A 210 6 5.99 100*127
GNRP150 110 138 120 150 1006TAG 205 6 5.99 100*127
GNRP165 120 150 132 165 1006TAG2 205 6 5.99 100*127
GNRP225E 165 206 180 225 1306C-E87TAG3 220 6 8.7 116.6*135.9
GNRP250E 180 225 200 250 1306C-E87TAG4 219 6 8.7 116.6*135.9
GNRP259E 188 235 207 259 1306C-E87TAG5 221 6 8.7 116.6*135.9
GNRP275E 200 250 220 275 1306C-E87TAG6 223 6 8.7 116.6*135.9
GNRP344E 250 313 275 344 2206C-E13TAG2 201 6 14.6 137*165
GNRP388E 280 350 310 388 2206C-E13TAG2 198 6 14.6 137*165
GNRP450E 320 400 360 450 2206C-E13TAG3 201 6 14.6 137*165
GNRP500E 360 450 400 500 2506C-E15TAG1 216 6 15 137*171
GNRP550E 400 500 440 550 2506C-E15TAG2 211 6 15 137*171
GNRP625E 450 563 500 625 2806A-E18TAG1A 196 6 18.13 145*183
GNRP700E 508 635 560 700 2806A-E18TAG2 203 6 18.13 145*183
GNRP800 580 725 640 800 4006-23TAG2A 199 6 22.921 160*190
GNRP900 640 800 720 900 4006-23TAG3A 200 6 22.921 160*190
GNRP1000 720 900 800 1000 4008-TAG1A 206 8 30.561 160*190



Genaral technical data for  turbo  generator set

1.Engine: Genuine UK  industrial diesel engine

2.Alternator: Genuine stamford. Leroy somer, marathonm, engga alternator

3.Output range: 15kva-1000kva prime

4.Frequency: 50Hz & 60Hz

5.Speed: 1500 & 1800rpm

6.Phase: 3 phase 4 wire & 1 pahse 2 wire

7.Voltage: 220/380, 230/400, 240/415, etc

8.Automatic digital control panel, auto start with AMF function



Genset Features :

1. Genuine UK  industrial diesel engine

2. Radiator 40°C max, fans are driven by belt, with safety guard

3. Genuine stamford. Leroy somer, marathonm, engga alternator

4. Choice of manual/auto and AMF control panels and protection systems

5. Digital auto-start panel

6. Anti Vibration Suspension Absorber

7. Dry type air filter, fuel filter, oil filter

8. 10-hour operation base tank

9.Mould case circuit breaker

10. 24V DC start motor and storage battery

11. 24V charge alternator

12. 24V batteries, rack and cable

13. Rippl;e flex echaust pipe, exhaust siphon, flange, and muffler

14.   Comply with ISO and CE standards

15. All generator sets are gone through rigorous testing before beging released to the market place, including 50% load, 75% load, 100% load and all protection function(over speed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)

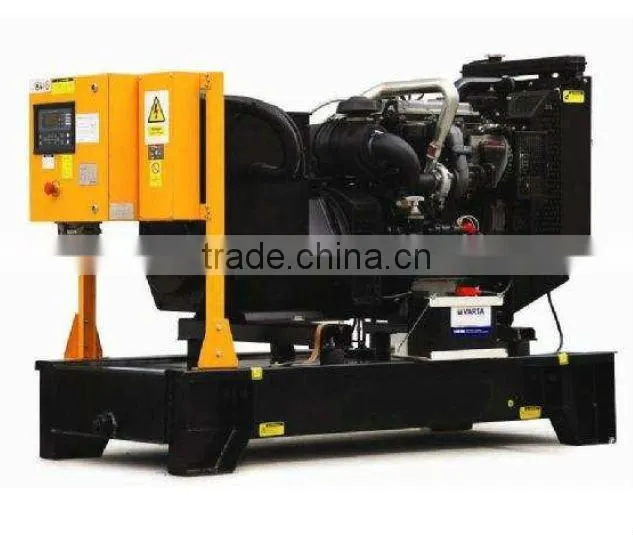

Detailed parts of  turbo generator set

2mw turbo generator set

2mw turbo generator set





2mw turbo generator set

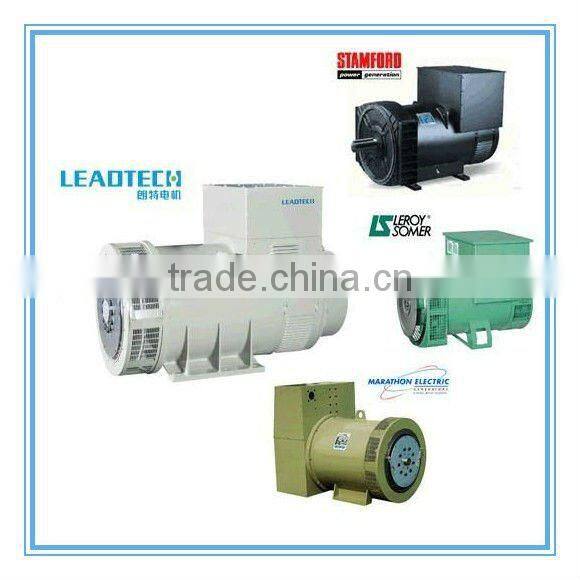

Alternators for your option



2mw turbo generator set

2mw turbo generator set
