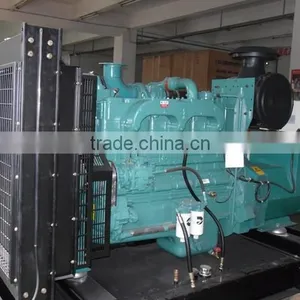

AC Electric Power 300 kva Diesel Generator With Cummins Engine
-PH, 50Hz@1500RPM, 400/230V (Also Can Be Made According To Customers’ Special Requirements)
1.Composed of diesel engine and Stamford or Leroy Somer alternator
2.24V DC start motor and storage battery
3.Brushless, Self-excited, IP23, insulation class H alternator
4.40°C radiator as standard, 50°C is optional
5.Key start panel control system as standard, digital auto-start panel is optional
6.8-hour operation base tank
7.Optional open type or silent type
8.All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load, 110% load and all protection function (overspeed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)
Prime Power |
240KW/300KVA | Standby Power |
264KW/330KVA |
Rated Speed |
1500RPM |
Output Frequency |
50HZ |
Phase |
3 |
Rated Voltage |
400V |
Engine Model |
NTA855-G1A | Alternator Model |
HCI 444D |
Fuel Consumption of 100% load |
61.3 L |
Fuel Consumption of 75% load |
46.1 L |
Voltage Regulation Rate |
≤±1% |
Random Voltage Rate |
≤±1% |
Frequency Regulation Rate |
≤±5% |
Random Frequency Variation |
≤±0.5% |
Dimension (open type) |
3550×1120×1600(mm) | Weight (open type) |
2800kg |
Dimension(silent type) |
3800×1200×2100(mm) | Weight (silent type) |
3300kg |
Prime Power:
This rating is for the supply of continuous electrical power (at variable load). There is no limit on the annul hours of operation and 10% overload power can be supplied for 1 hour in 12.
Standby Power:
This rating is for the supply of continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted.
Rated Voltage:
Available with customer requirements.
Diesel Engine
Engine Model |
NTA855-G1A |
Number of Cylinder |
6 |
Cylinder arrangement |
Vertical in-line |
Cycle |
Four Stroke |
Aspiration |
Turbocharged and Aftercooled |
Bore×Stroke (mm×mm) |
140×152 |
Displacement (L) |
14 |
Compression Ratio |
14.5:1 |
Prime Power/Speed(KW/rpm) |
261/1500 |
Standby Power/Speed(KW/rpm) |
291/1500 |
Speed Governor |
Electrical |
Cooling System |
Water-cooled, 4°C Radiator As Standard, 50°C Is Optional |
Speed Stability(%) |
≤1% |
Total Lubrication System Capacity (L) |
38.6 |
Coolant Capacity(without radiator) (L) |
20.8 |
Fuel Consumption at 100% Load(g/kwh) |
195(at 1500RPM) |
Starter Motor |
DC24V |
Alternator |
AC24V |
Alternator Specifications
Alternator Model |
HCI 444D |
Alternator Brand |
Stamford |
Exciter Type |
Brushless, Self-excited |
Rated Output |
300KVA |
Rated Speed |
1500RPM |
Rated Frequency |
50HZ |
Phase |
Three |
Rated Voltage |
400V (Available with customer requirements) |
Power Factor |
0.8 |
Voltage Adjust Range |
≥5% |
Voltage Regulation NL-FL |
≤±1% |
Insulation Grade |
H |
Protection Grade |
IP23 |
Other alternator option: Leroy Somer,Marathon ,Engga
Standard Genset Controller
Our standard genset controller provides functions as follows:
1.Start/Stop controller
2.Ampere meter
3.Voltmeter and selector switch
4.Frequency meter/ Water temperature gauge/ Oil pressure gauge/ Hour counter/ Battery voltage meter
5.Emergency stop pushbutton
6.Alarm System: Over speed, High Engine Temperature, Low Oil Pressure, Charge Fail
7.Protection System: Over speed, High Engine Temperature, Low Oil Pressure, Emergency Stop, and the other protection function pre-setting

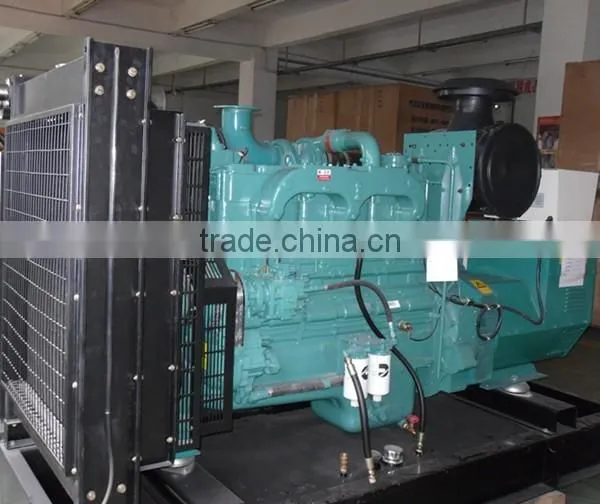

Engine :
Original stamford alternator and certificate :
Open type Genset :
Silent Type Diesel Genset
