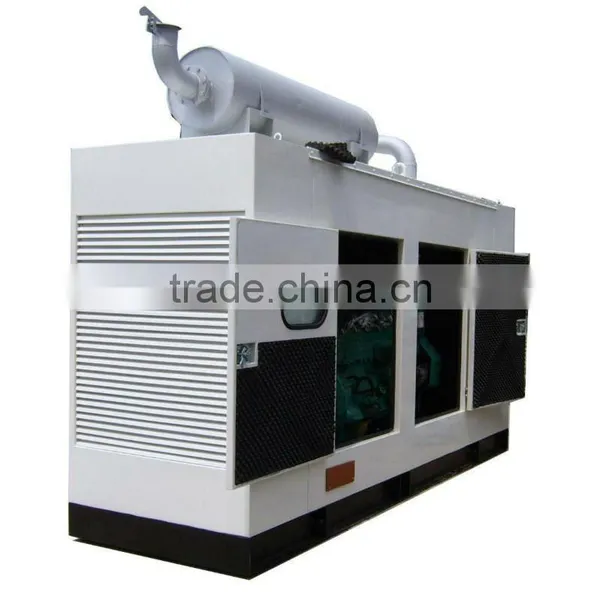

industrial China Yuchai silent 125kva diesel genset
YUchai the full range of products with high power ,torque,high reliability,low fuel consumption,low emission ,low noise ,adaptation sex strong characteristic .
| Genset Model | Prime Power | Standby Power | Engine | Fuel Consumption | Cylinder No. | Displacement | Bore X Stroke | ||
| KW | KVA | KW | KVA | (g/kwh) | (L ) | (mm) | |||
| GNR-23YC | 16 | 20 | 18 | 23 | YC2108D | ≤235 | 2 | 2.199 | 108*120 |
| GNR-34YC | 24 | 30 | 27 | 34 | YC2115D | ≤235 | 2 | 2.493 | 115*120 |
| GNR-55YC | 40 | 50 | 44 | 55 | YC4108D | ≤199 | 4 | 4.21 | 108*115 |
| GNR-63YC | 45 | 56 | 50 | 63 | YC4D70Z-D20 | ≤197 | 4 | 4.214 | 108*115 |
| GNR-69YC | 50 | 63 | 55 | 69 | YC4D75Z-D20 | ≤199 | 6 | 6.494 | 105*125 |
| GNR-88YC | 64 | 80 | 70 | 88 | YC6108D | ≤199 | 6 | 6.871 | 108*125 |
| GNR-104YC | 75 | 94 | 83 | 104 | YC6108ZD | ≤197 | 6 | 6.871 | 108*125 |
| GNR-125YC | 90 | 113 | 100 | 125 | YC6108ZLD | ≤195 | 6 | 6.871 | 108*125 |
| GNR-138YC | 100 | 125 | 110 | 138 | YC6B150D | ≤195 | 6 | 6.871 | 108*125 |
| GNR-165YC | 120 | 150 | 132 | 165 | YC6A190D | ≤195 | 6 | 7.252 | 108*132 |
| GNR-206YC | 150 | 188 | 165 | 206 | YC6112ZLD | ≤195 | 6 | 7.8 | 112*132 |
| GNR-275YC | 200 | 250 | 220 | 275 | YC6M320L-D20 | ≤189 | 6 | 9.84 | 120*145 |
| GNR-481YC | 350 | 438 | 385 | 481 | YCT550L-D20 | ≤192 | 6 | 15.6 | 140*155 |
| GNR-550YC | 400 | 500 | 440 | 550 | YC6T600L-D20 | ≤194 | 6 | 16.35 | 145*165 |
diesel engine
Engine: Yuchai diesel engine
Rated voltage: 220V/380V, 230V/400V, 240V/415V
Rated frequency: 50/60Hz
Power factor: 0.8
Cooling method: closed water cooling
Starting method: electric start
Rated speed: 1,500/1,800rpm
Noise level: 68dB at 7m away
Alternator:
Brand: Stamford,LeroySomer, Marathon,Engga
Rated output: 25KVA-500KVA
Rated voltage: 400/230V
Rated frequency: 50/60Hz
Power factor: 0.8
Phase: 3-phase, 4-wire
Rated speed: 1,500rpm/1,800rpm
Excitation: harmonic excitation or phase compound or brushless
Voltage regulation: automatic
1.0% voltage regulation (maximum) in static conditions
Protection class: IP21-23
Control panel
The generator control panel is manufactured locally
Standard engine instrumentation
Voltmeter with selector switch
Ammeter with selector switch
Frequency meter
Current transformers
Instrument fuses duly wired and ferruled
Mcb of suitable rating with overload and short-circuit protection
With AMF control panel or with ATS (automatic transfer system)
With EPA certification
Accessories
1) Standard accessories: Standard 40 radiator mounted on skid, Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit, operation manual and document.
2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.
Warranty policy
Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, Genor will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material. After expiration, Genor provides cost spare parts maintenance of gensets.
