Specifications
China Generator Pakistan With CE1.ISO9001 CE approved
2.OME offered
3.One year warranty
4.Alterntor:stamford

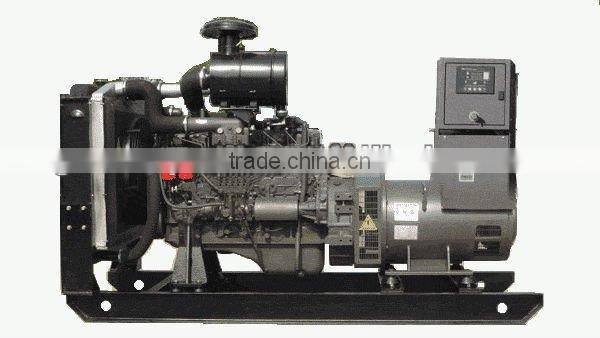

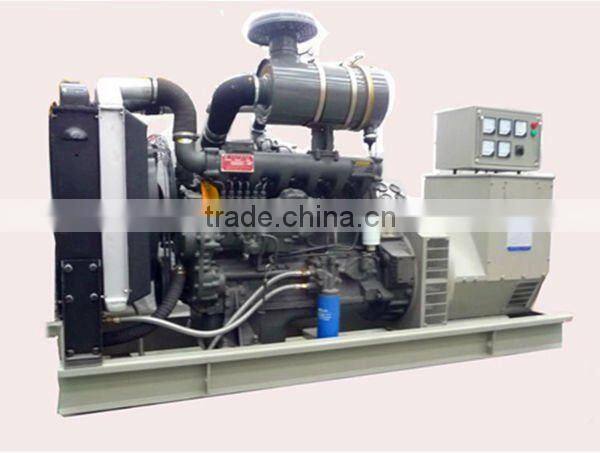

China Generator Pakistan With CE
Specification:
Weichai series small power diesel generator has four stroke, direct inject with small volume and large power station. The generator adopt Brushless series, which has third-harmonic, self-excited and constant voltage. It can bitterly stimnated the generator with nice outline and the reliable performance. This kind of product is suitable for the customer who likes good quality but cheap price. But we can also couple LEROY SOMER generator to meet the customers requirement as their better options. About listed generating sets are all 50HZ, rated voltage is 400/230V, power factor is 0.8 lag, and the connecting is 3 phase & 4 wires. 60HZ generating sets can be supplied according to the customers requirements.
| Genset Model | Prime Powe | Standby Power | Engine | Fuel Consumption | Cylinder No. | Displacement | Bore X Stroke | ||
| KW | KVA | KW | KVA | (g/kwh) | (L ) | (mm) | |||
| GNRW-28 | 20 | 25 | 22 | 28 | K4100D | 236 | 4 | 3.6 | 100*115 |
| GNRW-34 | 24 | 30 | 27 | 34 | K4100D | 236 | 4 | 3.6 | 100*115 |
| GNRW-41 | 30 | 38 | 33 | 41 | K4100D | 236 | 4 | 3.6 | 100*115 |
| GNRW-55 | 40 | 50 | 44 | 55 | K4100ZD | 238 | 4 | 3.6 | 100*115 |
| GNRW-69 | 50 | 63 | 55 | 69 | R4105ZD | 238 | 4 | 4.3 | 105*115 |
| GNRW-104 | 75 | 94 | 83 | 104 | R6105ZD | 238 | 6 | 6.5 | 105*115 |
| GNRW-125 | 90 | 113 | 100 | 125 | R6105ZLD | 238 | 6 | 6.5 | 105*115 |
| GNRW-138 | 100 | 125 | 110 | 138 | R6105AZLD | 238 | 6 | 6.7 | 105*115 |
| GNRW-165 | 120 | 150 | 132 | 165 | R6105IZLD | 238 | 6 | 6.7 | 105*115 |
| GMRW-206 | 150 | 188 | 165 | 206 | 6113AZLD | 238 | 6 | 7.5 | 113*115 |
Detailed Product Description
Weichai Engine
1. Engine power range: 25kva to 250kva
2. SC8D series engine with Caterpillar technology
3. Muti-cylinder, 4-stroke, direct injection
4. Water-cooled
5. Governor: Mechanical or electronic
6. Electric starting
Alternator
1. Brand: Stamford, Leroy Somer, Marathon, Engga
2. Brushless, 4 poles
3. H class insulation
4. IP23 protection
5. Automatic voltage regulation
6. Star connection
Control system
1. Manual / Automatic start
2. LED display
3. Automatic alarm system
4. Self-protection function
5. Remote monitor
6. Parallel function
