Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > 480 Volt Synchronizer Yuchai Diesel Generator 600kva

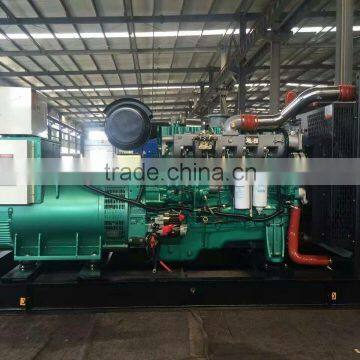

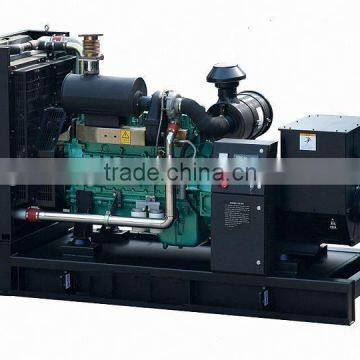

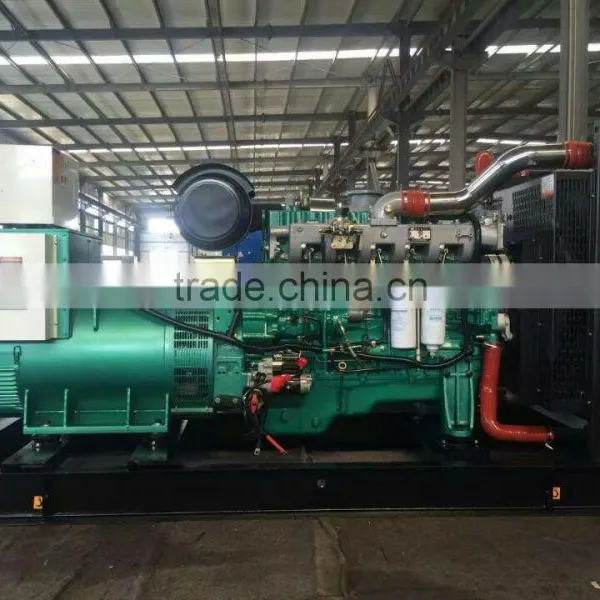

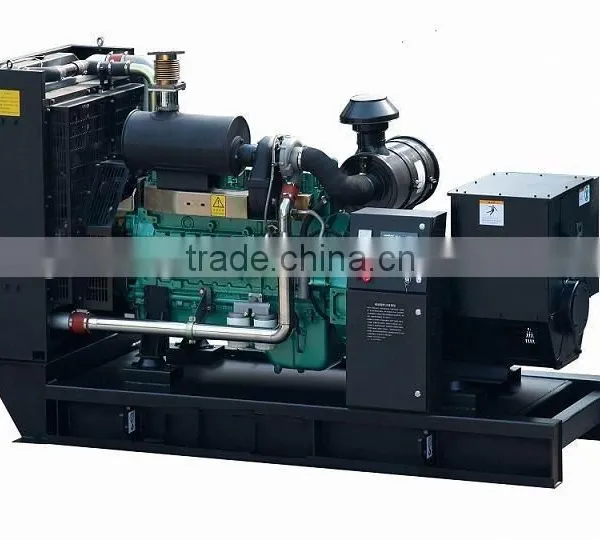

480 Volt Synchronizer Yuchai Diesel Generator 600kva

Name: 480 Volt Synchronizer Yuchai Diesel Generator 600kva
Brand: China Yuchai
SKU: 140637540
Availability: InStock

480 Volt Synchronizer Yuchai Diesel Generator 600kva thumbnail-1

480 Volt Synchronizer Yuchai Diesel Generator 600kva thumbnail-2

480 Volt Synchronizer Yuchai Diesel Generator 600kva photo-1

480 Volt Synchronizer Yuchai Diesel Generator 600kva photo-2

US$ 24,595 - 38,558 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

China Yuchai

Model Number:

GNRYC

Contact Supplier Request Quote Chat Now

Shenzhen Genor Power Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name China Yuchai

Model Number GNRYC

Output Type AC Three Phase

Speed 1500rpm or 1800rpm

Frequency 50Hz or 60Hz

Rated Power 20KVA to 500KVA

Rated Voltage 220V/380V, 230V/400V, 240V/415V

Rated Current 28A to 750A

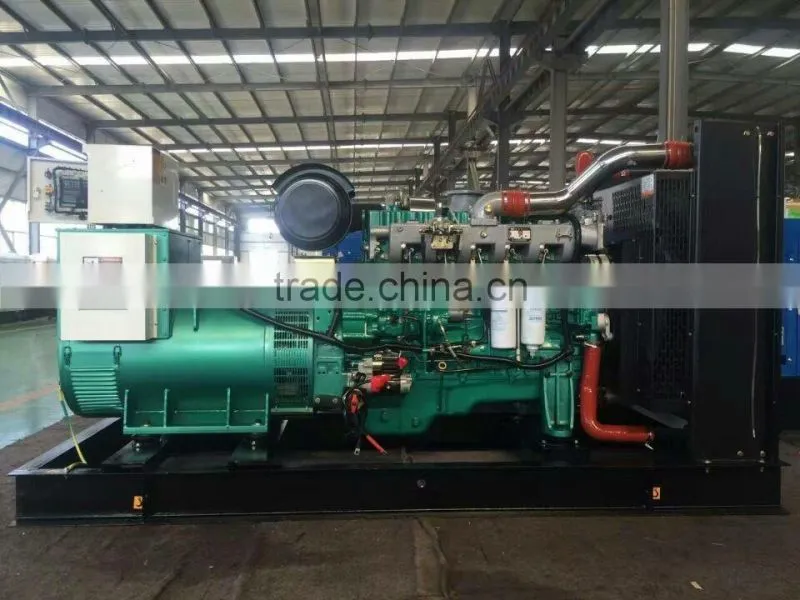

480 volt synchronizer Yuchai Diesel Generator 600kva

YUchai the full range of products with high power ,torque,high reliability,low fuel consumption,low emission ,low noise ,adaptation sex strong characteristic .

Genset Model	Prime Power		Standby Power		Engine	Fuel Consumption	Cylinder No.	Displacement	Bore X Stroke
Genset Model	KW	KVA	KW	KVA	Engine	(g/kwh)	Cylinder No.	(L )	(mm)
GNR-23YC	16	20	18	23	YC2108D	≤235	2	2.199	108*120
GNR-34YC	24	30	27	34	YC2115D	≤235	2	2.493	115*120
GNR-55YC	40	50	44	55	YC4108D	≤199	4	4.21	108*115
GNR-63YC	45	56	50	63	YC4D70Z-D20	≤197	4	4.214	108*115
GNR-69YC	50	63	55	69	YC4D75Z-D20	≤199	6	6.494	105*125
GNR-88YC	64	80	70	88	YC6108D	≤199	6	6.871	108*125
GNR-104YC	75	94	83	104	YC6108ZD	≤197	6	6.871	108*125
GNR-125YC	90	113	100	125	YC6108ZLD	≤195	6	6.871	108*125
GNR-138YC	100	125	110	138	YC6B150D	≤195	6	6.871	108*125
GNR-165YC	120	150	132	165	YC6A190D	≤195	6	7.252	108*132
GNR-206YC	150	188	165	206	YC6112ZLD	≤195	6	7.8	112*132
GNR-275YC	200	250	220	275	YC6M320L-D20	≤189	6	9.84	120*145
GNR-481YC	350	438	385	481	YCT550L-D20	≤192	6	15.6	140*155
GNR-550YC	400	500	440	550	YC6T600L-D20	≤194	6	16.35	145*165

1)Output range: 20kva to 500kva diesel genset
2) Engine model: YUCHAI

3) Alternator: Stamford,LeroySomer, Marathon,Engga

4) Water-cooled
5) 8hrs operation base tank
6) Key start / auto start
7) Sound-proof / weather-proof canopy is optional
8) 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wires alternating current output
9) Standard configuration of gensets:
A) Engine: YUCHAI diesel engine diesel genset
B) Engine type: Water-cooled, in line four-stoke, dry cylinder liner, direct injection
C) Alternator: Brushless and "H" class insulation
10) Control system:
A) Automatic alarm system: The unit has the acousto-optics alarm system and
Arrestor for any situation as the start defeat, the water is over temperature,
The oil pulls down, over speed, over load and over current
B) Operation display:
I) Unit voltage, tri-phase load current and frequency display
Ii) Water temperature, oil pressure display
Iii) Fuel level, fuel temperature display
Iv) Audible and visual alarm lamps and buzzers
11) Starting system: DC alternator is used to start engine
12) Short circuit protection: MCCB air switch
13) Cooling system: Combined cooling water tank fitted to meet the requirement of radiation at ambient temperature 40 degree
14) Filter system: Oil, fuel and air filter
15) Accessories: Exhaust elbow, bellow, muffler

16) Supply standard collocation:
A) Diesel engine with all accessories, 3 filter, electric systems
B) Alternator
C) Steel structure
D) Fan and water tank cooling system
E) Flange connector
F) 12 / 24V starting motor and charge engine
G) Air cleaner, fuel cleaner, oil cleaner
H) On-board control panel

Warranty:

Guarantee for one year or 1000hours from ex-factor date.During the repair time,Genor will provide the free easy-damageable spare arts of diesel engine caused by our quality of production or raw material.After expiration, Genor will supply cost spare part for you to repair it.
