10W Data Wireless Link Telemetry & Remote Mobile Radio With CE&FCC

Product Description:

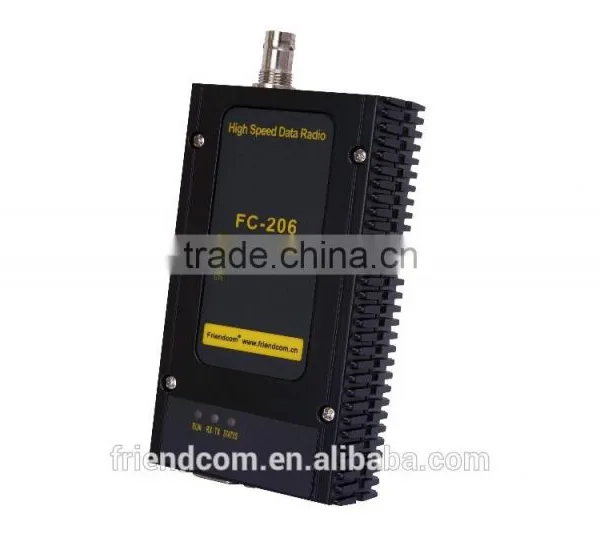

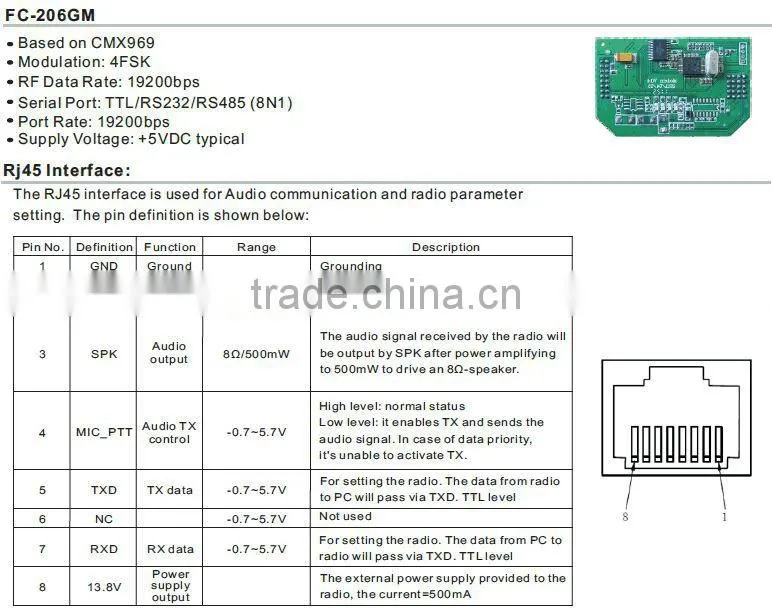

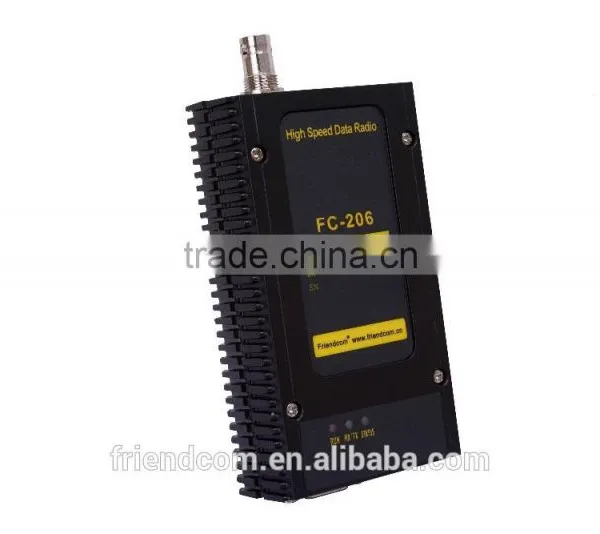

FC-206 is a PLL synthesized 10-watt FM data radio. It is characteristic of its fast TX startup time and its low cost. Two-point modulation is applied in the radio. Embedded data modem based on CMX969 is optional, which can easily implement point to point or point to multi-point data or/and voice communication.

 Technical Specifications:

• Comply with CE: EN300086, EN300113; FCC: Part 90.

•  1-10W RF power programmable

•  Operates from 8V to 16V DC

•  TX Startup time is less than 5ms, fast RX/TX switch time.

•  Data and voice compatible with programmable priority

•  12.5KHz/25KHz channel spacing optional

•  Freq step 5KHz /6.25KHz compatible

•  PC Programming via Software

•  Solid Die-Cast Aluminum Housing

•  Capable to work as network radio, remote radio or repeater.

Applications:

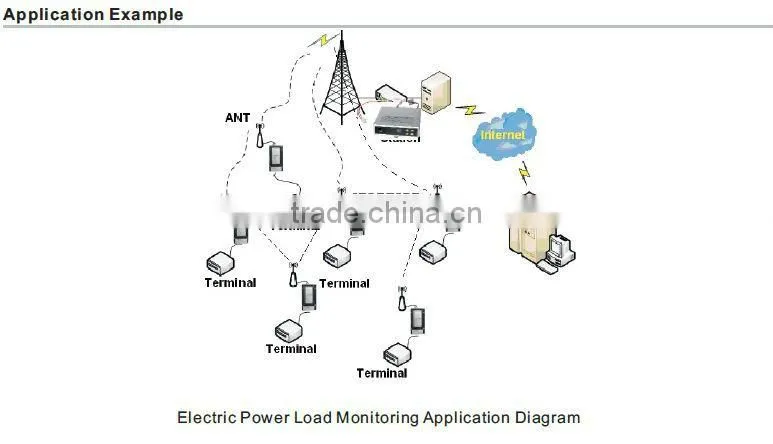

•  Electric power load monitoring, distribution network automation, reactive power compensation and smart          grid

•  Industrial telemetry & wireless remote control

•  Earthquake, weather, environmental protection and urban lighting control

•  Vehicle tracking and asset tracking systems

•  Water monitoring, waste water management and irrigation control

 •  Gas and oil flow monitoring

 •  Railway, police, army automation system

 •  Surveying DGPS/RTK wireless data link

 •  Aerial defense and fire alarm system
