Description |
FSK and DTMF caller ID 850/900/1800/1900mhz fixed gsm terminal |
Item no. |
A370-GSM-M26 |
Module |
Quectel M26 |
Working frequency |
GSM850 receiving: 869-894MHz transmitting: 824-849MHz |
|
EGSM900 receiving: 925-960MHz transmitting: 880-915MHz | |
|
DCS1800 receiving: 1805-1880MHz; transmitting: 1710-1785MHz; | |
|
PCS1900 receiving: 1930-1990MHz transmitting:1850-1910MHz | |
RF output power |
GSM850 Max.:33dBm+2dB; Min.:5dBm+5dB |
EGSM900 Max.:33dBm+2dB; Min.:5dBm+5dB | |
DCS1800 Max.:30dBm+2dB; Min.:0dBm+5dB | |
PCS1900 Max.:30dBm+2dB; Min.:0dBm+5dB | |
RF receiving sensitivity |
GSM850 |
EGSM900 | |
DCS1800 | |
PCS1900 | |
Output Power |
Class 4 (2W): @850/900MHz |
Class 1 (1W): @1800/1900MHz | |
Power supply |
3.3-4.6v |
Power waste |
1.3mA@DRX=5 |
1.2mA@DRX=9 | |
GPRS speed |
Max 85.6kbps (DL)/Max 85.6kbps (UL) |
Coding mode |
CS 1,2,3,4; USSD |
Polarity reverse |
support |
Protocols |
TCP/UDP/PPP/FTP/HTTP/SMTP/CMUX/SSl/PING |
Audio characteristic |
Half rate: ETS 06.20 |
Full rate: ETS 06.10 | |
Enhanced full rate: ETS 06.50/06.60/06.80 | |
Speech Codec |
HR/FR/EFR/AMR |
Echo Arithmetic |
Echo Cancellation/Noise Suppression |
Adapter |
EU, UK, USA, AU adapter etc. optional |
SIM connection |
1.8V or 3V |
Power Supply |
Input 100-220V |
Output 5V 1A or 12V 1A | |
Battery |
600mAh, 800mAh, 1000mAh, 2000mAh |

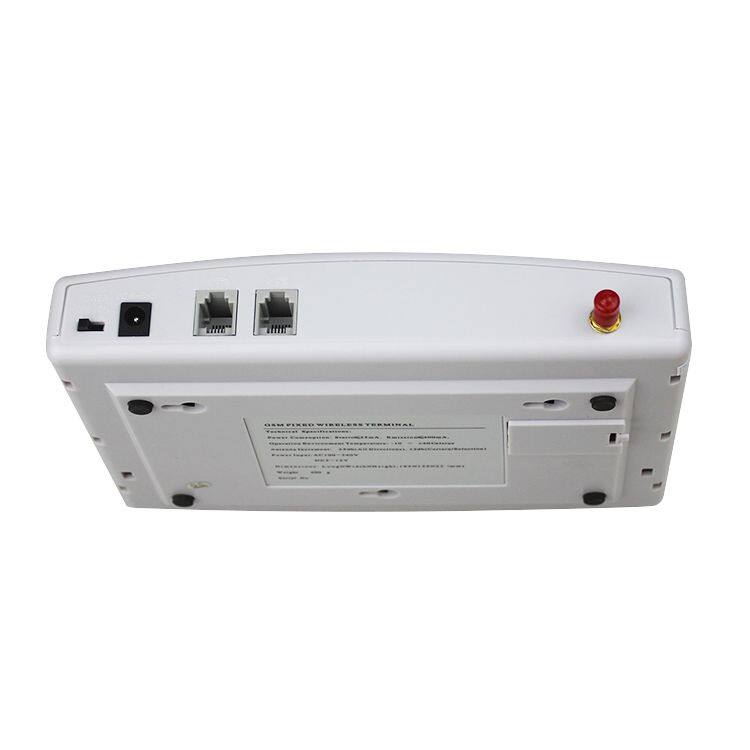

RJ11 port |
2 |
SIM card |
2FF; Single or dual sim card optional; |
Color |
Black or white or OEM; |
LCD Size: |
67*30mm |
Antenna |
3m antenna or small rubber antenna |
Caller ID |
DTMF or FSK or both |
Dimension |
Device: 193*138*35mm |
Pack Box: 210*155*75mm | |
Package |

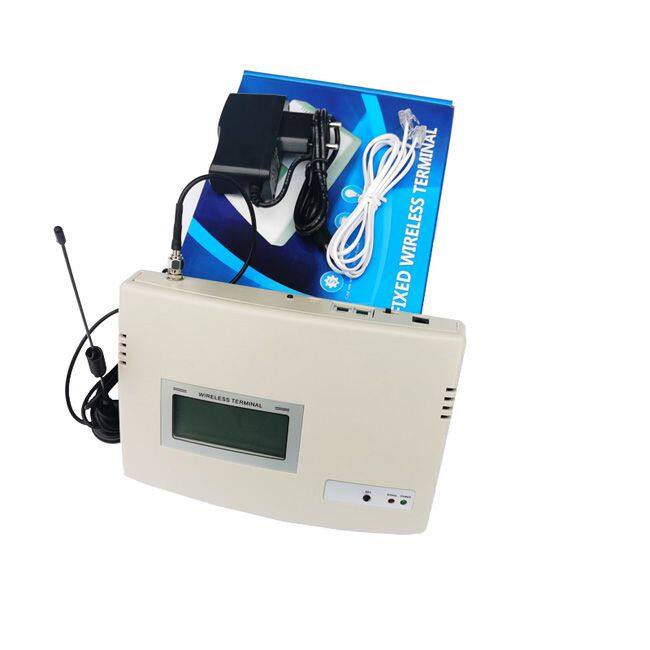

Device*1； Adaptor*1； Battery(built in)*1； Straight Cable*1； User manual*1； Antenna*1pc； |
Weight |
0.60Kg |
