Product information

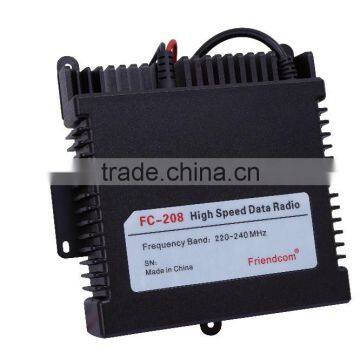

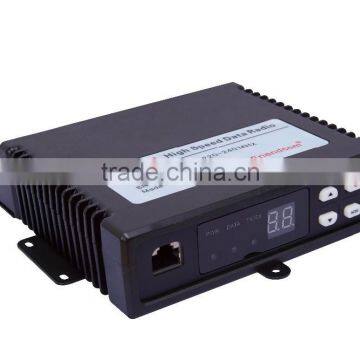

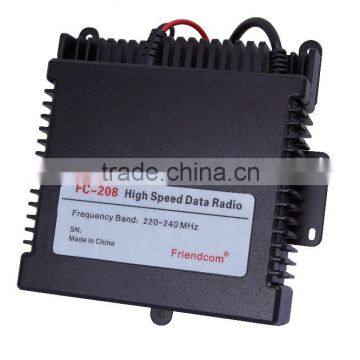

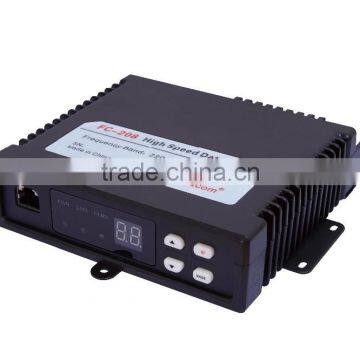

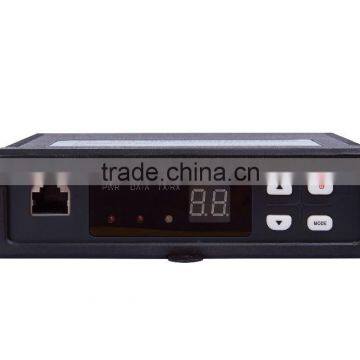

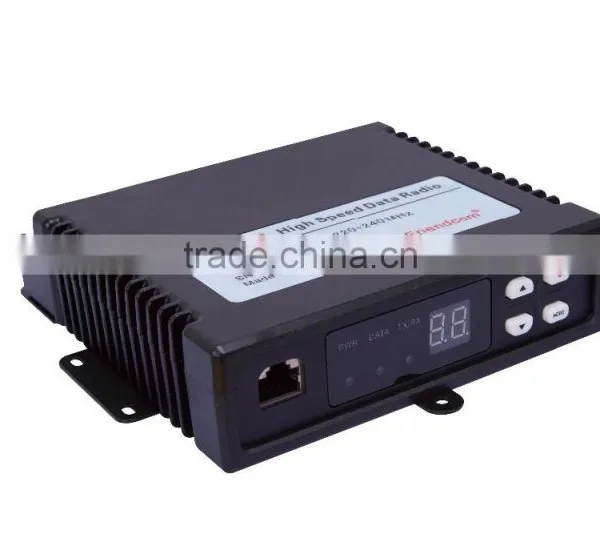

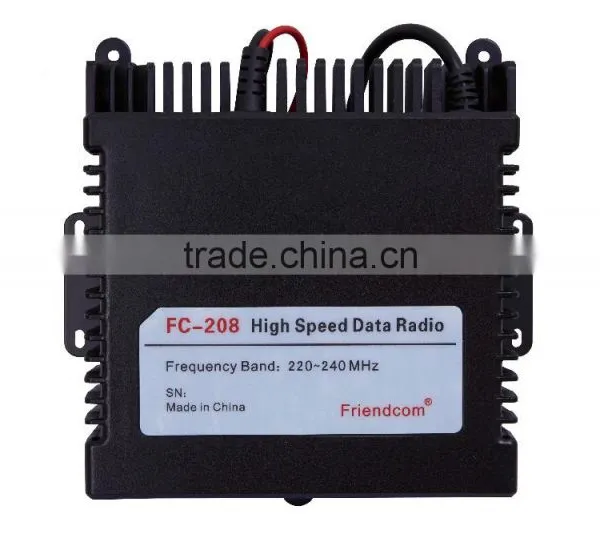

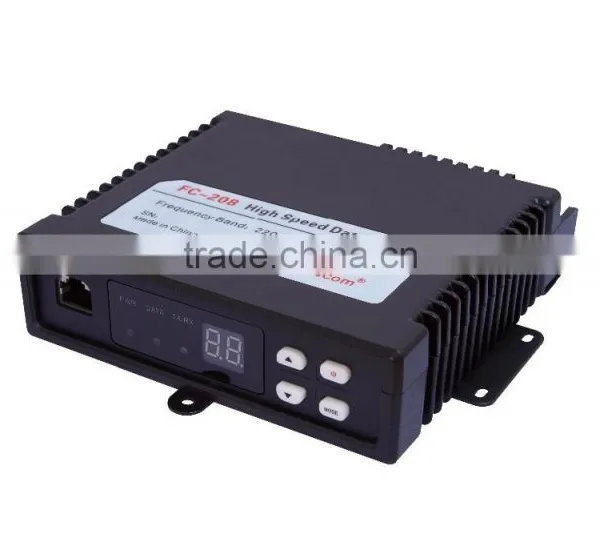

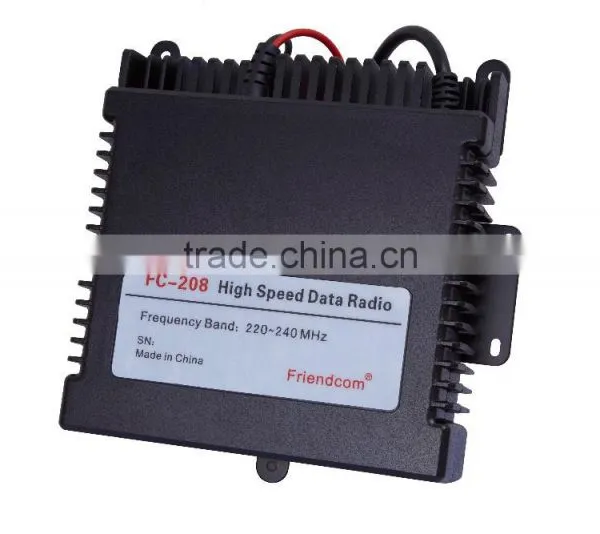

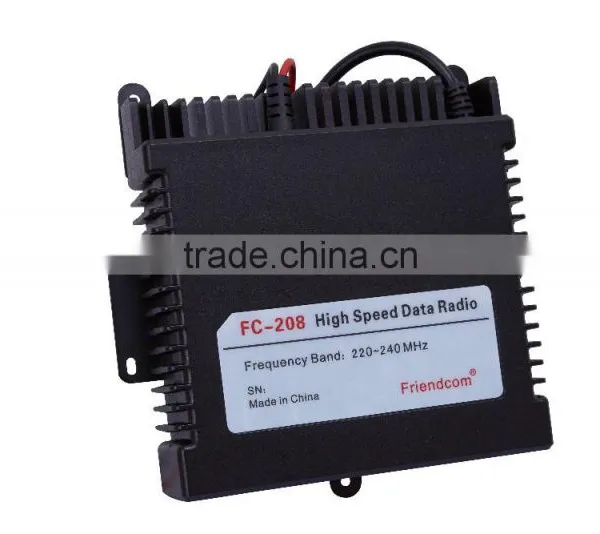

FC-208 is a low cost professional wireless communication FM data radio developed by Friendcom Technology. It works in band 230 MHz (223.025MHz~235MHz) and has a fast TX startup time. Two-points modulation is applied in the radio. Optional embedded data modem based on CMX969 can easily implement point to point, or point to multi-points wireless data transmission systems such as electricity load monitor and control, distribution automation or remote metering. FC-208 can be used as a Base radio working together with FC-206 as the Slave radio, and form a private radio network.
Key Features
• 5-25W RF power programmable
• Data transmission dedicated band (223.025-235MHz), preset on 99 channels with half duplex programmed, and be selectable by software
• Working temperature: -40℃~+70℃, meet industrial demand
• Transmission protection and can be set up for continuous transmission.
• TX startup time < 5ms. Fast RX/TX switch time.
• Provide internal, external modem interfaces. Highest date rate at19.2Kbps
• Built-in modem using forward error correction, interleaving / de-interleaving, error rate
• High receiver sensitivity, low data error rate
• Solid die-cast aluminum housing
• Strong anti-interference ability, long communication distance
• Operates from 12V to 16V, wide operating voltage
