ISM RF Two-Way Transceiver VHF/UHF Data Radio
Negotiable
MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Friendcom
Model Number:
FC-301D
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
UHF MOBILE DATA RADIO With OPTIONAL MODEMNegotiableMOQ: 2 Units -
5KM Audio rf Transmitter and Receiver ModuleUS$ 165 - 165MOQ: 2 Pieces
-
VHF/UHF Wireless Transceiver Radio With Optional ModemUS$ 140 - 140MOQ: 2 Pieces
-
ISM Band 868MHz 32-Channels RS232 20dBm Wireless Data-Link ModuleUS$ 18 - 18MOQ: 2 Pieces
-
Narrow-band High Speed Data Transceiver FC-222US$ 140 - 150MOQ: 3 Pieces
Brand Name
Friendcom
Model Number
FC-301D
Hot- selling Item over the global!!!!!!

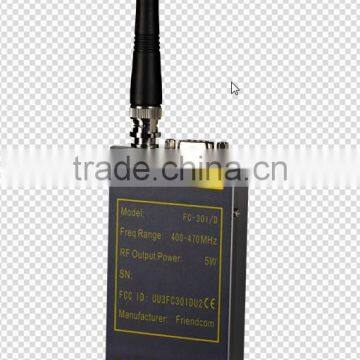

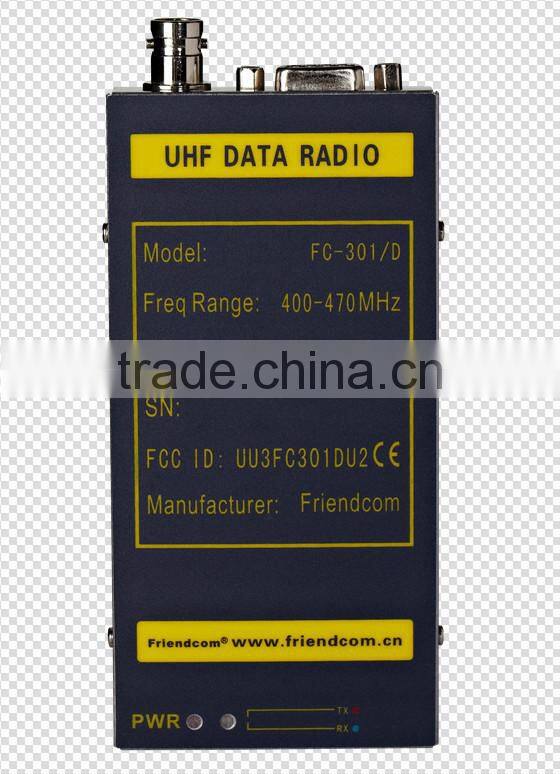

VHF/UHF Data Radio FC-301/D
Intelligent Industry/Street Remote Control
UHF400MHz~470 MHz, VHF136MHz~174MHz
1W~5W, programmable
Product Detailed Data Sheet
Product Description
FC-301/D is a synthesized 5-watt FM transceiver module which is designed for data as well as voice (with
selectable pre-emphasis, squelch, and audio amplifier). Two-point modulation for good low-frequency response
used in the radio makes it a good choice to work with 9600 baud data modem. Compact size and multi-voltage
DC connection capability gives the module flexibility in use.
Key features
- CE and FCC approval
- Synthesized frequency tuning
- Operates from 9V to 15V DC
- 1-5W RF power programmable
- 16 channels frequency programmable
- 12.5KHz/25KHz channel spacing optional
- Freq step 5KHz /6.25KHz compatible
- PC Programming via Software
Applications
- Industrial telemetry & wireless remote control
- Gas and oil flow monitoring
- Electricity, water, and gas utilities
- Earthquake, weather, environmental protection and urban lighting control
- Vehicle tracking and asset tracking systems
- Water monitoring, waste water management and irrigation control
- Railway, police, army automation system
- Aerial defense and fire alarm system
- Wireless Paging system
Technical specifications
| No. | Item | Specifications |
| 1 | Frequency Band | UHF: 400MHz – 470 MHz |
| 2 | Channel Spacing | 25KHz/12.5KHz optional |
| 3 | RF Output Power | 1W - 5W Programmable |
| 4 | Modulation type | 16K0F3E,8K5F3E |
| 5 | Intermediate Frequency | 45.1MHz & 455KHz |
| 6 | Number of Channels | 16 |
| 7 | Frequency Stability | ±2.5ppm |
| 8 | RX Sensitivity(12dB Sinad) | UHF<-117 dBm, VHF <-118 dBm |
| 9 | Operation Rating | Intermittent |
| 10 | Power Supply | 12.5V DC Nominal Voltage |
| 11 | TX Current (5W RF Power, 12.5V) | < 1.5A |
| 12 | Standby (Muted) Current | ≤40mA |
| 13 | Operating Temperature Range | from –30°C to +65°C |
| 14 | Dimensions | (120mm)L x (60mm)W x (20mm)H |
| 15 | Weight | 200 grams |
| 16 | Antenna Impedance | 50 Ohm |
| 17 | Antenna Port | BNC connector, female |
2014 European Utility Week------Friendcom Stand
