5KM audio rf transmitter and receiver module
- 0 per Month
- Shenzhen
- T/T Credit Card
- Cisco Fiber Switches N9K-C93180YC-FX
- SIERRA AR7586
- Quectel LC29D GPS Beidou Inertial Guidance Module
- telit 4G module LE910C4-NF
- Acrel 4G LORA communication AWT200-1E4S1-4G/LR Intelligent data communication gateway, supports 4-way serial port
- Acrel Wireless communication terminal Supports centralized collection of up to 10,000 points AWT200-1E8SL
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Friendcom | Model Number: | FC-302 |
Product Description

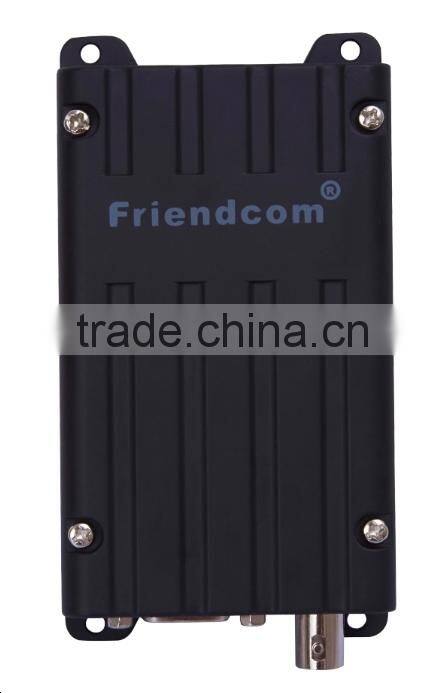

FC-302 is a synthesized 5-watt FM UHF/VHF audio rf transmitter and receiver module, which is designed for data transportation and voice communication. For the voice communication, it can support selected pre-emphasis, squelch and audio amplifier. The radio is PLL(Phase Lock Loop Synthesizer) /microprocessor controlled with optional FSK, GMSK, 4FSK modem. The application of two-point modulation with good low-frequency response in the radio also makes it a competitive choice for 1200-19200bps rate data application. Compact dimension and wide range DC support make it flexible to use. CE FCC certified.
Two colors optional: Black & Silver
• CE, FCC& AS/NZS 4295: 2004 certified
• Programmable 16 channels with Dip-Switch
• Configurable power save feature
• Optional external channel change
• FSK, 4FSK& GMSK modem optional
• Frequency step 5 KHz/6.25KHz
• CTCSS/DCS
• Support maximum RF data rate: 19200bps
• Fast start-up time: 5ms
• SQ programmable via PC
• Pocsag Modulation support
• PC programmable & Software tune & Calibration
• Dimension:63×122×32mm(L×W×H)
• DB9 DB15 Female or Male optional
General
Frequency Band | 450MHz~490MHz |
Channel Spacing | 12.5 KHz/25KHz |
Lock Time | <5ms |
Channels | 16 |
Optional Modems | FSK-V23/Bell 202: 1200 bps 4FSK: 9600/19200 bps GMSK: 9600 bps |
Power Supply | 9.5V-16V DC |
Temperature Range | 30℃ ~+ 65℃( Operating) - 40℃~+ 80℃ ( Storage) |
Operation Voltage | 12V DC(Nominal) |
Dimensions | 63×122×32mm(L×W×H) |
Transmitter | |
Output Power | 1~5W( Programmable) |
Modulation Type | F3D/F3E |
TX Current | 5W RF Power, 12V, 1.5A 1W RF Power, 12V, 1A |
Standby(Muted) Current | <65mA |
TX Attack Time | 5ms |
Frequency Deviation | <5KHz(25KHz) <2.5KHz(12.5KHz) |
Audio Response | 300Hz~3KHz +1/-3dB (25KHz) 300Hz~2.55KHz +1/-3dB(12.5KHz) |
Adj. Channel Power | <- 70dBc(25KHz) <- 65dBc(12.5KHz) |
TX SNR | >45dB(25KHz) >40dB(12.5KHz) |
Receiver | |
RX Sensitivity(12 dB Sinad) | <-119dBm Extreme<-115dBm |
Intermodulation | >65dB |
Audio Output Power | 0.5W @ 8Ω |
RX Audio Distortion | <5% |
Image Rejection | >70dB |
Spurious Rejection | >70dB |
Accessories | ·BNC Antenna ·Programer Adaptor ·Cable(Serial) |
Applications
• Industrial telemetry & wireless remote control
• Gas and oil flow monitoring
• Electricity, water and gas utilities
• Earthquake, weather, environmental protection and urban lighting control
• Vehicle tracking and asset tracking systems
• Water monitoring, wastewater management and irrigation control
• Railway, police, army automation system
• Aerial defense and fire alarm system
• Wireless Paging system
