Specifications

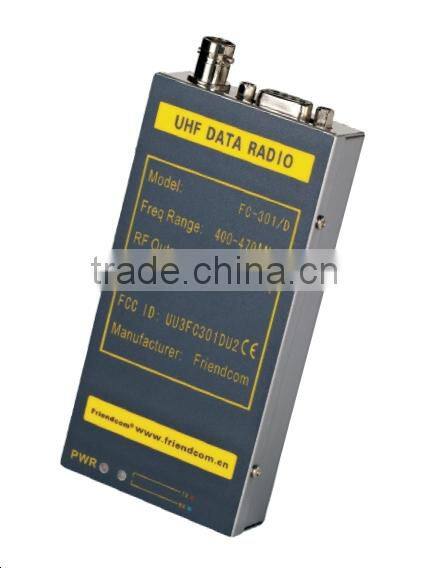

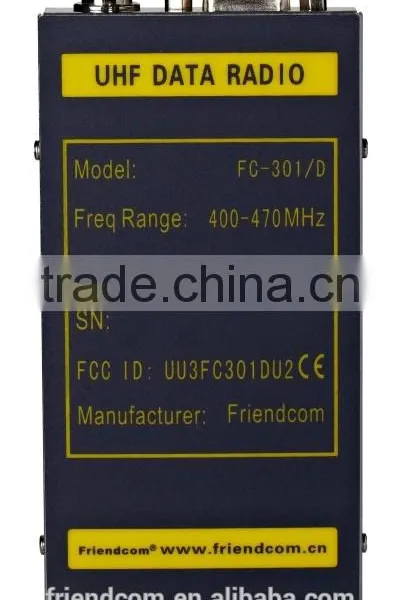

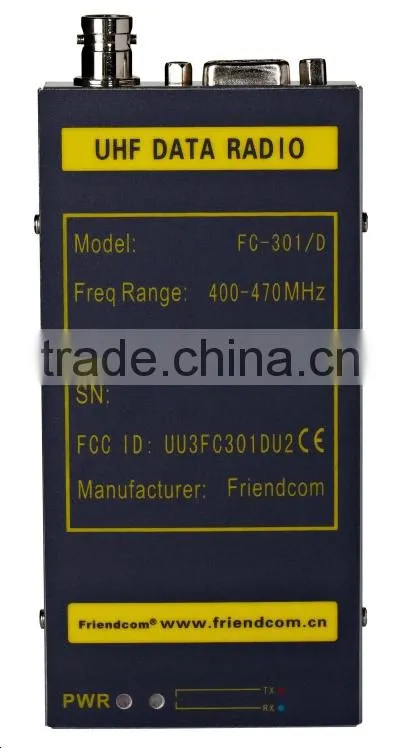

RF module|data radio: CE, FCC certificated, 400-470MHz,136-174MHz, PLL & TCXO,12.5/25kHz optional, 1-5W power programmableWireless VHF/UHF DataRadio 5W FC-301/D
Product Description
Synthesized 5W FM transceiver module for data and voice transmission.
Selectable pre-emphasis, squelch, audio amplifier.
Compact size and multi-voltage DC connection capability.
Two-point modulation for good low-frequency response used in the radio makes it a good choice to work with 9600 baud data modem.
Key features
. With CE and FCC certification
. Synthesized frequency tuning
. Operates from 9V to 15V DC
. Freq step 5KHz /6.25KHz compatible
. PC Programming via Software
Applications
Industrial telemetry & wireless remote control
Gas and oil flow monitoring & Electricity, water, and gas utilities
Earthquake, weather, environmental protection and urban lighting control
Vehicle tracking and asset tracking systems
Water monitoring, waste water management and irrigation control
Railway, police, army automation system
Aerial defense and fire alarm system
Wireless Paging system
Technical specifications
Frequency Band | UHF: 400MHz – 470 MHz |
VHF: 136MHz – 174 MHz | |
Channel Spacing | 25KHz/12.5KHz optional |
RF Output Power | 1W - 5W Programmable |
Modulation type | 16K0F3E,8K5F3E |
Intermediate Frequency | 45.1MHz & 455KHz |
Number of Channels | 16 |
Frequency Stability | ±2.5ppm |
RX Sensitivity(12dB Sinad) | UHF<-117 dBm |
VHF <-118 dBm | |
Operation Rating | Intermittent 5:5:90 (TX:RX:Standby ) |
Power Supply | 12.5V DC Nominal Voltage |
TX Current (5W RF Power, 12.5V) | < 1.5A |
Standby (Muted) Current | ≤40mA |
Operating Temperature Range | from –30°C to +65°C |
Dimensions | 120x 60x 20mm |
Weight | 200 grams |
Antenna Impedance | 50 Ohm |
Antenna Port | BNC connector, female |
