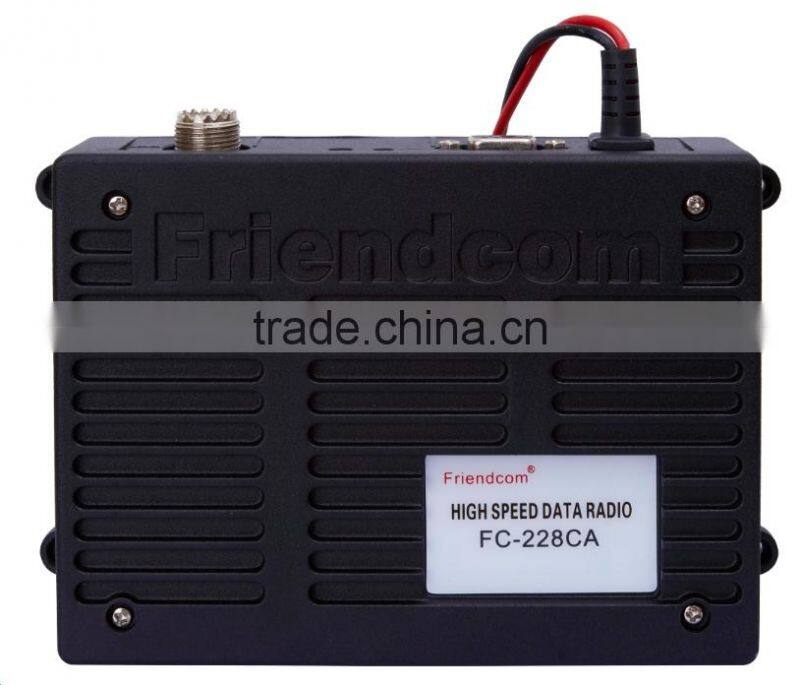

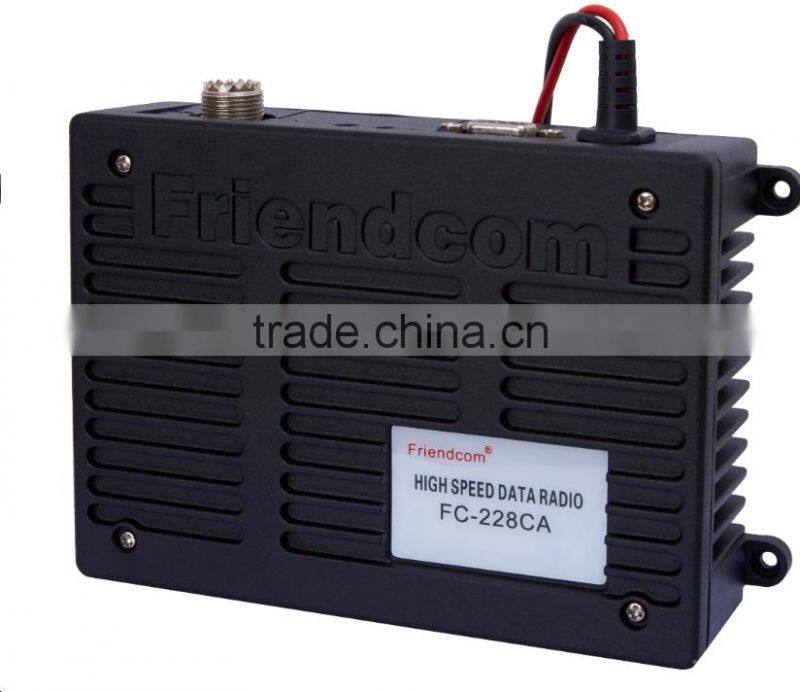

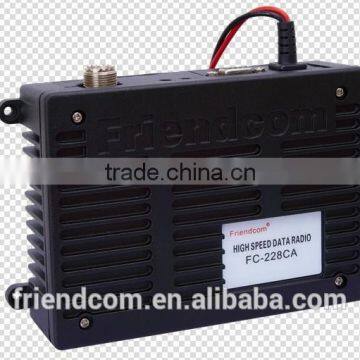

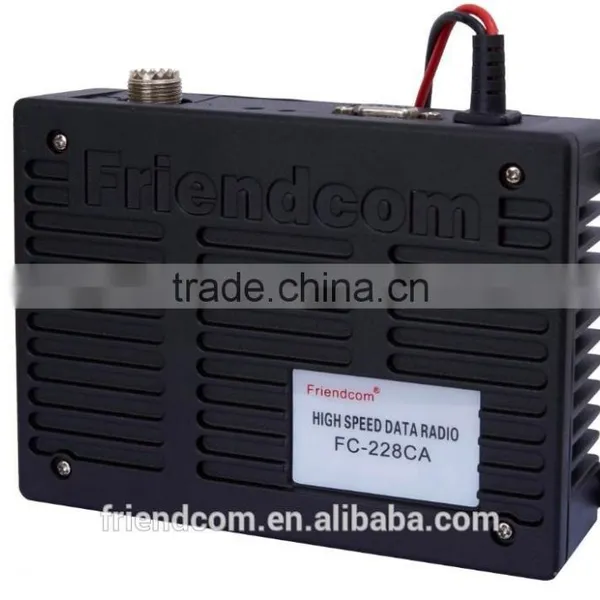

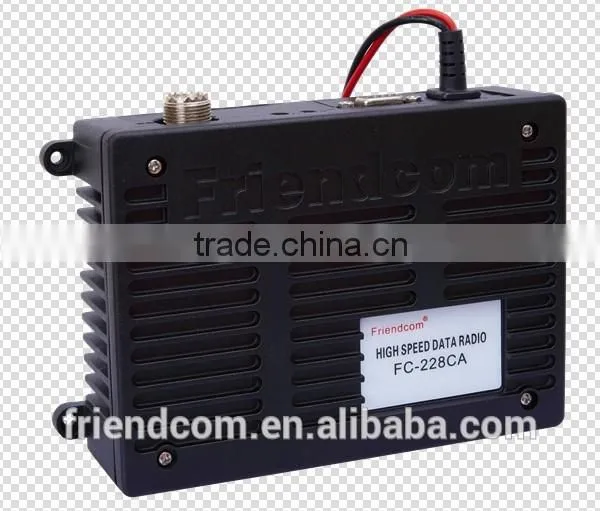

FC-228CA is a 30-watt radio transceiver designed for data as well as voice transmission, which has high sensitivity, multi-channels, reliable data transmission with long transmission distance.
Key Features
- Multi-Channels: The standard configuration provides 41 channels, CH121-CH161.
- High Sensitivity: Adopt high performance narrow-band RF IC chip.
- Different TX/RX frequency Technology: FC-228 can transmit and receive signal at different frequency respectively. TX/RX channels can be reversed.
- Safe and Reliable data transmission: M series encryption and even check adopted to ensure safety and reliability of data on air.
- Data port optional EXW: RS-232, RS-485 and TTL. Port data rate can be set by user.
- Software upgrade: The radio’s software can be upgraded via serial port. User can require the latest version of the radio software from Friendcom.
Applications
- Long-distance industrial telemetry and automation
- Long-distance Safeguard of camera control
- Geography measure and Earthquake monitoring information transmission
- Military training equipment
- LED and city lamp control
- Water conservancy and irrigation works monitoring
- Electric power load control device and Electric power instruments
- City heat-net monitor and weather circumstance monitor
- Grain depot circumstance monitor
- Oil exploitation automation
Technical Specifications
Working Frequency………………………………………………………… 220MHz -222MHz
RF output power……………………………………5W, 10W, 15W, 20W, 25W, 30W optional
Modulation……………………………………………………………………………..…….. 3FSK
Channel spacing………………………………………………..…………12.5KHz,25KHz optional
RX Sensitivity …………………………………………………..…Better than -122dBm(1200bps)
Transmit current………………………………………………………………………≤6.5A(30W)
Receive current………………………………………………………………………………≤100mA
Standby current……………………………………………………………………………≤80mA
RF data rate……………………………………………………1200/2400/4800/9600/19200bps
Port data rate……………………………………………………600/1200/2400/4800/9600/19200/bps
Port data format………………………………………………………………………8E1/8N1/8O1
Power supply…………………………………………………………………………+13.8V DC
Operating Temperature…………………………………………………………………-40℃~85℃
Humidity…………………………………………………………………………10%~90% RH
Dimension………………………………………………………………………160×115×45 mm
Weight………………………………………………………………………………………1000g
Antenna Base…………………………………………………………… LS16-KF connector, female
