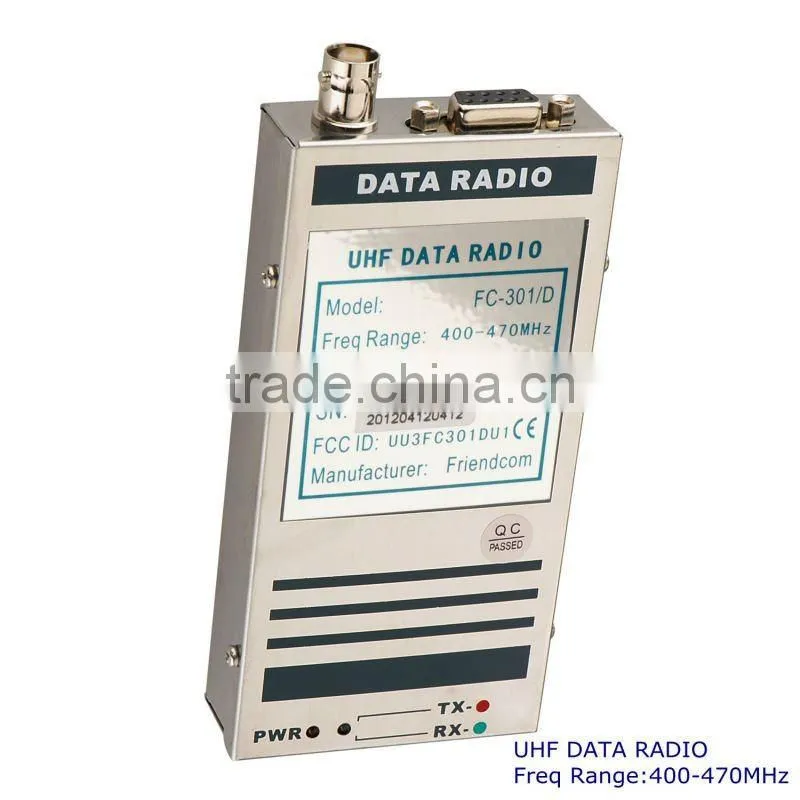

433MHz UHF Radio Modem rs232 with CE and FCC certificate
- 5000 Piece / Pieces per Month
- Credit Card
- Cisco Fiber Switches N9K-C93180YC-FX
- SIERRA AR7586
- Quectel LC29D GPS Beidou Inertial Guidance Module
- telit 4G module LE910C4-NF
- Acrel 4G LORA communication AWT200-1E4S1-4G/LR Intelligent data communication gateway, supports 4-way serial port
- Acrel Wireless communication terminal Supports centralized collection of up to 10,000 points AWT200-1E8SL
Product Details
Place of Origin: | Guangdong, China | Model Number: | FC-RF301DU |
Product Description
Specifications
CE & FCC certificatedFrequency band :400-470MHz, 136-174MHz ,
Channel spacing: 12.5Khz,25Khz optional
Embedded Data modem
The FC-301/D Series of RF Link Modules from Friendcom utilizes the latest technology in its design and manufacturing. Both the UHF and VHF models are PLL (Phase Lock Loop Synthesizer) / microprocessor controlled, and offer one to 5 watts of power with 16 channel capability. Multiple functions including AC audio coupling, walkie-talkie etc. When attached Modem, 301D can transmit data directly. 2400bps Modem board is an optional accessory, if the data transmission is required in the application.
Applications
- Industrial telemetry & wireless remote control
- Gas and oil flow monitoring
- Electricity, water, and gas utilities
- Earthquake, weather, environmental protection and urban lighting control
- Vehicle tracking and asset tracking systems
- Water monitoring, waste water management and irrigation control
- Railway, police, army automation system
- Aerial defense and fire alarm system
- Wireless Paging system
Technical specification
Items | Parameters |
Frequency Band | UHF: 400MHz – 470 MHz VHF: 136MHz – 174 MHz |
Channel Spacing | 25KHz/12.5KHz optional |
RF Output Power | 1W - 5W Programmable |
Modulation type | 16K0F3E, 8K5F3E |
Intermediate Frequency | 45.1MHz & 455KHz |
Number of Channels | 16 |
Frequency Stability | ±2.5ppm |
RX Sensitivity(12dB Sinad) | UHF<-117 dBm, VHF <-118 dBm |
Operation Rating | Intermittent 5:5:90 ( TX: RX: Standby) |
Power Supply | 12.5V DC Nominal Voltage |
TX Current (5W RF Power, 12.5V) | < 1.5A |
Standby (Muted) Current | ≤40mA |
Operating Temperature Range | from –30°C to +65°C |
Dimensions | (120mm)L x (60mm)W x (20mm)H |
Time TX to RX | < 20 ms |
Time RX to TX | < 25 ms |
Weight | 200g |
Antenna Impedance | 50 Ohm |
Antenna Port | BNC connector, female |
