Help CenterWireless AMR Module FC-621GB DEMO Board
Related Products
-
915Mhz rf Transmitter ModuleNegotiableMOQ: 2 Pieces -
AMR Module FC-621 Series for Single-phase MetersNegotiableMOQ: 3 Pieces
-
RF/wireless AMR (Automatic Meter Reading) Mesh Module for Energy Meter RS232/RS485,433MHz/475MHzNegotiableMOQ: 2 Pieces
-
Wireless AMR Module for Electric MeterNegotiableMOQ: 2 Pieces
-
Wireless Transmitter and Receiver 250kbpsNegotiableMOQ: 2 Pieces
Specifications
433MHz / 475Mhz 10-50mWRF AMR mesh module
CFDA based for single-phase energy meter
UART/TTL, RS-485
Shenzhen Friendcom Technology Development Co., Ltd. engaged in Researching & Development of electric power meter-reading, wireless data communication and electric power products for many years. According to current problem of multi-functional power meter data-reading, checking-time and programme; we promote a best solution---Embedded Meter-Reading system which embed a small wireless data module into multi-functional power meter to realize data communication by wireless and two-way transmission.
Design concept:
1. Newest: Using wireless data transmission and computer to realize power meter data-reading, checking-time and programme remotely.
2. Easy-use: Not need go out of the power meter-reading control centre, Just using wireless hand-held receiver, wireless meter-reading car or wireless relay transmission this three way for data reading.
3. Easy-installed: Modular design, small and line-easy, embedded data transceiver directly install in power meter.
4. Non-apply frequency band: Use the free-apply wireless measure frequency in China.
Main Features:
Wireless self organized mesh network, robust and reliable
Strong performance of each node with good penetrating capability
Self adapting frequency hopping to enhance the anti-interference performance of system
Intellectualized installation: plug-and-play, no need to configure on site or configure before installation
High data transmission speed: 19,200bps
Supports DL/T 698 and 645 protocols
No. |
Pin |
Description |
1.2 |
VCC |
Analog power, provided by energy meter, voltage +12V~+15V, output power 1.5W. |
3.4 |
GND |
Ground |
5 |
VDD |
Digital power, provided by energy meter, DC5V, current 50mA |
6 |
DAU_TXD |
Data transmitting pin, 5V TTL level |
7 |
DAU_RXD |
Data receiving pin, 5V TTL level |
8 |
/SET |
Address setting |
9. |
STA |
Unuseful function |
10 |
/RST |
Reset pin, effective for low electric level |
11 |
TEST |
Output pin for testing, don’t connection will be OK |
12 |
EVENTOUT |
Event statues output of energy meter |
Technical Specification
NO. |
Tech index |
Parameter |
1 |
Modulation |
GFSK |
2 |
Frequency |
433.050MHz~434.790MHz |
3 |
Output |
∠10dBm |
4 |
Receiving sensitivity |
-108dBm(10Kbps) |
5 |
Working temperature |
-40°C~+70°C |
6 |
Working humidity |
10%~100% RH |
Typical Application Example
Over 5 million CellMesh™ nodes running in the field of China State Grid and China Southern Power Grid have proved its success.

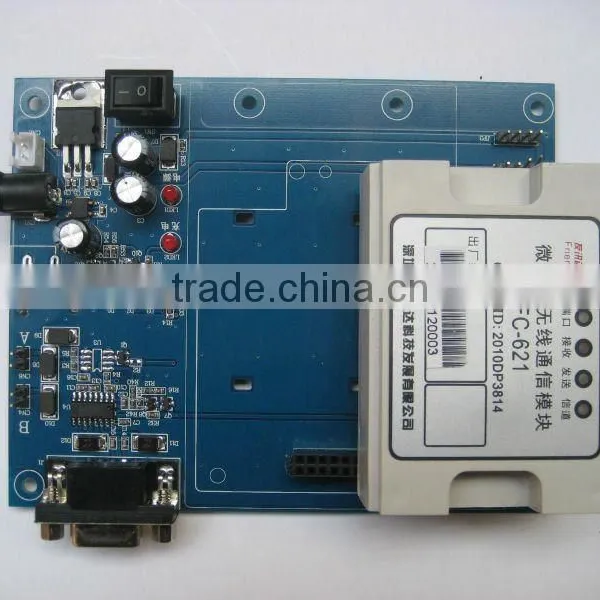

Interface Description
1—ON/OFF, power switch.
2—Power Supply, 12VDC.
3—RS-232 Serial Port , connect to PC
4—JP1, connect to FC-621GB-B1
5—JP2, connect to FC-621GB-J
Send Inquiry to This Supplier
