Product Description:

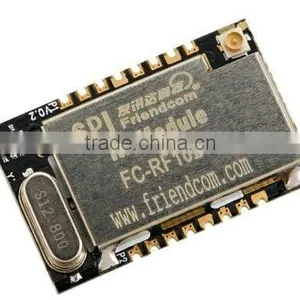

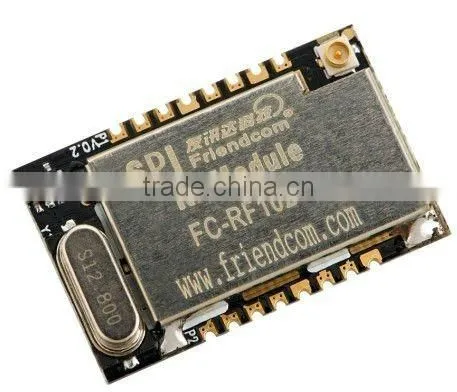

FC-RF1025 RF Transceiver is a compact surface-mounted half-duplex FSK module.It is a low-cost small-size wireless module with SPI and IIC for embedded applications. The RF data rate can reach 100kbps. The module with optional FEC, CRC, Manchester encoding and data whiten can realize stable and reliable data transmission in busy ISM band. The module is completely shielded and designed for operation under the European and US radio regulations for license-free use.
Technical Specifications:
| Items | Descriptions |
| Frequency band | 315MHz / 433MHz /470MHz / 868MHz / 915MHz optional |
| Operation voltage | DVDD: DC3V~3.6V AVDD:DC 5V |
| TX current | ≤100mA |
| RX current | ≤ 22mA |
| Sleep current | 1uA |
| RF output power | maximum 500mW |
| RF data rate | maximum 100kbps |
| Modulation mode | FSK |
| Program interfaces | SPI and IIC digital interface |
| Dimension | 18.6×17.55×5mm(Length X width X height) |
| Operation temperature | -40°C--+85°C |
| Storage temperature | -55 °C,+125 °C |
Applications:
—Intelligent home control system
— Wireless RFID tag
— Wireless sensor
— POS terminal
— Industrial data transmission
— Automatic data collection system
— Wireless remote control
— Wireless AMR for water, gas and hot, electricity and other meters.
