Specifications
connect to PC with USB or RS-232Wireless data collection
Good anti-interference capability
weather proof

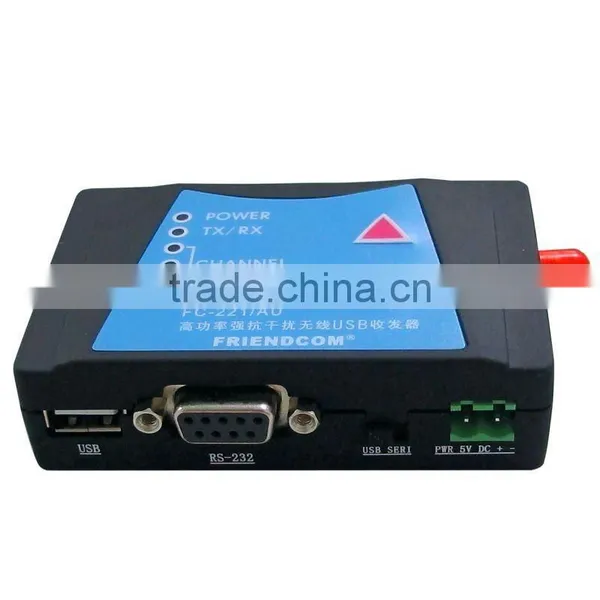

FC-221/AU2 is a wireless narrow-band high speed data transceiver with high-reliability and high-stability. It works in ISM band with standard USB and RS232 interface. User can directly connect it with PC or other terminal system through USB or RS232. USB power supply and external power supply is optional for convenient application. It also can act as a transmitter or receiver to embed into user’s terminal system.
Application :
Wireless AMR system
telemetry system
Wireless data collection
Industrial control and telemetry
Wireless queuing system
wireless weighting scales
Security monitor and alarm
LED sign automatic display
Technical Specification
No. | Item | Parameters | Remark |
1 | Modulation | 3FSK |
|
2 | Work Frequency | ISM band, 433MHz(default), 868Mhz, 915MHz available |
|
3 | RF output power | 500mW |
|
4 | Sensitivity | -120dBm(1200bps) |
|
5 | Transmit current | RS-232≤500mA |
|
6 | Receive current | USB≤65mA , RS-232≤50mA |
|
7 | RF data rate | 1200/2400/4800/9600/19200bps | Set by user |
8 | Port data rate | 600/1200/2400/4800/9600/19200bps | Set by user |
9 | Port Data Format | 8E1/8N1/8O1 |
|
10 | Power supply | 4V~6V (5V typical) | DC |
11 | Operate Temperature | -25°C~60°C |
|
12 | Humidity | 10%~90% RH, |
|
13 | Dimension | 86.7mm×56mm×26mm |
|
14 | Weight | 65g (Not including Antenna) |
|
