Handheld Meter Reader IP65 With Windows CE6.0 OS for 3~5m Reading Range

Handheld Meter Reader IP65 With Windows CE6.0 OS for 3~5m Reading Range thumbnail-1
Handheld Meter Reader IP65 With Windows CE6.0 OS for 3~5m Reading Range photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ChaFon
Model Number:
CF-H5201U
Contact Supplier Request Quote Chat Now
Shenzhen Chafon Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ChaFon
Model Number CF-H5201U

Specifications

1.handheld meter reader
2.UHF ISO18000-6C/EPC GEN2
3. WIFI and Bluetooth communication
4. one year warranty

rfid  handheld meter reader









handheld meter reader IP65 with Windows CE6.0 OS for 3~5m reading range

 Production model explanation:

Model  Parameter
CF-H5201 Barcode
CF-H5201H Barcode,13.56Mhz
CF-H5201U Barcode,UHF



Product Description:



 The CF-H5201 product is an industry-level handheld terminal developed, designed, and produced based on features of different industries by CHAFON Co., Ltd. (hereinafter referred to as the Company). The CF-H5201 series adopt ergonomic design and is compact and flexible, shock-proof, and drop-proof. The CF-H5201 series can work in the standby mode for a long time. In addition, the CF-H5201 series adopt the dual power supply mode and support the conversation function.



Main Functions and Features

1. Compact, portable, and durable

2. Long working time: The product can work for more than eight hours consecutively.

3. Easy charging: The product uses a USB interface for charging without a specialized data line. You can charge the device anytime anywhere as long as there is a USB interface.

4. Dual power supply mode: When the master battery is used up and the slave battery is fully charged, the product can work in the standby mode for six hours to prevent data loss caused by unexpected power failure.

5.xtensible hardware module

A camera with 3 million pixels

GPS positioning

High frequency/ultrahigh frequency RFID read/write

6. Built-in one-dimension scanning module.

7. Communication mode: The product supports Wi-Fi communication, GPRS/GSM communication, and Bluetooth communication.

8. Open design: The product provides a software interface that can be used to develop application functions.

9. The product is an industry-level device that is drop-proof, dustproof and high-/low-temperature resistant.

10. High-speed and high-capacity data processing: The product provides a SamSung Cortex-A8 1GHz CPU processing speed, 512MB built-in storage, and 512mory and supports the Micro SD/TF card with a maximum capacity of 32GB

11. The product provides a 3.5in. color touch screen.

12. The product supports Chinese handwriting input.

Detailed Parameter

 Model

CF-H5201

Ergonomic design

maximum size: 190mm*75mm*30mm

Handle: 90mm*60mm*25mm

Weight

350g(with batteries)

Hard keyboard

alphanumeric keyboard

Soft keyboard

English, Pinyin, and Chinese handwriting

Operating System

Microsoft Windows CE 6.0 OS (Multi-lingual)

CPU

SamSung Cortex-A8 1GHz CPU

Screen

3.5 inch TFT-LCD QVGA (240 x 320) or VGA (480 * 640) color touch screen

Memory

ROM

512MB Nand Flash

RAM

512MB Mobile DDR

One dimension-al laser



Scanning speed

100±20 per second (bidirectional)

Readable bar codes



Code 39; Codabar; Code 128; Discrete 2 of 5; IATA 2 of 5; Interleaved 2 of 5; Code 93;  UPC A; UPC E0; EAN 8; EAN 13; MSI; EAN 128; UPC E1; Trioptic Code 39; Bookland EAN;  Coupon Code; RSS-Limited; RSS-14;  RSS-Expanded

2DCMOS

Readable bar codes



1D Symbologies:UPC/EAN, Bookland EAN, UCC Coupon Code, ESSN EAN, CODE 39, CODE 128, GS1-128, ISBT 128, Trioptic Code 39, CODABAR, MSI, Interleaved 2/5, Discrete 2/5, Chinese2/5 ,  Korean3/5, Matrix 2/5, CODE 32,CODE 93, CODE 11, Inverse 1D, GS1 DataBar, Composite Codes
2D Symbologies:PDF417,MicroPDF417,Data Matrix, Data Matrix Inverse, MaxiCode, QR Code, Aztec, Aztec Inverse
Postal Codes:U.S. Postnet, U.S. Planet, U.K. Postal, Japan Postal, Australian Postal, Netherlands KIX Code,  USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal

Wi-Fi WLAN (standard configuration)

The CF-H5201 product supports communication on the 802.11b/g Wi-Fi WLAN with a rate of
54 Mbit/s, which meets the requirements of the CISCO CCX2, 3 security standards and supports  CISCO AP and security regulations.

WCDMA

Work frequency

Band

UMTS2100/900 MHz
UMTS1900/850 MHz
GSM850/900/1800/1900 MHz

Data service

GSM CS: UL 9.6kbps/DL 9.6kbps
GPRS/EDGE: Multi-slot Class 12, Class B
WCDMA CS: UL 64kbps/DL 64kbps
WCDMA PS: UL 384kbps/DL 384kbps
HSDPA:DL 3.6Mbps

CDMA 2000

Work frequency

Band

CDMA2000 1x, CDMA2000 EV-DO Rev 0, CDMA2000 EV-DO Rev A
Supports BC0 (800MHz band), BC1 (1900MHz band)

Data service

CDMA2000 1X: UL/DL: 153.6 kbps
CDMA2000 1X/EVDO Rev.0: UL 153.6 kbps DL 2.4 Mbps
CDMA2000 1X/EVDO Rev A: UL 1.8 Mbps DL 3.1 Mbps

Camera (extension)

Camera with 3 million/5 million pixels and fill light

GPS

48 channels; positioning accuracy: less than 1 m;

RFID

LF:ISO11784/11785
HF:ISO15693,ISO14443A/B,SRI513/SRI4K
UHF:ISO180006B(EPC C1 Gen2),ISO18000-6C

Bluetooth

Bluetooth V2.1+EDR

Audio

The speaker x1,Microphone x1, Receiver x1

Master battery

3.7 V 3000 mAh rechargeable lithium battery

Slave battery

150 mAh, providing power for
six hours

RTC battery

Maintain equipment clock is not lost

Operating temperature

–10°C ~ +50°C

Storage temperature

–20°C ~ +60°C

Operating humidity

Relative humidity: 5–95%
(no condensation)

Endurable height for dropping

The CF-H5201 product can endure multiple drops to a smooth concrete floor from a height of
4 inches (1.2 m).

Extension

Micro SD/TF slot (a maximum of 32 GB)

Physical interface

Mini USB x 1, 3.5mm audio interface x 1

Charging seat

At the same time to two battery charging

Printer

Can connect all Bluetooth support agreements serial printer

other attachments

Power adapter , Data line

Ingress protection

IP65

Certification

CCC, CE, FCC

Electrical safety standard

UL60950,CSA C22.2 No.6050,EN60950/IEC950

Laser safety standards

IEC2 /FDA class II, conforms to the IEC60825-/EN60825-1 standard



Please Check detailed specifictaion from this link: /productdetails.aspx?pid=475

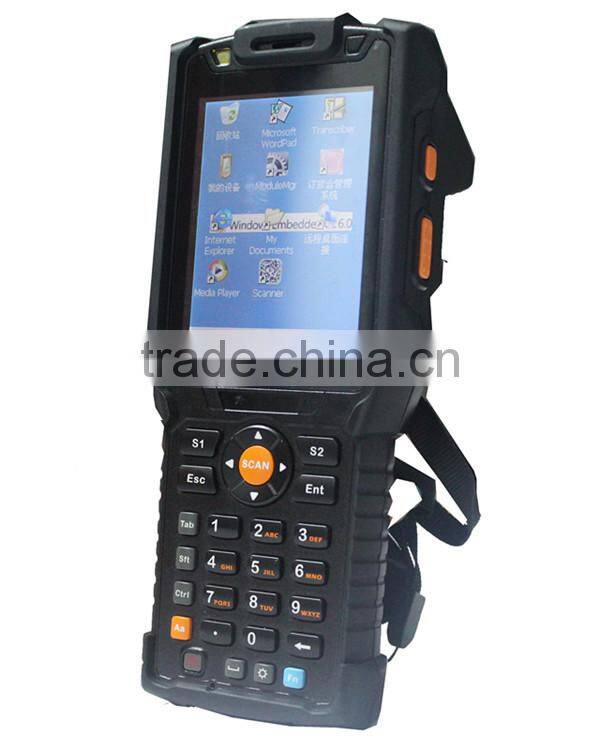

Product Pictures:

handheld meter reader IP65 with Windows CE6.0 OS for 3~5m reading range



Application picture:

handheld meter reader IP65 with Windows CE6.0 OS for 3~5m reading range
