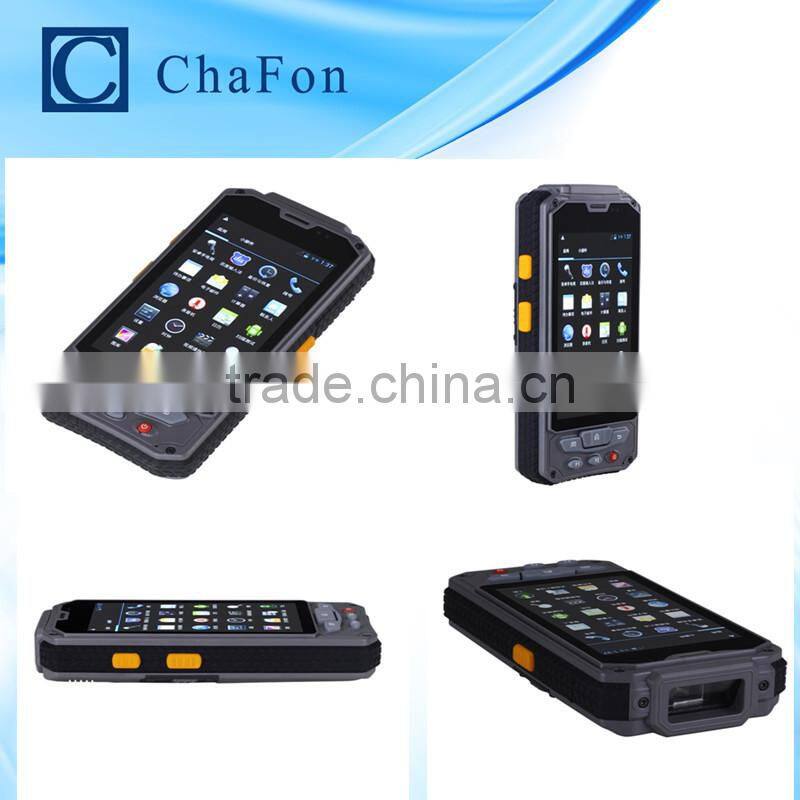

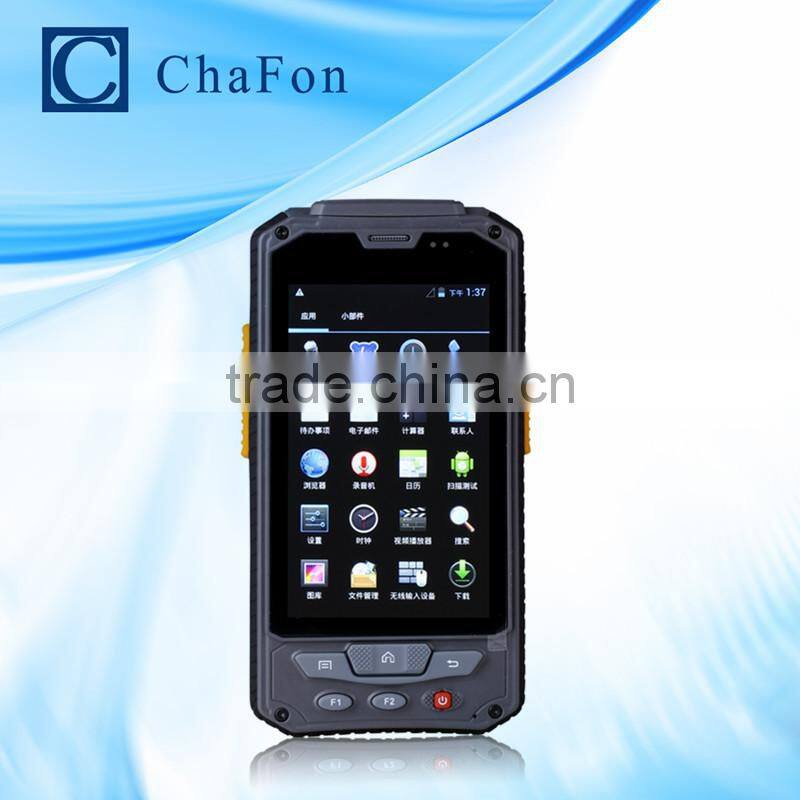

IP65 android handset rfid reader with GPRS/WiFi/Bluetooth/3G/GPS/camera function with 1d/2d barcode and fingerprint for option
CF-H901 is a IP65 industrial-grade handheld reader, support Android 4.2 OS,with Cortex A9 1.2GHz processor,include GPRS,WCDMA,WIFI,Bluetooth etc function,can add RFID function,include 125KHz,13.56MHz,UHF,2.45G for option.
Features | ||||||||||||||||||||||||
The processor | Cortex A9 1.2GHZ The processor | |||||||||||||||||||||||
Memory capacity | ROM:EMMC 32Gb RAM: LPDDR2 8Gb | |||||||||||||||||||||||
The operating system | Android 4.22 | |||||||||||||||||||||||
Wireless communications | GPRS | GPRS, EDGE , 4-band 900/1800,850/1900 | ||||||||||||||||||||||
WCDMA | band 850/2100,Cat.8 HSDPA Cat.6 HSUPA | |||||||||||||||||||||||
WIFI | Conform to the IEEE 802.11b/g | |||||||||||||||||||||||
Bluetooth | Conform to the Bluetooth 4.0 | |||||||||||||||||||||||
Display | 4.3 inch IPS display, The resolution of the 480*800, Gabo Lingual perspective, the sun is visible | |||||||||||||||||||||||
Touch screen | Support more capacitive touch | |||||||||||||||||||||||
Indicator light | Network indicator light, charge indicator | |||||||||||||||||||||||
audio | Support the speech | |||||||||||||||||||||||
Micro SD card | Support 32 gb MICRO SD card | |||||||||||||||||||||||
Data security | Product is the data security protection, in a completely off electricity (remove the battery and the power converter), data is not lost | |||||||||||||||||||||||
GPS indicators (Optional) | Channel: channel 12 Receive types: L1, C/A code and carrier phase smoothing Heavy capture: < 1 s The latest ASIC chip; A squadron of patent algorithms; EVEREST multipath suppression technology Error range: < = 10 meters | |||||||||||||||||||||||
Navigation map | Support navione, baidu, Google, gold and other navigation map | |||||||||||||||||||||||
The input method | Full-screen handwriting, half screen handwriting, strokes and pinyin, Numbers, letters, symbols | |||||||||||||||||||||||
Physical interface | High-speed USB2.0 interface equipment end, 3.5 stick related plug-in interface | |||||||||||||||||||||||
camera(Optional) | The rear 500 w megapixel camera with flash | |||||||||||||||||||||||
The flashlight | Low power consumption LED lights lighting, emergency use | |||||||||||||||||||||||
The fingerprint module(Optional) | Sensor types: inductive, image size: 256 * 288, image resolution: 500 dpi | |||||||||||||||||||||||
Registration time < 3 seconds, compare the time < < 0.1 s, than in time of 0.5 seconds (100) | ||||||||||||||||||||||||
Boomed from < 0.1%, recognize false rate < 0.001%, fingerprint capacity: 512 | ||||||||||||||||||||||||
A dimensional barcode(MOTO-SE655)(Optional) | ||||||||||||||||||||||||
Read code system | Can read all kinds of main one-dimensional bar code: Code 39,Code 93,Code 128,Codebar,EAN-13,EAN-8,UPC-A,UPC-E,ITF 14,UCC/EAN-128,ITF 25,Matrix 25,EAN-128,ISBN | |||||||||||||||||||||||
Read distance | 0 cm~50 cm | |||||||||||||||||||||||
Read rate | First read rate of 99% or more, the error rate of 0.01% or less, false reject rate is 0.01% or less | |||||||||||||||||||||||
Two dimensional barcode(Optional) | ||||||||||||||||||||||||
Moto-SE4500 | Hardware decoding, the decoding speed and error rate of 0.01% or less | |||||||||||||||||||||||
Honeywell-5180 | Hardware decoding, the decoding speed and error rate of 0.01% or less | |||||||||||||||||||||||
RFID (Optional) | ||||||||||||||||||||||||
Ultra high frequency | 0~1m distance for EPC C1 GEN2 / ISO18000-6 - c protocol of 900 MHZ tag read operation (associated with tags and antenna) | |||||||||||||||||||||||
High frequency | 0 ~ 7 cm range for ISO15693, ISO14443 double deal 13.56 MHz tags for reading and writing (associated with tags and antenna) | |||||||||||||||||||||||
Low frequency | 125 K / 134.2 K animal ear tag | |||||||||||||||||||||||
PSAM | Support two PSAM card | |||||||||||||||||||||||
High frequency (CPU card read) | Support the CPU card read and write, used with PSAM | |||||||||||||||||||||||
Active in close communication(Optional Customers need to provide module) | ||||||||||||||||||||||||
Active 2.45 G | Distance is 200 m, 200 m label can be read all at once | |||||||||||||||||||||||
433M | Read more than 200 m distance, distance is adjustable | |||||||||||||||||||||||
Battery performance | ||||||||||||||||||||||||
The battery | 4100 mah lithium polymer battery, standby time: more than 150 hours, working time: more than 8 hours, ac adapter charging (1 a) | |||||||||||||||||||||||
The battery standby time | After a full charge, the wireless communication function on standby, after 360 hours, can run normally | |||||||||||||||||||||||
Battery charging time | Charging time < 4.5 hours | |||||||||||||||||||||||
Charging time | More than 8 hours (a charge) | |||||||||||||||||||||||
| ||||||||||||||||||||||||
1,Our reader come with completed English SDK,demo software,user manual and source code,and these documents will help you develop the software for your application.
2.About the RFID handheld reader,we also have other model,much more detailed information,please come to below link to check with our catalogue:
/product.aspx?cid=290
Product picture
