Iso15693 Handheld Bluetooth Rfid Reader With WIFI/GPRS/Bluetooth/3G/WCDMA

The processor

Cortex A9 1.2GHZ

Memory capacity

ROM:EMMC 32Gb  RAM: LPDDR2 8Gb

The operating system

Android 4.22

Wireless communications

GPRS

GPRS, EDGE , 4-band 900/1800,850/1900

WCDMA

band 850/2100,Cat.8 HSDPA Cat.6 HSUPA

WIFI

Conform to the IEEE 802.11b/g

Bluetooth

Conform to the Bluetooth 4.0

Display

4.3inch IPS display, The resolution of the 480*800, Gabo Lingual perspective, the sun is visible

Touch screen

Support more capacitive touch

Indicator light

Network indicator light, charge indicator

audio

Support the speech

Micro SD card

Support 32 gb MICRO SD card

Data security

Product is the data security protection, in a completely off electricity (remove the battery and the power converter), data is not lost

Physical interface

High-speed USB2.0 interface equipment end, 3.5 stick related plug-in interface

GPS indicators

(Optional)

Channel: channel 12

Receive types: L1, C/A code and carrier phase smoothing

Heavy capture: < 1 s

The latest ASIC chip; A squadron of patent algorithms; EVEREST multipath suppression technology

Error range: < = 10 meters

  A dimensional barcode(MOTO-SE655)(Optional)

Read code system

Can read all kinds of main one-dimensional bar code: Code 39,Code 93,Code 128,Codebar,EAN-13,EAN-8,UPC-A,UPC-E,ITF 14,UCC/EAN-128,ITF 25,Matrix 25,EAN-128,ISBN

Read distance

0 cm~50 cm

Read rate

First read rate of 99% or more, the error rate of 0.01% or less, false reject rate is 0.01% or less

   Two dimensional barcode(Optional)

Moto-SE4500

Hardware decoding, the decoding speed and error rate of 0.01% or less

Honeywell-5180

Hardware decoding, the decoding speed and error rate of 0.01% or less

  RFID   (Optional)

Ultra high frequency

0~1m distance for EPC C1 GEN2 / ISO18000-6 - c protocol of 900 MHZ tag read operation (associated with tags and antenna)

High frequency

0 ~ 7 cm range for ISO15693, ISO14443 double deal 13.56 MHz tags for reading and writing (associated with tags and antenna)

Low frequency

125 K / 134.2 K animal ear tag

PSAM

Support two PSAM card

High frequency (CPU card read)

Support the CPU card read and write, used with PSAM

  Active in close communication(Optional Customers need to provide module)

Active 2.45 G

Distance is 200 m, 200 m label can be read all at once

433M

Read more than 200 m distance, distance is adjustable

  Battery performance

The battery

4100 mah lithium polymer battery, standby time: more than 150 hours, working time: more than 8 hours, ac adapter charging (1 a)

The battery standby time

After a full charge, the wireless communication function on standby, after 360 hours, can run normally

Battery charging time

Charging time < 4.5 hours

Charging time

More than 8 hours (a charge)

Protection grade

IP65

The fuselage size

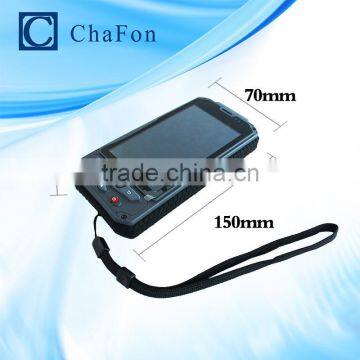

148 (length) x 77.5 (width) x 27 (thick) plus or minus 2 mm

Standard

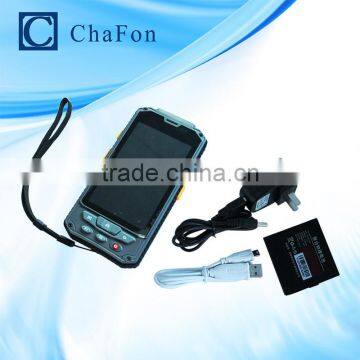

1 1 lithium battery, charger, USB data line 1.
