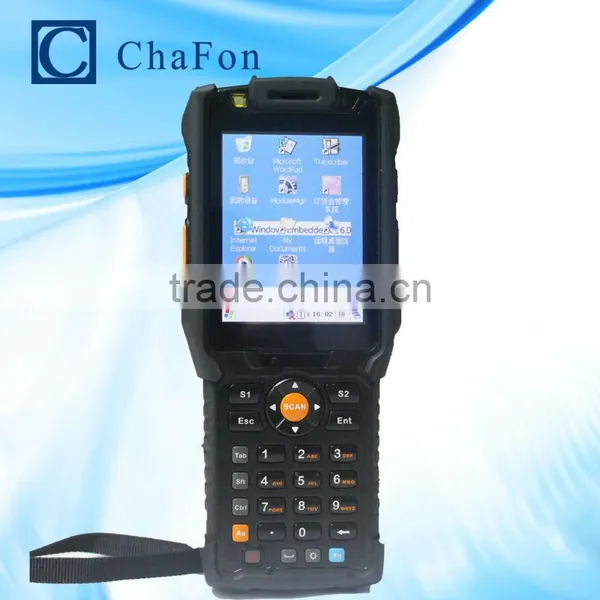

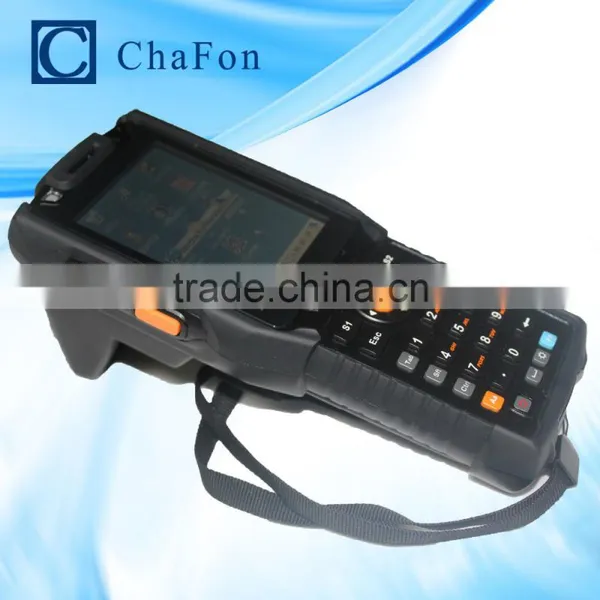

hf handheld rfid reader and writer can work under Windows CE 6.0 OS with Bluetooth/WiFi/Barcode function provide user manual

Model

parameter

CF-H5201

Barcode

CF-H5201H

Barcode, 13.56MHz

CF-H5201U

Barcode, UHF

 Model

CF-H5201

Ergonomic design

maximum size: 190mm*75mm*30mm

Handle: 90mm*60mm*25mm

Weight

350g(with batteries)

Hard keyboard

alphanumeric keyboard

Soft keyboard

English, Pinyin, and Chinese handwriting

Operating System

Microsoft Windows CE 6.0 OS (Multi-lingual)

CPU

SamSung Cortex-A8 1GHz CPU

Screen

3.5 inch TFT-LCD QVGA (240 x 320) or VGA (480 * 640) color touch screen

Memory

ROM

512MB Nand Flash

RAM

512MB Mobile DDR

One dimension-al laser

Scanning speed

100±20 per second (bidirectional)

Readable bar codes

Code 39; Codabar; Code 128; Discrete 2 of 5; IATA 2 of 5; Interleaved 2 of 5; Code 93; UPC A; UPC E0; EAN 8; EAN 13; MSI; EAN 128; UPC E1; Trioptic Code 39; Bookland EAN; Coupon Code; RSS-Limited; RSS-14; RSS-Expanded

2DCMOS

Readable bar codes

1D Symbologies:UPC/EAN, Bookland EAN, UCC Coupon Code, ESSN EAN, CODE 39, CODE 128, GS1-128, ISBT 128, Trioptic Code 39, CODABAR, MSI, Interleaved 2/5, Discrete 2/5, Chinese2/5 , Korean3/5, Matrix 2/5, CODE 32,CODE 93, CODE 11, Inverse 1D, GS1 DataBar, Composite Codes
2D Symbologies:PDF417,MicroPDF417,Data Matrix, Data Matrix Inverse, MaxiCode, QR Code, Aztec, Aztec Inverse
Postal Codes:U.S. Postnet, U.S. Planet, U.K. Postal, Japan Postal, Australian Postal, Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal

Wi-Fi WLAN (standard configuration)

The CF-H5201 product supports communication on the 802.11b/g Wi-Fi WLAN with a rate of
54 Mbit/s, which meets the requirements of the CISCO CCX2, 3 security standards and supports CISCO AP and security regulations.

WCDMA

Work frequency

Band

UMTS2100/900 MHz

UMTS1900/850 MHz

GSM850/900/1800/1900 MHz

Data service

GSM CS: UL 9.6kbps/DL 9.6kbps
GPRS/EDGE: Multi-slot Class 12, Class B
WCDMA CS: UL 64kbps/DL 64kbps
WCDMA PS: UL 384kbps/DL 384kbps
HSDPA:DL 3.6Mbps

CDMA 2000

Work frequency

Band

CDMA2000 1x, CDMA2000 EV-DO Rev 0, CDMA2000 EV-DO Rev A
Supports BC0 (800MHz band), BC1 (1900MHz band)

Data service

CDMA2000 1X: UL/DL: 153.6 kbps
CDMA2000 1X/EVDO Rev.0: UL 153.6 kbps DL 2.4 Mbps
CDMA2000 1X/EVDO Rev A: UL 1.8 Mbps DL 3.1 Mbps

Camera (extension)

Camera with 3 million/5 million pixels and fill light

GPS

48 channels; positioning accuracy: less than 1 m;

RFID

LF:ISO11784/11785
HF:ISO15693,ISO14443A/B,SRI513/SRI4K
UHF:ISO180006C(EPC C1 Gen2)

Bluetooth

Bluetooth V2.1+EDR

Audio

The speaker x1,Microphone x1, Receiver x1

Master battery

3.7 V 3000 mAh rechargeable lithium battery

Slave battery

150 mAh, providing power for
six hours

RTC battery

Maintain equipment clock is not lost

Operating temperature

–10°C ~ +50°C

Storage temperature

–20°C ~ +60°C

Operating humidity

Relative humidity: 5–95%
(no condensation)

Endurable height for dropping

The CF-H5201 product can endure multiple drops to a smooth concrete floor from a height of
4 inches (1.2 m).

Extension

Micro SD/TF slot (a maximum of 32 GB)

Physical interface

Mini USB x 1, 3.5mm audio interface x 1

Charging seat

At the same time to two battery charging

Printer

Can connect all Bluetooth support agreements serial printer

other attachments

Power adapter , Data line

Ingress protection

IP65

Certification

CCC, CE, FCC

Electrical safety standard

UL60950,CSA C22.2 No.6050,EN60950/IEC950

Laser safety standards

IEC2 /FDA class II, conforms to the IEC60825-/EN60825-1 standard
