hf desktp rfid smart card reader&writer
Product description
CF-RH330 series desktop readers are smart modules without touching based on international standard agreement ISO14443A, ISO14443B and ISO15693.
CF-RH330 are equipped with high capability chip, processor, security and electric monitor. The reader can communicate with PC by means of interface.
CF-RH330 are of high capability, anti-jamming, small size and good quality, which brings more convenience.
Product mode explanation
Model |
Standard |
interface |
color |
CF-RH331 |
IS014443A |
U(USB)/R(RS232) |
B(black)/W(white) |
CF-RH332 |
IS014443A/B |
U(USB)/R(RS232) |
B(black)/W(white) |
CF-RH333 |
ISO15693 |
U(USB)/R(RS232) |
B(black)/W(white) |
CF-RH334 |
ISO/IEC14443A/B,ISO15693 |
U(USB)/R(RS232) |
B(black)/W(white) |
Capability specifications
Name |
HF Reader&Write |
Dimension |
110x80x25mm |
Standard |
ISO14443A/B,ISO15693 |
Support |
Mif S70;Mif UltraLight;Mif S50; Mif Pro; AT88RF020;66CL160S; SR176; SRIX4K(TYPE-B); I-Code2; TI RFid Tag-it HF-I ,EM4135,EM4034 etc. |
Frequency |
13.56MHz |
Speed |
106kbit/s |
Baud Rate |
9600-115200 bit/s |
Power Supply |
+5V DC |
Consumed Current |
< 80mA |
Operating Distance |
50--70mm |
Interface |
RS232;USB |
Status Indication |
1pcs LED;1pcd buzzer |
Service Temperature |
-10°C ~ +70°C |
Store Temperature |
-20°C ~ +80°C |
Product application
Widely used in access control, attendance, conference attendance, medical insurance, hotels, highways, petrol stations, parking, public transportation, such as toll collection system.
Other support
/productdetails.aspx?pid=364

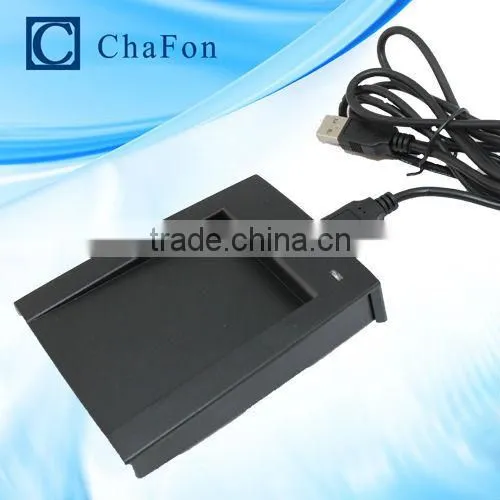

Product picture
