Specifications
1.java rfid card reader2.Protocol:ISO14443A/B,ISO15693
3.Interface:RS232/USB
4.SDK,demo software
5.104x68x10mm
java rfid card reader (program language provide:Linux,Java,C#,Delphi,VB,VC SDK,with sample cards)
Product description
CF-RH320 series desktop readers are smart modules without touching based on international standard agreement ISO14443A/B,ISO15693
CF-RH320 are equipped with high capability chip, processor, security and electric monitor. The reader can communicate with PC by means of interface.
CF-RH320 are of high capability, anti-jamming, small size and good quality, which brings more convenience.
Product mode explanation
Model |
standard |
interface |
color |
CF-RH321 |
IS014443A |
U(USB)/R(RS232) |
B(black)/W(white) |
CF-RH322 |
IS014443A/B |
U(USB)/R(RS232) |
B(black)/W(white) |
CF-RH323 |
ISO15693 |
U(USB)/R(RS232) |
B(black)/W(white) |
CF-RH324 |
ISO/IEC14443A/B,ISO15693 |
U(USB)/R(RS232) |
B(black)/W(white) |
Parameter
Name |
HF Reader&write |
Dimension |
104x68x10mm |
Standard |
ISO14443A |
Support |
M1K S70; M1K UltraLight; M1K S50 |
Frequency |
13.56MHz |
speed |
106kbit/s |
Baud Rate |
9600 bit/s |
Power Supply |
+5V DC |
Consumed Current |
< 80Ma |
Operating Distance |
50--70mm |
Interface |
USB/RS232 |
Status Indication |
1pcs LED;1pcd buzzer |
Service Temperature |
-10°C ~ +70°C |
Store Temperature |
-20°C ~ +80°C |
Product application
Widely used in access control, attendance, conference attendance, medical insurance, hotels, highways, petrol stations, parking, public transportation, such as toll collection system.
Other support
1,Provide complete English SDK,demo software,source code and user manual.
2,Provide OEM service
More information about this product , please visit this link:
/productdetails.aspx?pid=365
Program language:

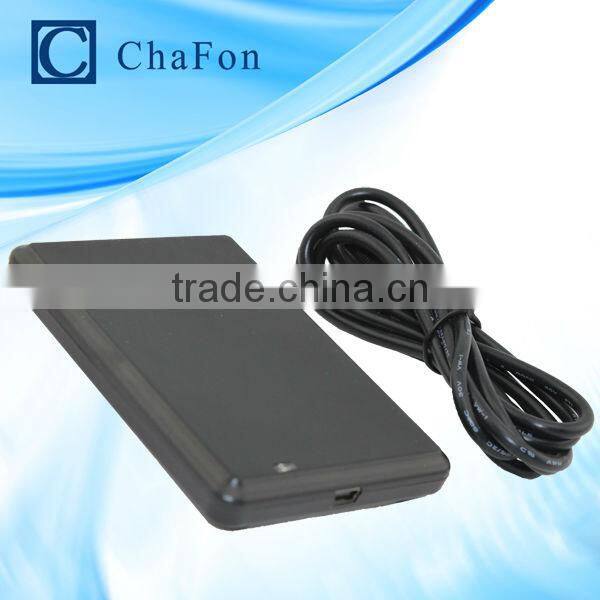

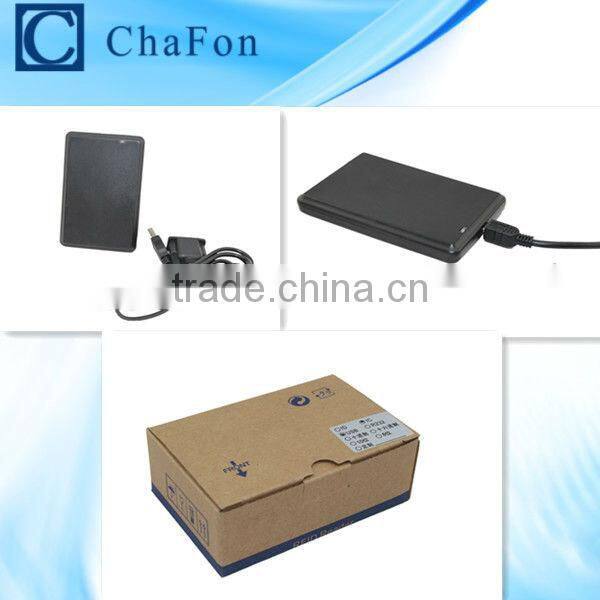

Product picture:
